OPERATOR INSTRUCTIONS
10

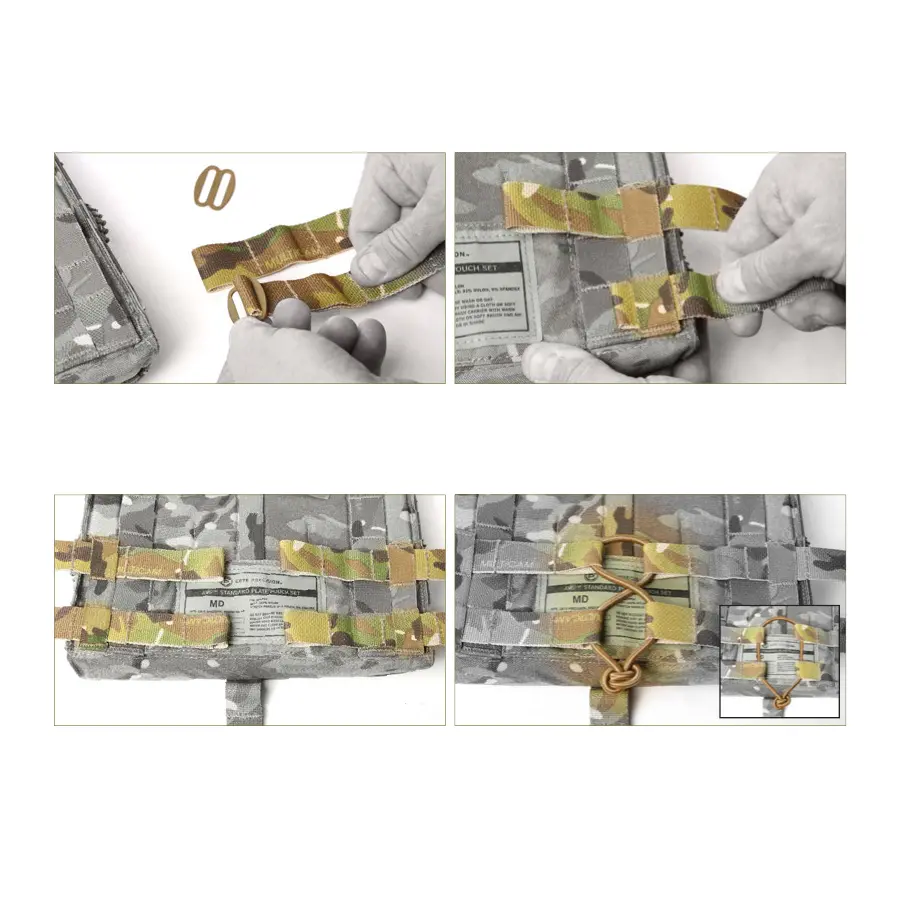

5 Remove tri-glide buckles from both rows of cummerbund (2-band
shown).
7 Continue inserting other cummerbund rows. Distance of inserted
cummerbund webbing will determine the girth adjustment of the
cummerbund when wrapped around the body.
6 Flip rear platebag upwards (label up). Route cummerbund rows through
rear vertical webbing slots found on interior of rear platebag near the
bottom left and ride sides. Ensure that hook panels on ends of both
cummerbunds are facing upwards.
8 Complete conguration by routing provided elastic cord through the
cummerbund in a zig-zag fashion. The cord may be routed through any
set of cummerbund rows for different size adjustments. Tie cord in a knot
to complete conguration. Alternatively, use the longer elastic cord to
create a ‘O’ loop through the cummerbund for a wider conguration.
