OPERATOR INSTRUCTIONS
9

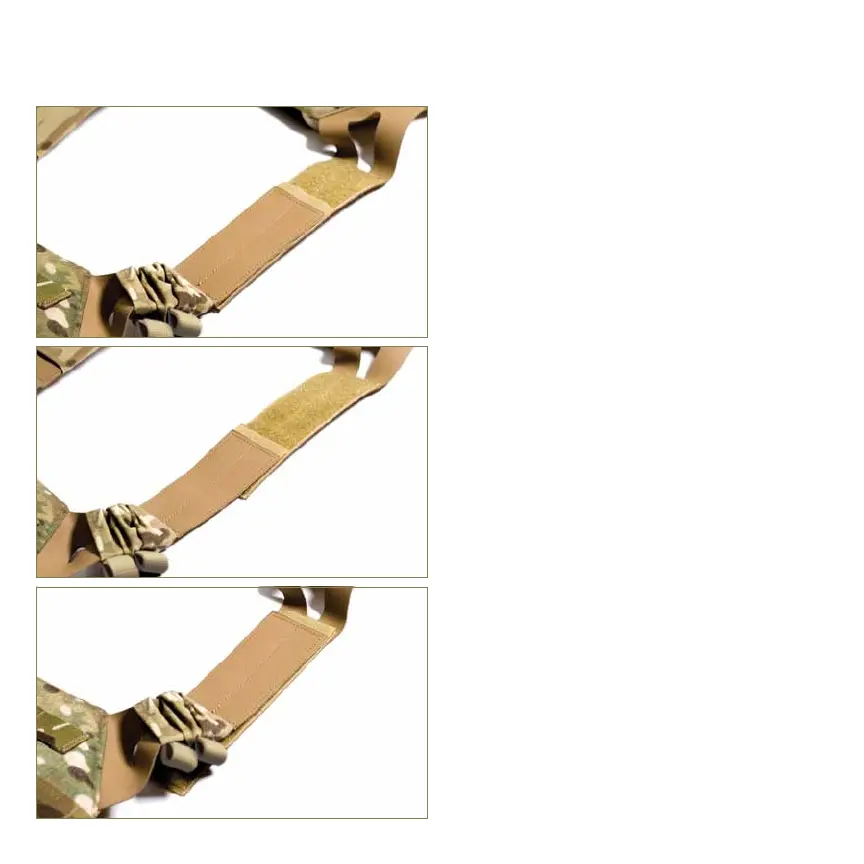

1. Front and back ballistic plate vertical position (ride height) is adjusted
by changing the length of the shoulder straps where the front and back
carriers connect. To change setting, begin by rolling back stretch fabric of
shoulder cover as shown.
2. For a lower ride height, detach hook and loop panels of straps and
reattach them so they are farther apart. Repeat for other shoulder strap.
Try on vest to check for proper plate height and vest comfort. Once
satisfied with the adjustment, replace shoulder cover.
3. For a higher ride height, detach hook and loop panels of straps and
reattach them so that they are closer together. Repeat for other shoulder
strap. Try on vest to check for proper plate height and vest comfort. Once
satisfied with the adjustment, replace shoulder cover.
ADJUSTING RIDE HEIGHT (SHOULDER STRAPS)
