OPERATOR INSTRUCTIONS
5
INSTALLING + ADJUSTING SKELETAL™ CUMMERBUND

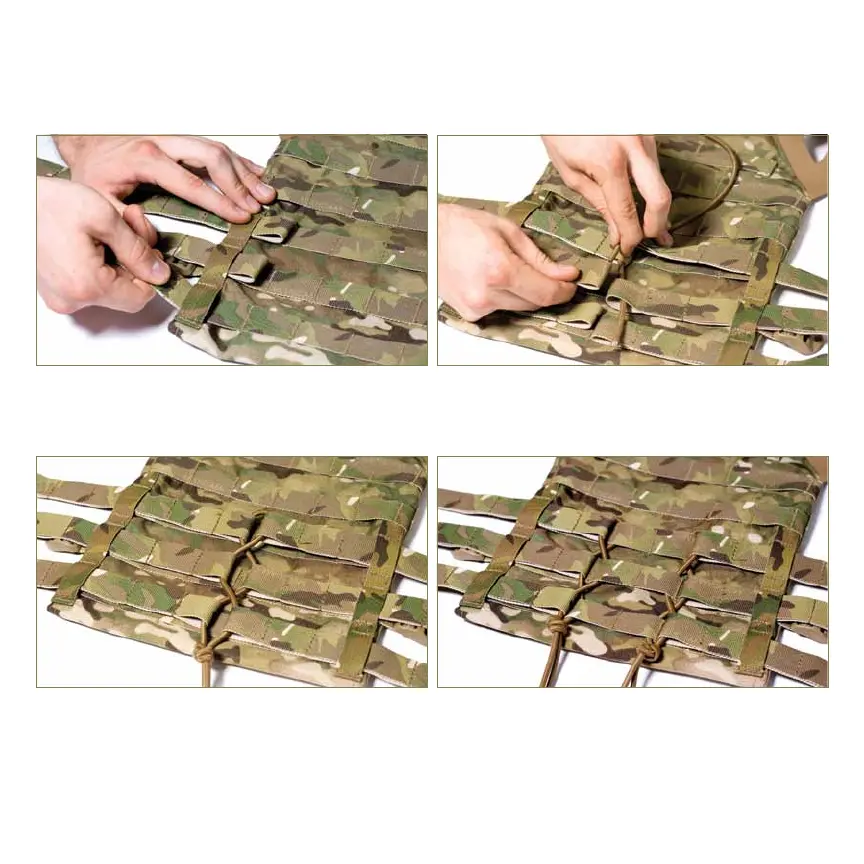

1. Lay rear carrier flat as shown. Insert cummerbund ends through three
openings near the side edges of the carrier. Ensure that loop panels of
cummerbund are facing up. Repeat for other side.
3A. Tie a knot in the elastic cord to secure the weave. The extra slack of
the elastic cord can be tightened or loosened to accommodate personal
preference. Pull cummerbunds apart to ensure the weave and knot are
secure.
2. Using included elastic cord, weave together the ends of the Skeletal™
cummerbunds from the top to the bottom in a zigzag pattern.
3B. If additional cummerbund size accommodation is required, the
cummerbund ends can be tied to the MOLLE panel as pictured in a
similar zigzag weaving pattern. A second elastic cord is included for this
configuration.
