CONNECTING THE DRAFT TOWER (CBR-V2) TO CR-UC2
The CBR-V2 draft tower contains two water lines plumbed to the faucets, one for carbonated
sparkling water the other for still water. Connect these lines to the labeled braided lines from
the trunk line, which extends from the CR-UC2 unit. The CBR-V2 also has two re-circ line which
should be connected to the clear re-circ lines also from the trunk line. Care should be taken to
wrap any exposed lines with foam tape to insulate them.

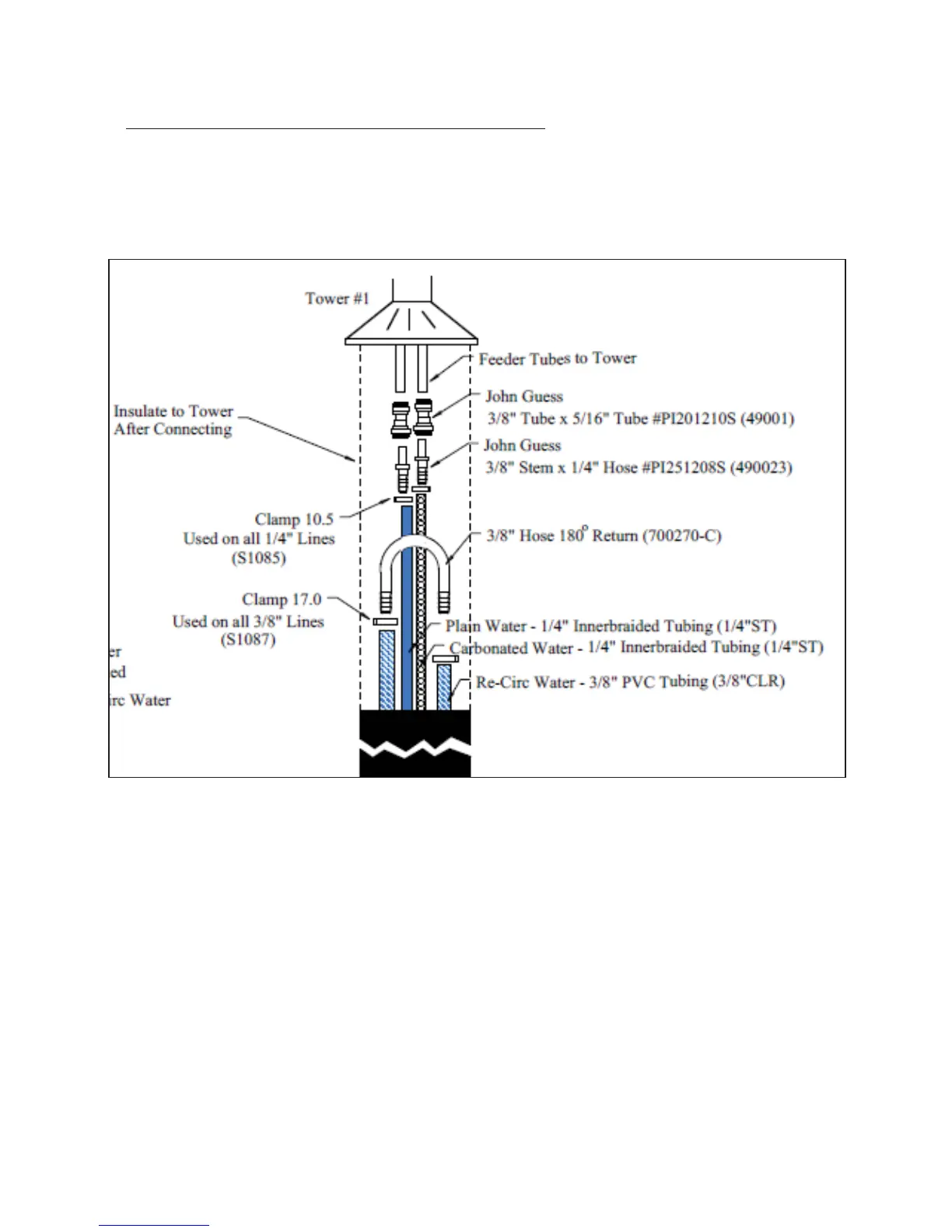

SINGLE CBR-V2 TOWER INSTALL DETAIL
27
