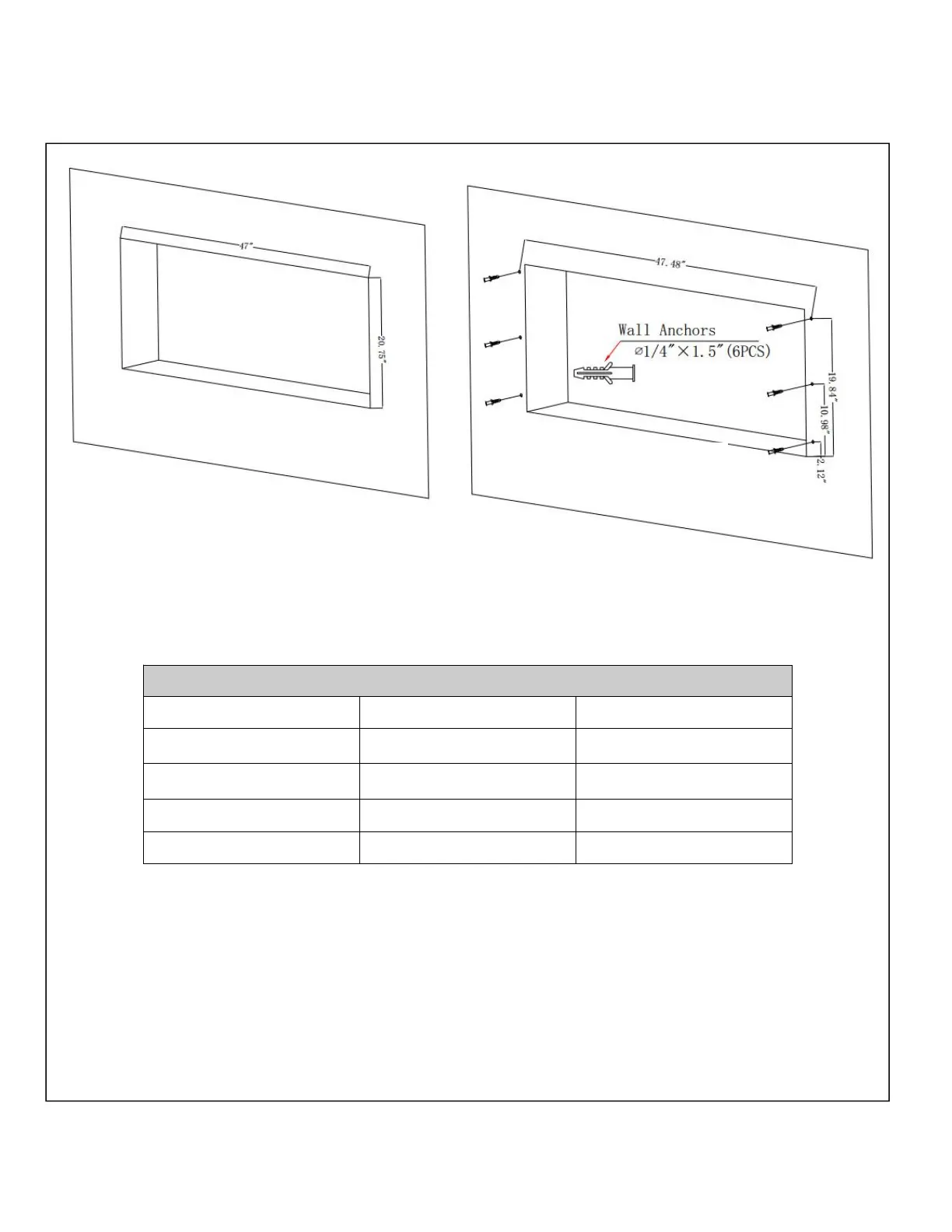

STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chart
Figure ( A )
Framing Hole Size
Model Number
W
H
BG-36B
33" (83.82CM)
20.75" (52.71CM)
BG-50B
47" (119.38CM)
20.75" (52.71CM)
BG-60B
47" (119.38CM)
20.75" (52.71CM)
BG-72B
69" (175.26CM)
20.75" (52.71CM)
STEP B. Fix the three wall anchors in each side of the fireplace box according to the
dimensions showed on the drawing. Figure (B)
RECESSED TO WALL INSTALLATION
Hole Size
( A )
( B )
W
H
