MODULE |
4A

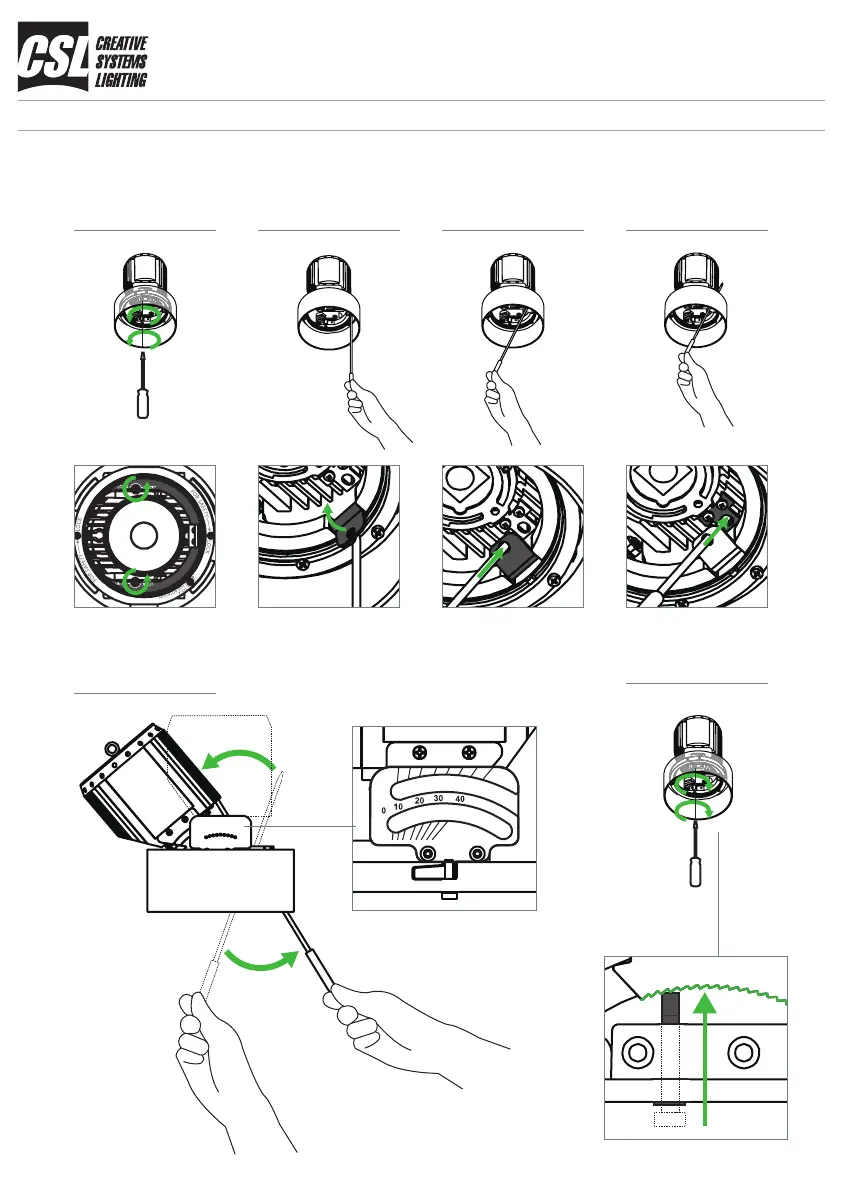

STEP 4 - TILT ANGLE ADJUSTMENT 0
° ~ 40 °
INSTA LL ATION GU I D E
ACROBAT
Step 4-1 :
Release this two Screws
of Lock for Tilt.
Step 4-6 :
Tight two Screws of Lock
for Tilt.
Step 4-2 :
Insert screwdriver through
the first clip
Step 4-3 :
Push the screwdriver to the
heat sink
Step 4-4:
Insert screwdriver through the
second clip
Step 4-5 :
Use the Screwdriver and
adjust tilt angle, Scales on
the two side of module. (4A)
