3A

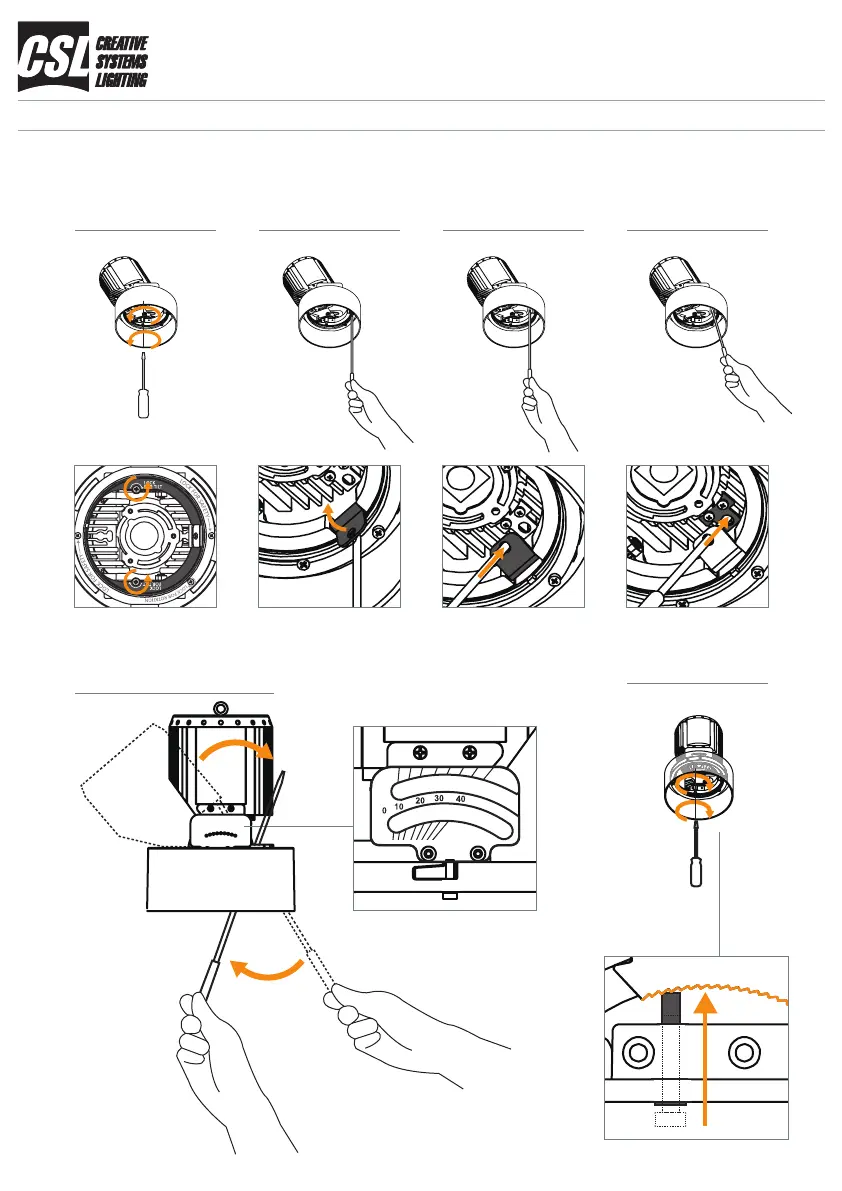

Step 3-1 :
Release this two Screws
of Lock for Tilt.
Step 3-6 :
Tight two Screws of Lock
for Tilt.
Step 3-2 :
Insert screwdriver through
the first clip
Step 3-3 :
Push the screwdriver to the
heat sink
Step 3-4:
Insert screwdriver through the
second clip
Step 3-5 :
Use the Screwdriver and
adjust tilt angle to 0 ,
Scales on the two side of module. (2A)
STEP 3 - TILT THE MODULE
MAINTENANCE GUIDE
IC HOUSING | ACROBAT
