10
Field Operation
The recommended search position is a 45 degree angle from
the earth’s surface. Scan the locator pole from side-to-side in
a slow sweeping motion while walking in a uniform direction.
Once the object being searched is located, pinpointing the
objects location can be accomplished by holding the locator
vertical and sweeping it in an “X” pattern until the absolute peak
is found. Maintain a consistent height above the ground dur-
ing the side-to-side sweeping motion. The audio sound and vi-
sual LCD display will provide the pinpointing results shown.

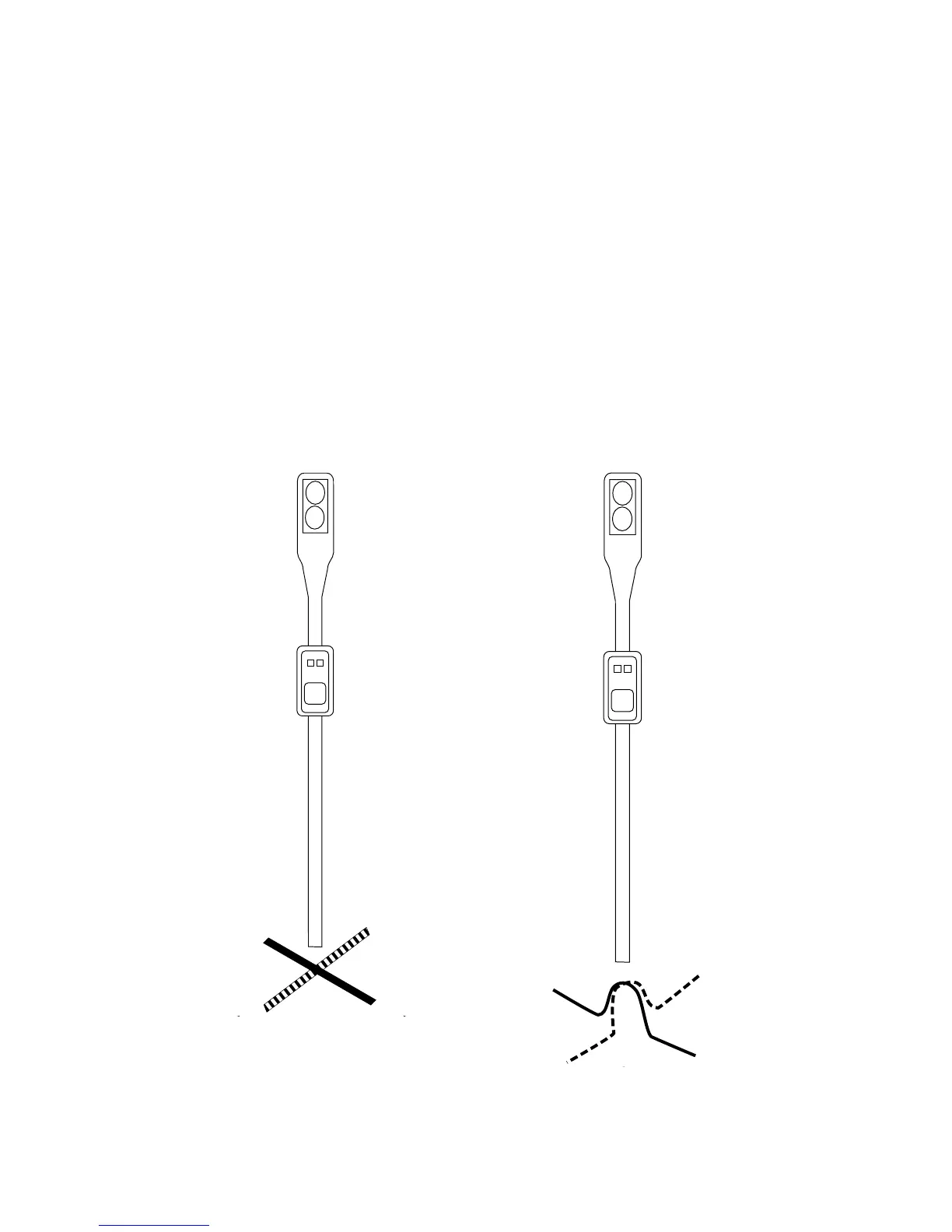

Physical “X” Motion Shown
Locator’s Electrical
response
representation
