H~el/Serial Humber plate
p
Parallel Printer Port
!or autoaat~ Cellular
Test Results
Primary Power Input ·
Ch&r~e/Operator ~tch provided with
battery option selects one o! two
•odes: -
1. Allows the front panel power
switch to activate ONLY the
b&ttery-charqinq circuitry.
2. Allows the front panel power
switch to activate ALL circuitry ·
in the instruaent.
EXT+I2VDC
FUse\Line Voltaqe Select
· ±15 Volt siqna:
!or triqqerinq .
external scope
horizontal.
Ezternal
- +12 voc input .
Optional RS-232
interface port. •

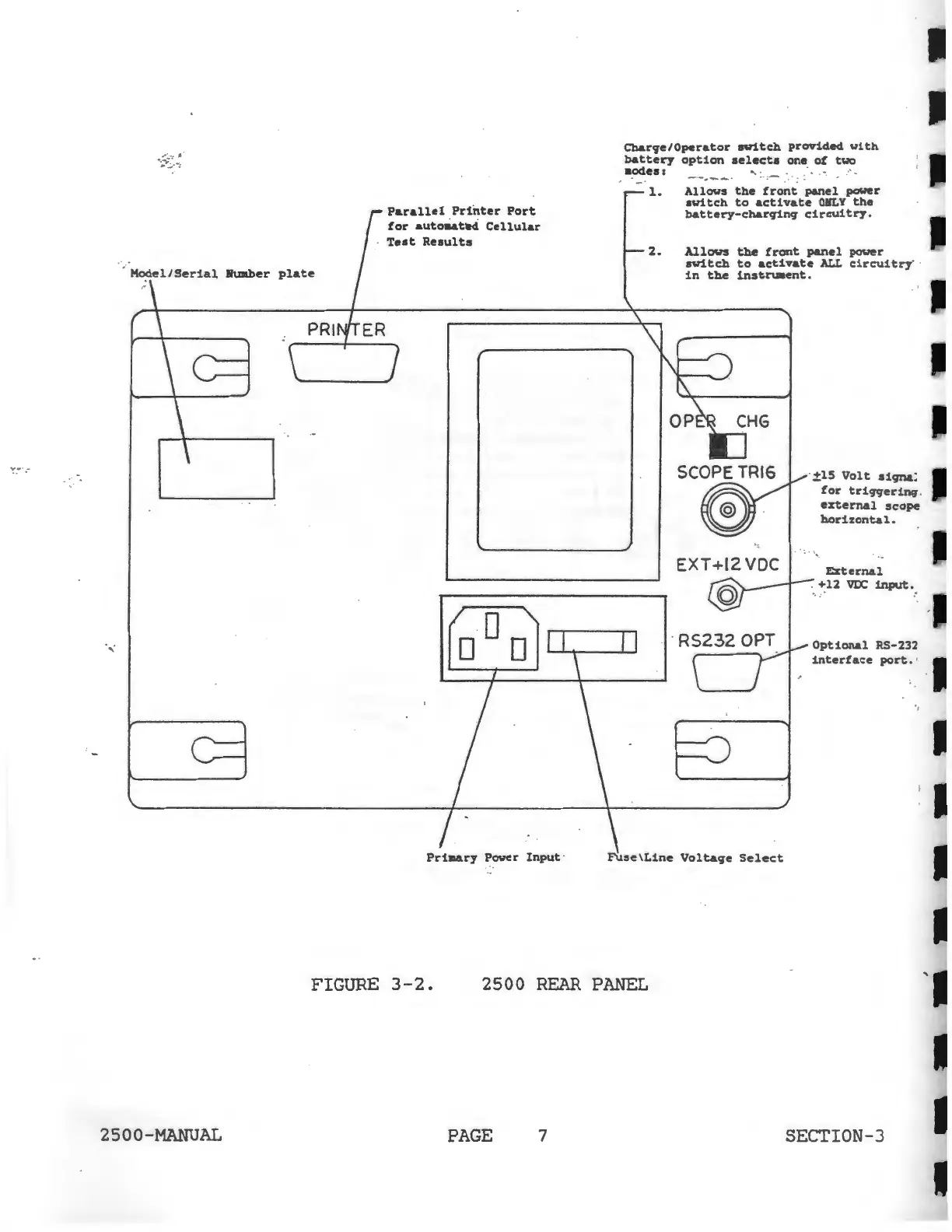

FIGURE 3-2.
2500 REAR PANEL
2500-MANUAL
PAGE 7
SECTION-3
