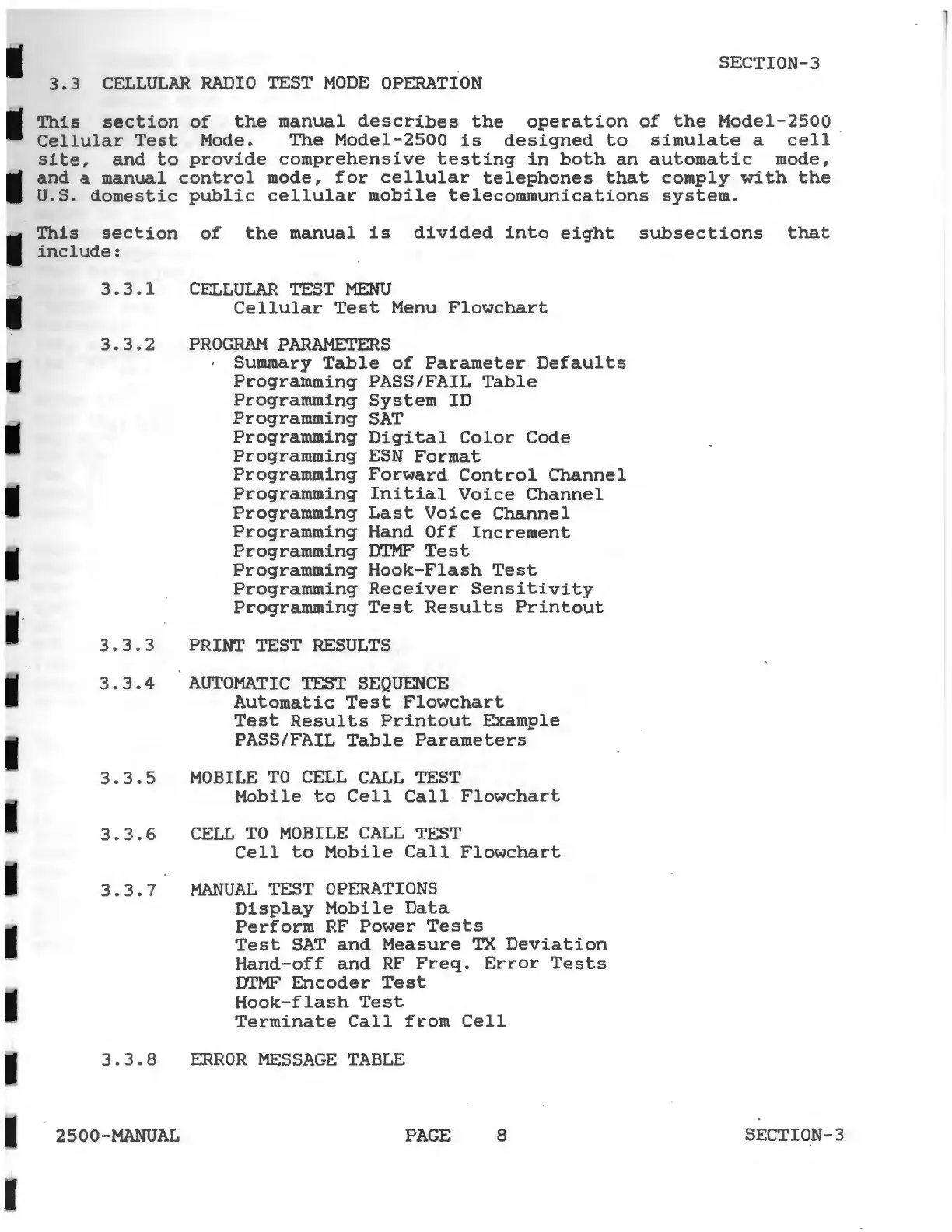

3.3 CELLULAR RADIO TEST MODE OPERATION
This section of the manual describes the operation of the Model-2500
Cellular Test Mode. The Model-2500 is designed to simulate a cell ·
site, and to provide comprehensive testing in both an automatic mode,
and a manual control mode, for cellular telephones that comply with the
U.S. domestic public cellular mobile telecommunications system.
This section of the manual is divided into eight subsections that
include:
3.3.1
3.3.2
3.3.3
3.3.4
3.3.5
3.3.6
3.3.7
3.3.8
2500-MANUAL
CELLULAR TEST MENU
Cellular Test Menu Flowchart
PROGRAM . PARAMETERS
Summary Table of Parameter Defaults
Programming PASS/FAIL Table
Programming System ID
Programming SAT
Programming Digital Color Code
Programming ESN Format
Programming Forward Control Channel
Programming Initial Voice Channel
Programming Last Voice Channel
Programming Hand Off Increment
Programming DTMF Test
Programming Hook-Flash Test
Programming Receiver Sensitivity
Programming Test Results Printout
PRINT TEST RESULTS
AUTOMATIC TEST SEQUENCE
Automatic Test Flowchart
Test Results Printout Example
PASS/FAIL Table Parameters
MOBILE TO CELL CALL TEST
Mobile to Cell Call Flowchart
CELL TO MOBILE CALL TEST
Cell to Mobile Call Flowchart
MANUAL TEST OPERATIONS
Display Mobile Data
Perform RF Power Tests
Test SAT and Measure TX Deviation
Hand-off and RF Freq. Error Tests
DTMF Encoder Test
Hook-flash Test
Terminate Call from Cell
ERROR MESSAGE TABLE
