TEST
PARAMETER

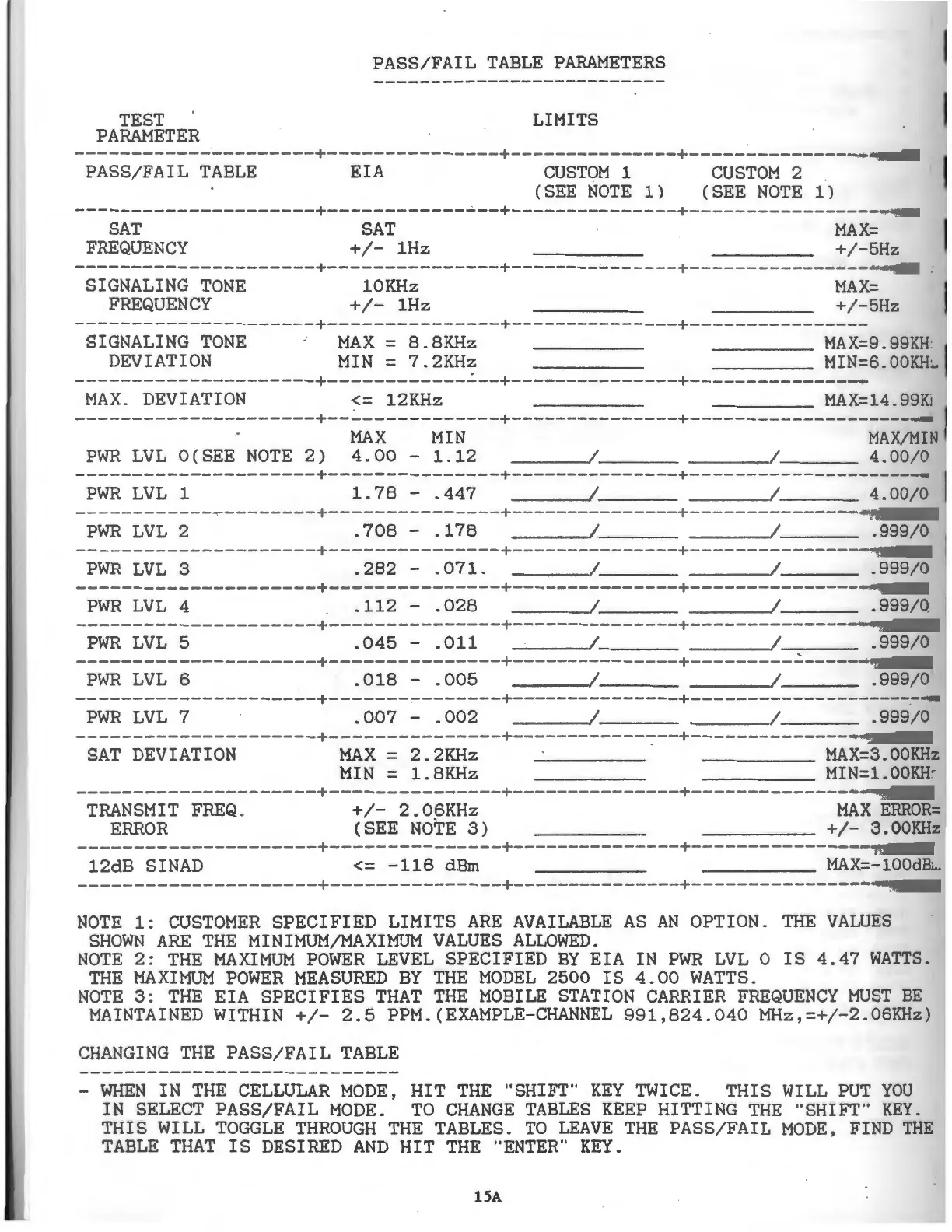

PASS/FAIL TABLE PARAMETERS
LIMITS
---------------------+---------------+---------------+---------------------
PASS/FAIL TABLE EIA CUSTOM 1 CUSTOM 2
(SEE NOTE 1) (SEE NOTE 1)
---------------------+------------~--+---------------+---- - ----------------
SAT SAT MAX=
FREQUENCY +/- 1Hz +/-5Hz
---------------------+---------------+--------~------+---------------------
SIGNALING TONE 10KHz MAX=
FREQUENCY +/- 1Hz +/-5Hz
---------------------+---------------+---------------+----------------
SIGNALING TONE MAX = 8.8KHz MAX=9.99KH
DEVIATION MIN = 7.2KHz MIN=6.00KH~
---------------------+------------~--+---------------+----------------
MAX. DEVIATION <= 12KHz MAX=14. 99K i
---------------------+---------------+---------------+---------------------- ·
MAX MIN MAX/MIN
PWR LVL O(SEE NOTE 2) 4.00 - 1.12 I 4.00/0
---------------------+---------------+---------------+----------------------
PWR LVL 1 1.78- .447 I 4.00/0
---------------------+---------------+---------------+-----------------------
PWR LVL 2 . 708 - . 178 I I . 999/0
---------------------+---------------+---------------+---------------------- ·
PWR LVL 3 . 282 - . 071. I I . 999/0
---------------------+---------------+---------------+----------------------
PWR LVL 4 .112 - .028 I .999/Q
---------------------+---------------+---------------+-----------------------
PWR LVL 5 . 045 - . 011 I . 999/0
---------------------+---------------+---------------+--------- ~ ------------
PWR LVL 6 .018 - .005 I I .999/0
---------------------+---------------+---------------+-----------------------
PWR LVL 7 . 007 - . 002 I . 999/0
---------------------+---------------+---------------+---------------------- ·
SAT DEVIATION MAX = 2.2KHz . MAX=3.00KHz
MIN = 1. 8KHz MIN=l. OOKH '
---------------------+---------------+---------------+---------------------- ·
TRANSMIT FREQ. +/- 2.0,6KHz MAX ERROR=
ERROR (SEE NOTE 3) +/- 3.00KHz
---------------------+---------------+---------------+---------------------- ·
12dB
SINAD <= -116 dBm MAX=-100dBi ..
---------------------+---------------+---------------+-----------------------
NOTE 1: CUSTOMER SPECIFIED LIMITS ARE AVAILABLE AS AN OPTION. THE VALUES
SHOWN ARE THE MINIMUM/MAXIMUM VALUES ALLOWED.
NOTE 2: THE MAXIMUM POWER LEVEL SPECIFIED BY EIA IN PWR LVL 0 IS 4.47 WATTS.
THE MAXIMUM POWER MEASURED BY THE MODEL 2500 IS 4.00 WATTS.
NOTE 3: THE EIA SPECIFIES THAT THE MOBILE STATION CARRIER FREQUENCY MUST BE
MAINTAINED WITHIN+/- 2.5 PPM.(EXAMPLE-CHANNEL 991,824.040 MHz,=+/-2.06KHz)
CHANGING THE PASS/FAIL TABLE
- WHEN IN THE CELLULAR MODE, HIT THE "SHIFT" KEY TWICE. THIS WILL PUT YOU
IN SELECT PASS/FAIL MODE. TO CHANGE TABLES KEEP HITTING THE "SHIFT" KEY.
THIS WILL TOGGLE THROUGH THE TABLES. TO LEAVE THE PASS/FAIL MODE, FIND THE
TABLE THAT IS DESIRED AND HIT THE "ENTER" KEY.
15A
