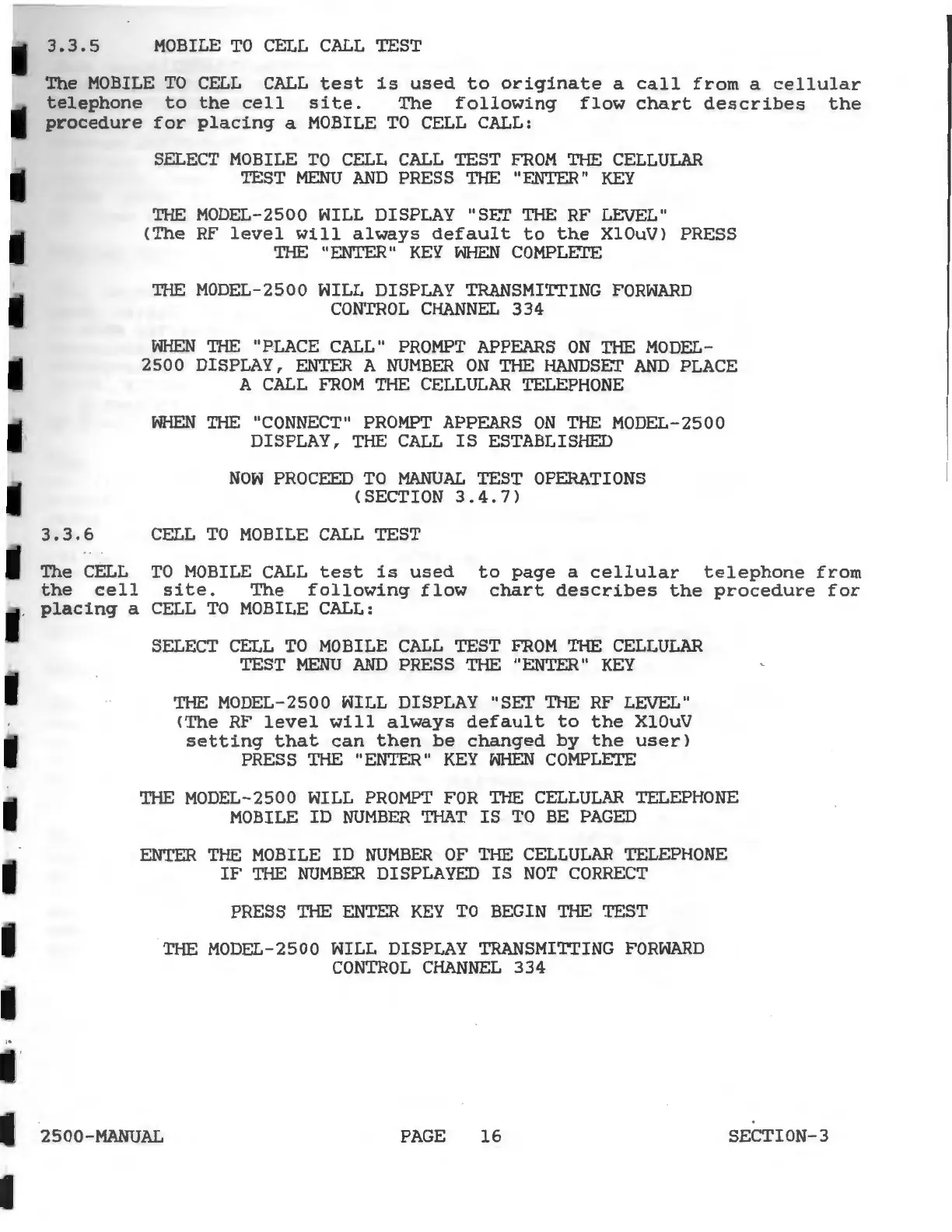

3.3.5

MOBILE

TO

CELL

CALL

TEST

The

MOBILE

TO

CELL

CALL

test

is

used

to

originate

a

call

from

a

cellular

telephone

to

the

cell

site.

The

following

flow

chart

describes

the

procedure

for

placing

a

MOBILE

TO

CELL

CALL:

3.3.6

SELECT

MOBILE

TO

CELL

CALL

TEST

FROM

THE

CELLULAR

TEST

MENU

AND

PRESS

THE

"ENTER"

KEY

THE

MODEL-2500

WILL

DISPLAY

"SET

THE

RF

LEVEL"

(The

RF

level

will

always

default

to

the

XlOuV>

PRESS

THE

"ENTER"

KEY

WHEN

COMPLETE

THE

MODEL-2500

WILL

DISPLAY

TRANSMITTING

FORWARD

CONTROL

CHANNEL

334

WHEN

THE

"PLACE

CALL"

PROMPT

APPEARS

ON

THE

MODEL-

2500 DISPLAY,

ENTER

A

NUMBER

ON

THE

HANDSET

AND

PLACE

A

CALL

FROM

THE

CELLULAR

TELEPHONE

WHEN

THE

"CONNECT"

PROMPT

APPEARS

ON

THE

MODEL-2500

DISPLAY,

THE

CALL

IS

ESTABLISHED

NOW

PROCEED

TO

MANUAL

TEST

OPERATIONS

<SECTION

3.4.7}

CELL

TO

MOBILE

CALL

TEST

The

CELL

TO

MOBILE

CALL

test

is

used

to

page

a

cellular

telephone

from

the

cell

site.

The

following

flow

chart

describes

the

procedure

for

placing

a

CELL

TO

MOBILE

CALL:

SELECT

CELL

TO

MOBILE

CALL

TEST

FROM

THE

CELLULAR

TEST

MENU

AND

PRESS

THE

"ENTER"

KEY

THE

MODEL-2500

WILL

DISPLAY

"SET

THE

RF

LEVEL"

(The

RF

level

will

always

default

to

the

XlOuV

setting

that

can

then

be

changed

by

the

user>

PRESS

THE

"ENTER"

KEY

WHEN

COMPLETE

THE

MODEL-2500

WILL

PROMPT

FOR

THE

CELLULAR

TELEPHONE

MOBILE

ID

NUMBER

THAT

IS

TO

BE

PAGED

ENTER

THE

MOBILE

ID

NUMBER

OF

THE

CELLULAR

TELEPHONE

IF

THE

NUMBER

DISPLAYED

IS

NOT

CORRECT

PRESS

THE

ENTER

KEY

TO

BEGIN

THE

TEST

THE

MODEL-2500

WILL

DISPLAY

TRANSMITTING

FORWARD

CONTROL

CHANNEL

334
