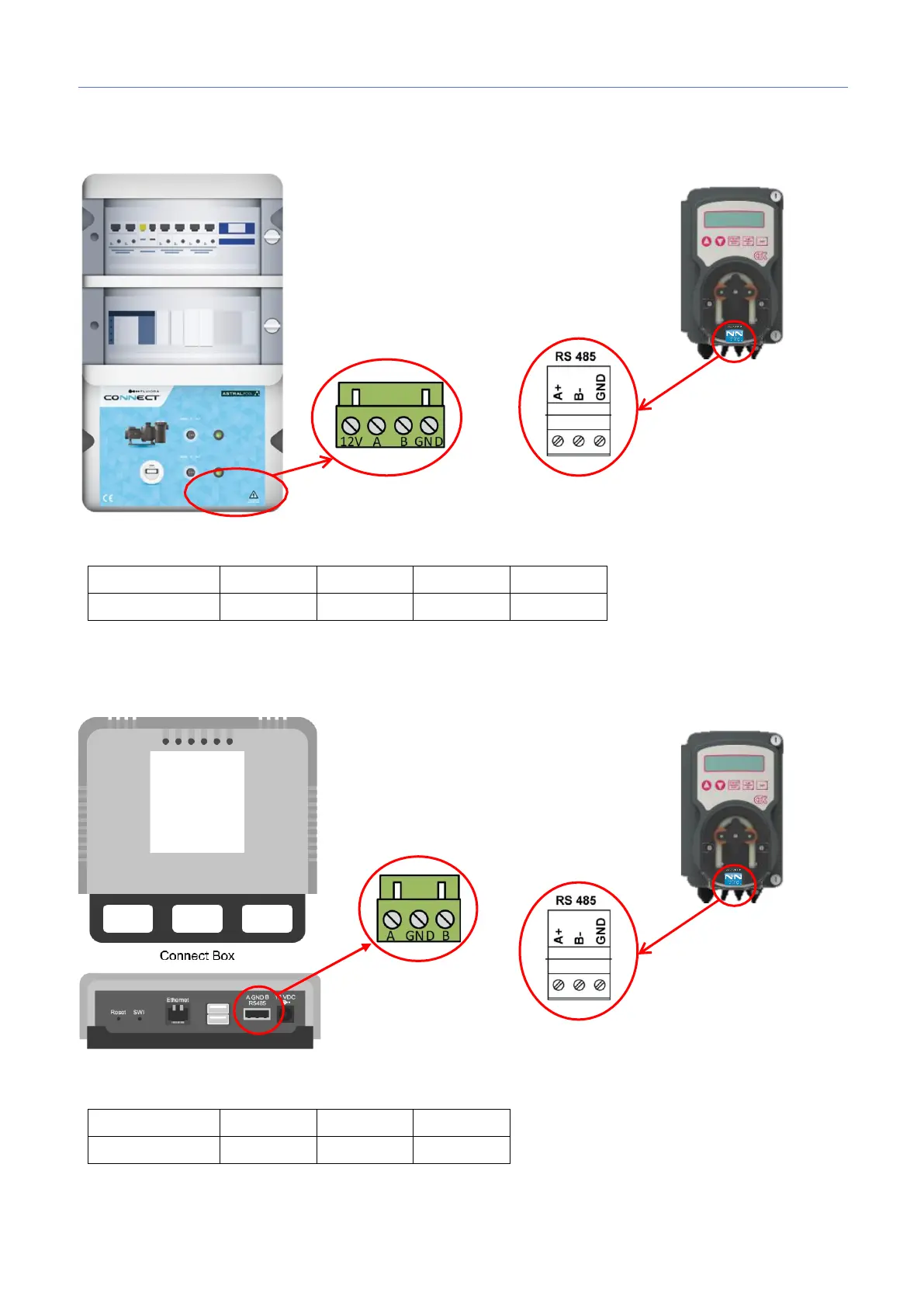

11. CONNECTION TO FLUIDRA CONNECT:
Option 1: Connection to Connect & Go control cabinet
Connections:
Connect & Go
12V
A
B
GND
MyPool DOS
Not used
A+
B-
GND
3-wire general purpose modbus cable (not included)
Option 2: Connection to Connect Box
Connections:
Connect Box
A
B
GND
MyPool DOS
A+
B-
GND
3-wire general purpose modbus cable (not included)
