Cub Cadet 1215 User Manual

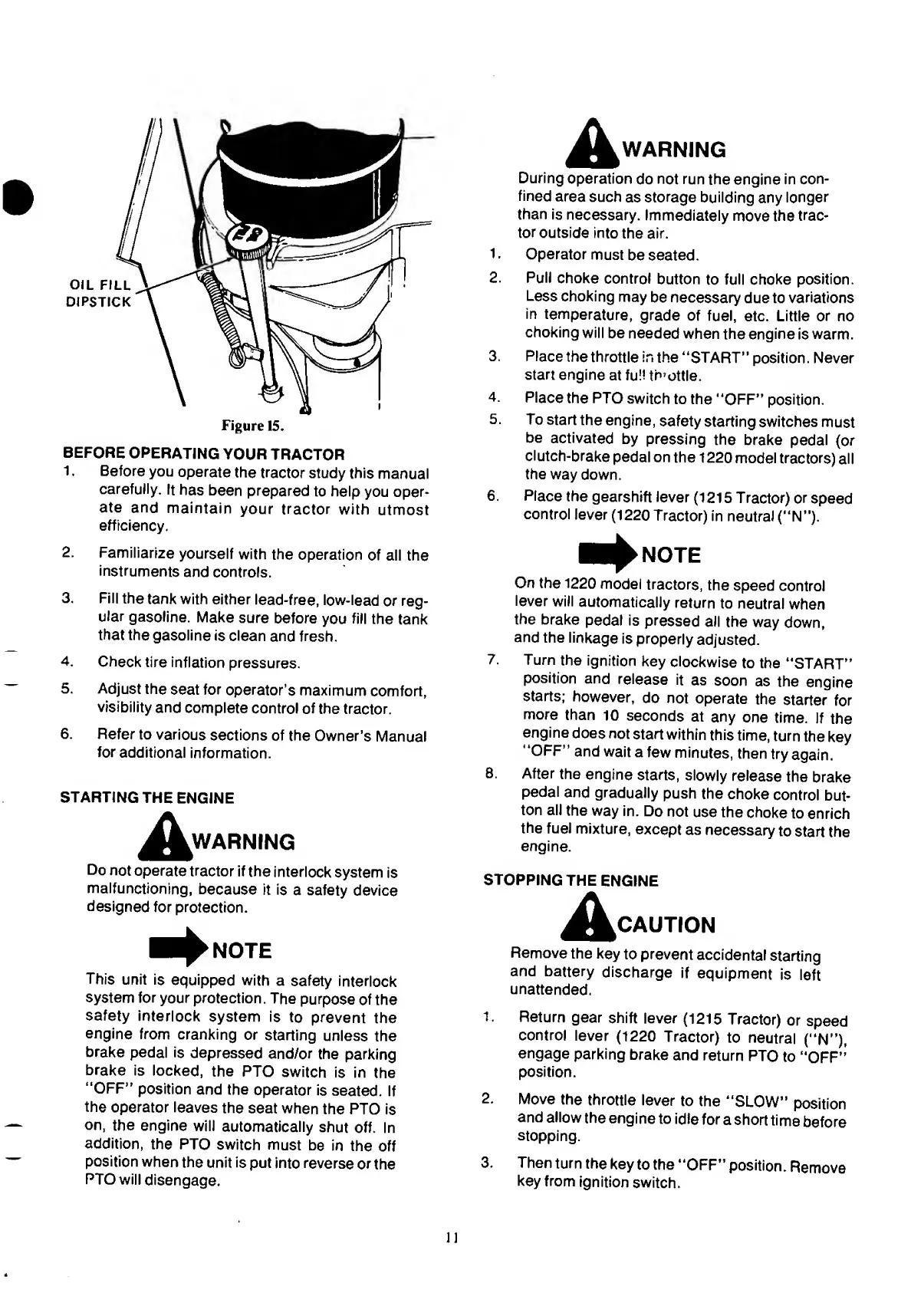

BEFORE OPERATING YOUR TRACTOR
1. Before you operate the tractor study this manual
carefully. It has been prepared to help you oper¬
ate and maintain your tractor with utmost
efficiency.
2. Familiarize yourself with the operation of all the
instruments and controls.
3. Fill the tank with either lead-free, low-lead or reg¬
ular gasoline. Make sure before you fill the tank
that the gasoline is clean and fresh.
4. Check tire inflation pressures.
5. Adjust the seat for operator’s maximum comfort,
visibility and complete control of the tractor.
6. Refer to various sections of the Owner’s Manual
for additional information.
STARTING THE ENGINE
^^W ARNING
Do not operate tractor if the interlock system is
malfunctioning, because it is a safety device
designed for protection.
■ ^NOTE
This unit is equipped with a safety interlock
system for your protection. The purpose of the
safety interlock system is to prevent the
engine from cranking or starting unless the
brake pedal is depressed and/or the parking
brake is locked, the PTO switch is in the
“OFF” position and the operator is seated. If
the operator leaves the seat when the PTO is
on, the engine will automatically shut off. In
addition, the PTO switch must be in the off
position when the unit is put into reverse or the
PTO will disengage.
WARNING
During operation do not run the engine in con¬
fined area such as storage building any longer
than is necessary. Immediately move the trac¬
tor outside into the air.
1. Operator must be seated.
2. Pull choke control button to full choke position.
Less choking may be necessary due to variations
in temperature, grade of fuel, etc. Little or no
choking will be needed when the engine is warm.
3. Place the throttle in the “START” position. Never
start engine at full tmottle.
4. Place the PTO switch to the “OFF” position.
5. To start the engine, safety starting switches must
be activated by pressing the brake pedal (or
clutch-brake pedal on the 1220 model tractors) all
the way down.
6. Place the gearshift lever (1215 Tractor) or speed
control lever (1220 Tractor) in neutral (“N”).
■ ^NOTE
On the 1220 model tractors, the speed control
lever will automatically return to neutral when
the brake pedal is pressed all the way down,
and the linkage is properly adjusted.
7. Turn the ignition key clockwise to the “START”
position and release it as soon as the engine
starts; however, do not operate the starter for
more than 10 seconds at any one time. If the
engine does not start within this time, turn the key
“OFF” and wait a few minutes, then try again.
8. After the engine starts, slowly release the brake
pedal and gradually push the choke control but¬
ton all the way in. Do not use the choke to enrich
the fuel mixture, except as necessary to start the
engine.
STOPPING THE ENGINE
A CAUTION
Remove the key to prevent accidental starting
and battery discharge if equipment is left
unattended.
1. Return gear shift lever (1215 Tractor) or speed
control lever (1220 Tractor) to neutral (“N”),
engage parking brake and return PTO to “OFF”
position.
2. Move the throttle lever to the “SLOW” position
and allow the engine to idle for a short time before
stopping.
3. Then turn the key to the “OFF” position. Remove
key from ignition switch.
11

Cub Cadet 1215 Specifications

Capacities

fuel tank capacity	3 gals
crankcase capacity	3 pints
transmission capacity	1-1/2 pints
transaxle capacity	2-3/4 pints

Transmission

gears	5 forward speeds and 1 reverse
forward speed	0 to 5.5 mph
reverse speed	0 to 2.35 mph

Engine Specifications

engine make and model	Briggs and Stratton
engine power	12 HP
cylinders	1
bore	3.44 in
stroke	3.06 in
displacement	28.40 cubic inches
low speed	1750 RPM
high idle speed	3400 RPM +-100

Electrical System

system voltage	12 volt neg. ground
alternator	16 amp
fuse	20 amp slow blow
headlights	GE 12 volt 1156

Tires and Dimensions

front tire size	15x6-6
rear tire size	20x10-8
wheelbase	45.0 in
length	68.50 in
turning radius	29.00 in
