Cub Cadet 1215 User Manual

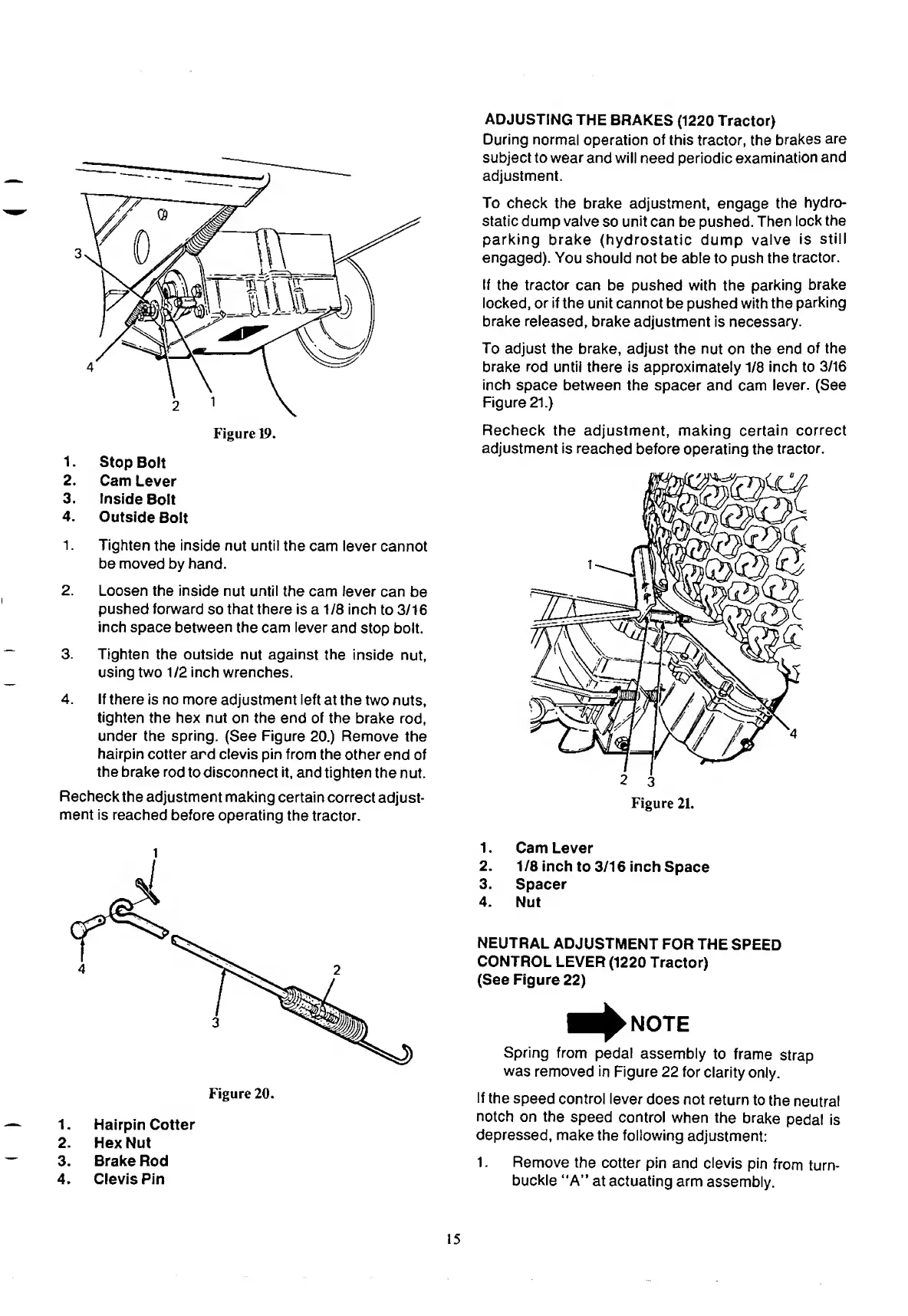

1. Stop Bolt
2. Cam Lever
3. Inside Bolt
4. Outside Bolt
1. Tighten the inside nut until the cam lever cannot
be moved by hand.
2. Loosen the inside nut until the cam lever can be
pushed forward so that there is a t/8 inch to 3/16
inch space between the cam lever and stop bolt.
3. Tighten the outside nut against the inside nut,
using two 1/2 inch wrenches.
4. If there is no more adjustment left at the two nuts,
tighten the hex nut on the end of the brake rod,
under the spring. {See Figure 20.) Remove the
hairpin cotter ard clevis pin from the other end of
the brake rod to disconnect it, and tighten the nut.
Recheck the adjustment making certain correct adjust¬
ment is reached before operating the tractor.
ADJUSTING THE BRAKES (1220 Tractor)
During normal operation of this tractor, the brakes are
subject to wear and will need periodic examination and
adjustment.
To check the brake adjustment, engage the hydro¬
static dump valve so unit can be pushed. Then lock the
parking brake (hydrostatic dump valve is still
engaged). You should not be able to push the tractor.
If the tractor can be pushed with the parking brake
locked, or if the unit cannot be pushed with the parking
brake released, brake adjustment is necessary.
To adjust the brake, adjust the nut on the end of the
brake rod until there is approximately 1/8 inch to 3/16
inch space between the spacer and cam lever. (See
Figure 21.)
Recheck the adjustment, making certain correct
adjustment is reached before operating the tractor.
1
Figure 20.
1. Hairpin Cotter
2. Hex Nut
3. Brake Rod
4. Clevis Pin
1. Cam Lever
2. 1/8 inch to 3/16 inch Space
3. Spacer
4. Nut
NEUTRAL ADJUSTMENT FOR THE SPEED
CONTROL LEVER (1220 Tractor)
(See Figure 22)
^^NOTE
Spring from pedal assembly to frame strap
was removed in Figure 22 for clarity only.
If the speed control lever does not return to the neutral
notch on the speed control when the brake pedal is
depressed, make the following adjustment:
1. Remove the cotter pin and clevis pin from turn-
buckle “A” at actuating arm assembly.
15

Cub Cadet 1215 Specifications

Capacities

fuel tank capacity	3 gals
crankcase capacity	3 pints
transmission capacity	1-1/2 pints
transaxle capacity	2-3/4 pints

Transmission

gears	5 forward speeds and 1 reverse
forward speed	0 to 5.5 mph
reverse speed	0 to 2.35 mph

Engine Specifications

engine make and model	Briggs and Stratton
engine power	12 HP
cylinders	1
bore	3.44 in
stroke	3.06 in
displacement	28.40 cubic inches
low speed	1750 RPM
high idle speed	3400 RPM +-100

Electrical System

system voltage	12 volt neg. ground
alternator	16 amp
fuse	20 amp slow blow
headlights	GE 12 volt 1156

Tires and Dimensions

front tire size	15x6-6
rear tire size	20x10-8
wheelbase	45.0 in
length	68.50 in
turning radius	29.00 in
