1
2

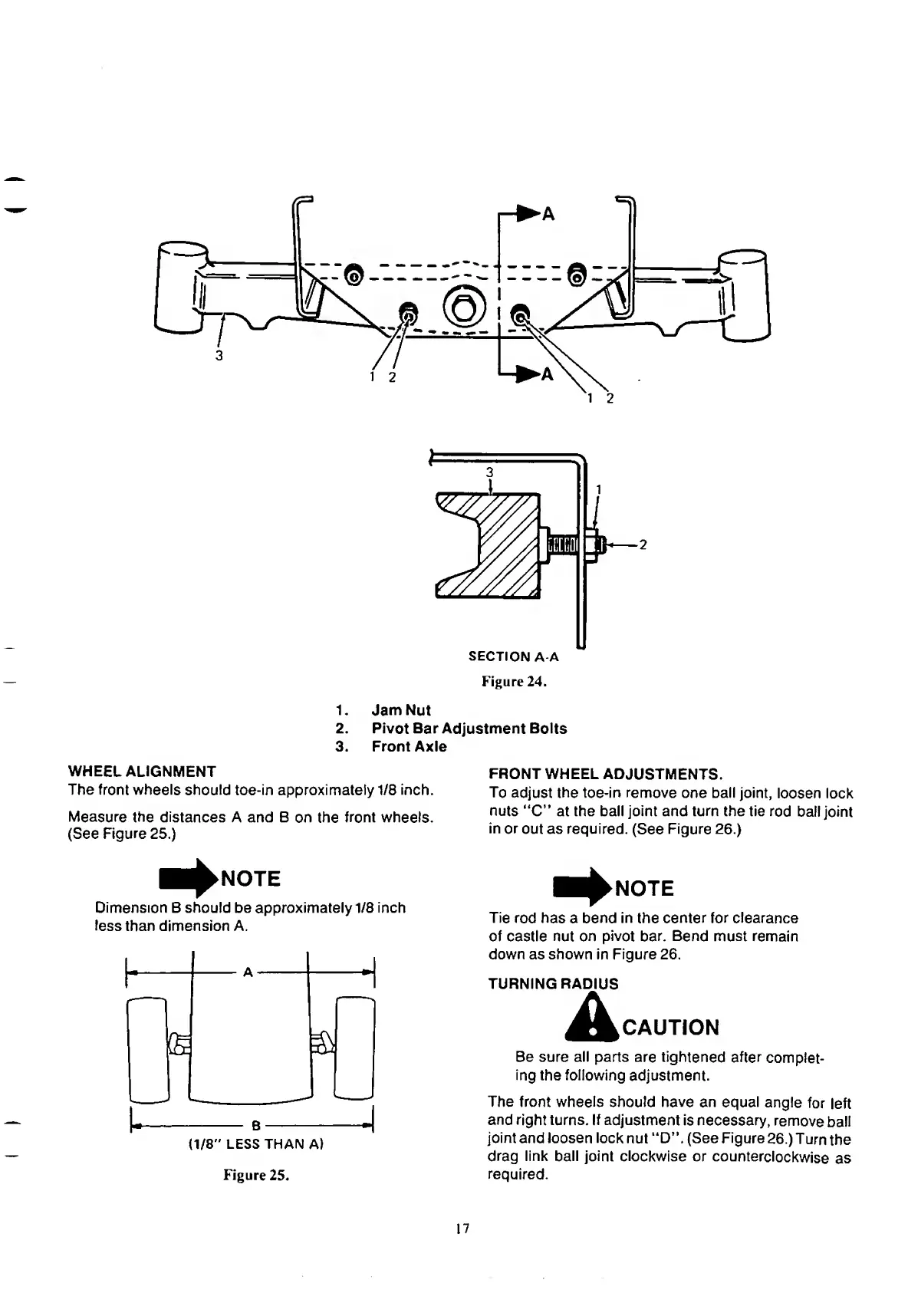

SECTION
A-A
Figure
24.
1.
Jam
Nut
2.
Pivot
Bar
Adjustment
Bolts
3.
Front
Axle
WHEEL
ALIGNMENT
The
front
wheels
should
toe-in
approximately
1/8
inch.
Measure
the
distances
A
and
B
on
the
front
wheels.
(See
Figure
25.)
FRONT
WHEEL
ADJUSTMENTS.
To
adjust
the
toe-in
remove
one
ball
joint,
loosen
lock
nuts
“C”
at
the
ball
joint
and
turn
the
tie
rod
ball
joint
in
or
out
as
required.
(See
Figure
26.)
^NOTE
Dimension
B
should
be
approximately
1/8
inch
less
than
dimension
A.
Figure
25.
^NOTE
Tie
rod
has
a
bend
in
the
center
for
clearance
of
castle
nut
on
pivot
bar.
Bend
must
remain
down
as
shown
in
Figure
26.
TURNING
RADIUS
A
CAUTION
Be
sure
all
parts
are
tightened
after
complet¬
ing
the
following
adjustment.
The
front
wheels
should
have
an
equal
angle
for
left
and
right
turns.
If
adjustment
is
necessary,
remove
ball
joint
and
loosen
locknut
“D”.
(See
Figure
26.)
Turn
the
drag
link
ball
joint
clockwise
or
counterclockwise
as
required.
17
