Cub Cadet 1215 User Manual

MOWING DECK - ADJUSTMENTS AND OPERATION

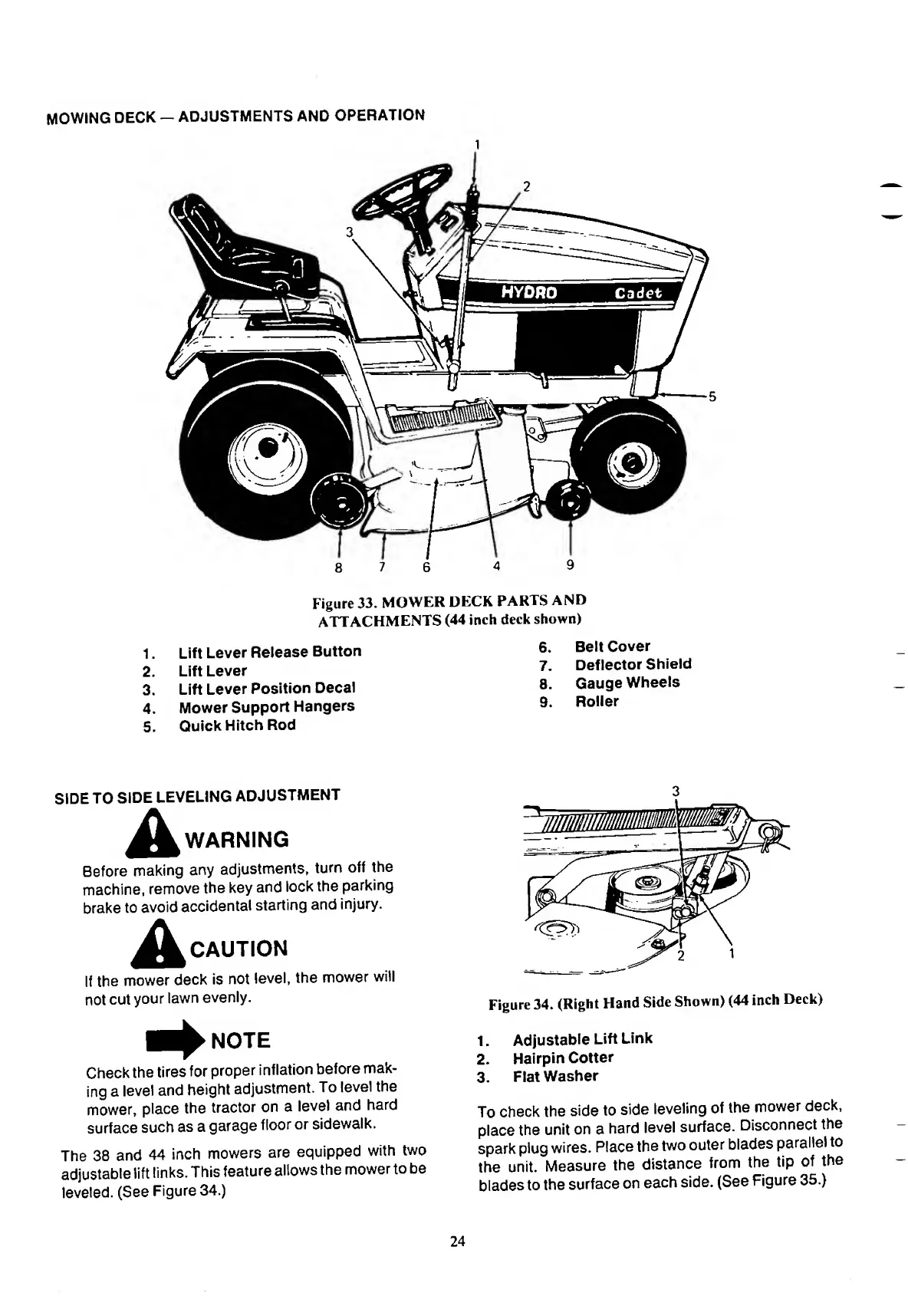

Figure 33. MOWER DECK PARTS AND
ATTACHMENTS (44 inch deck shown)
1 .
Lift Lever Release Button
6.
Belt Cover
2.
Lift Lever
7.
Deflector Shield
3.
Lift Lever Position Decal
8.
Gauge Wheels
4.
Mower Support Hangers
9.
Roller
5.
Quick Hitch Rod
SIDE TO SIDE LEVELING ADJUSTMENT
A WARNING
Before making any adjustments, turn off the
machine, remove the key and lock the parking
brake to avoid accidental starting and injury.
A CAUTION
If the mower deck is not level, the mower will
not cut your lawn evenly.
■ ^NOTE
Check the tires for proper inflation before mak¬
ing a level and height adjustment. To level the
mower, place the tractor on a level and hard
surface such as a garage floor or sidewalk.
The 38 and 44 inch mowers are equipped with two
adjustable lift links. This feature allows the mower to be
leveled. (See Figure 34.)
3
1. Adjustable Lift Link
2. Hairpin Cotter
3. Flat Washer
To check the side to side leveling of the mower deck,
place the unit on a hard level surface. Disconnect the
spark plug wires. Place the two outer blades parallel to
the unit. Measure the distance from the tip of the
blades to the surface on each side. (See Figure 35.)
24

Cub Cadet 1215 Specifications

Capacities

fuel tank capacity	3 gals
crankcase capacity	3 pints
transmission capacity	1-1/2 pints
transaxle capacity	2-3/4 pints

Transmission

gears	5 forward speeds and 1 reverse
forward speed	0 to 5.5 mph
reverse speed	0 to 2.35 mph

Engine Specifications

engine make and model	Briggs and Stratton
engine power	12 HP
cylinders	1
bore	3.44 in
stroke	3.06 in
displacement	28.40 cubic inches
low speed	1750 RPM
high idle speed	3400 RPM +-100

Electrical System

system voltage	12 volt neg. ground
alternator	16 amp
fuse	20 amp slow blow
headlights	GE 12 volt 1156

Tires and Dimensions

front tire size	15x6-6
rear tire size	20x10-8
wheelbase	45.0 in
length	68.50 in
turning radius	29.00 in
