Cub Cadet 1215 User Manual

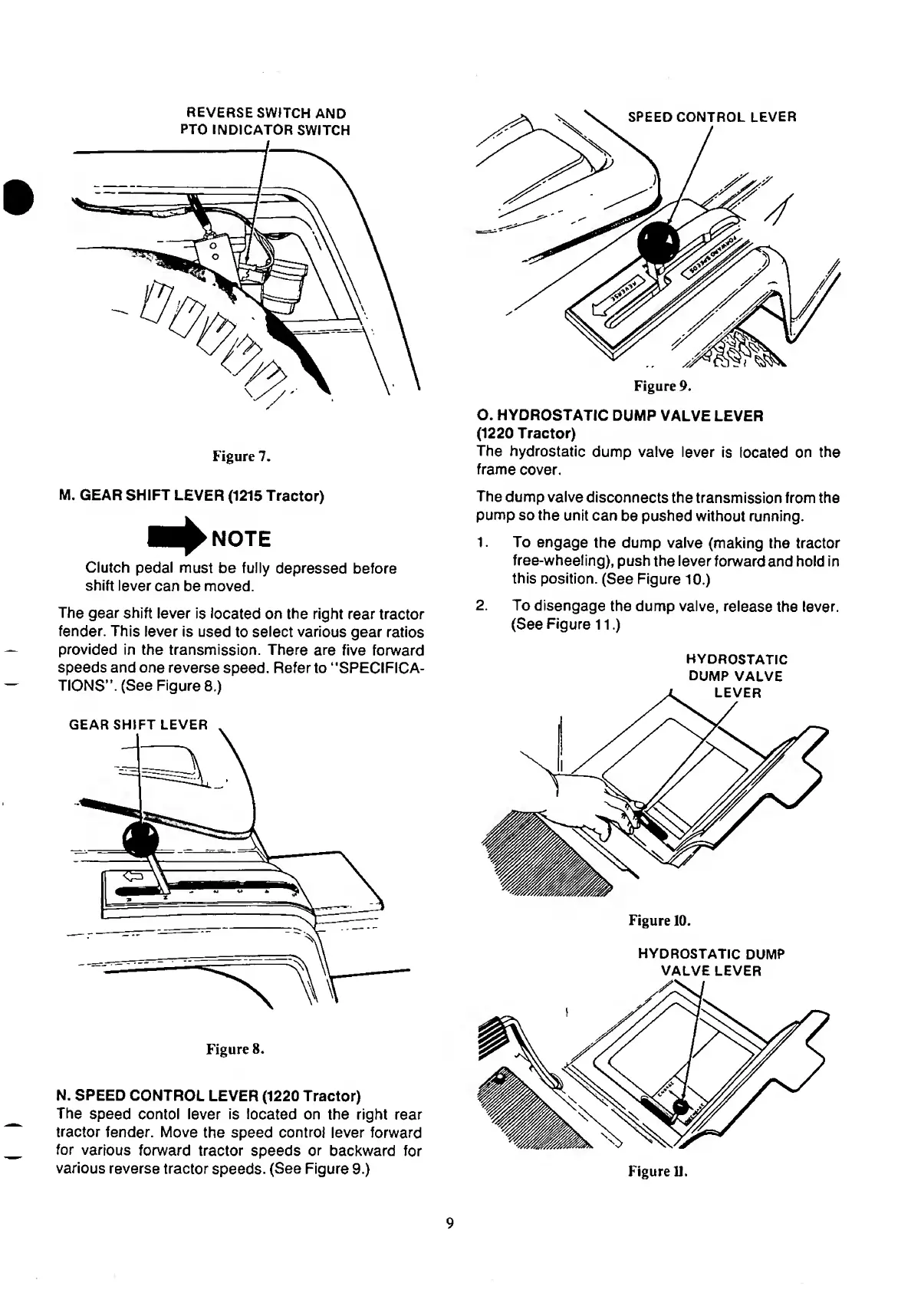

REVERSE SWITCH AND
PTO INDICATOR SWITCH
Figure 7.
O. HYDROSTATIC DUMP VALVE LEVER
(1220 Tractor)
The hydrostatic dump valve lever is located on the
frame cover.
M. GEAR SHIFT LEVER (1215 Tractor)
■ ^NOTE
Clutch pedal must be fully depressed before
shift lever can be moved.
The gear shift lever is located on the right rear tractor
fender. This lever is used to select various gear ratios
provided in the transmission. There are five forward
speeds and one reverse speed. Refer to ‘'SPECIFICA¬
TIONS’*. (See Figure 8.)
Figure 8.
N. SPEED CONTROL LEVER (1220 Tractor)
The speed contol lever is located on the right rear
tractor fender. Move the speed control lever forward
for various forward tractor speeds or backward for
various reverse tractor speeds. (See Figure 9.)
The dump valve disconnects the transmission from the
pump so the unit can be pushed without running.
1. To engage the dump valve (making the tractor
free-wheeling), push the lever forward and hold in
this position. (See Figure 10.)
2. To disengage the dump valve, release the lever.
(See Figure 11.)
HYDROSTATIC
DUMP VALVE
HYDROSTATIC DUMP
VALVE LEVER
9

Cub Cadet 1215 Specifications

Capacities

fuel tank capacity	3 gals
crankcase capacity	3 pints
transmission capacity	1-1/2 pints
transaxle capacity	2-3/4 pints

Transmission

gears	5 forward speeds and 1 reverse
forward speed	0 to 5.5 mph
reverse speed	0 to 2.35 mph

Engine Specifications

engine make and model	Briggs and Stratton
engine power	12 HP
cylinders	1
bore	3.44 in
stroke	3.06 in
displacement	28.40 cubic inches
low speed	1750 RPM
high idle speed	3400 RPM +-100

Electrical System

system voltage	12 volt neg. ground
alternator	16 amp
fuse	20 amp slow blow
headlights	GE 12 volt 1156

Tires and Dimensions

front tire size	15x6-6
rear tire size	20x10-8
wheelbase	45.0 in
length	68.50 in
turning radius	29.00 in
