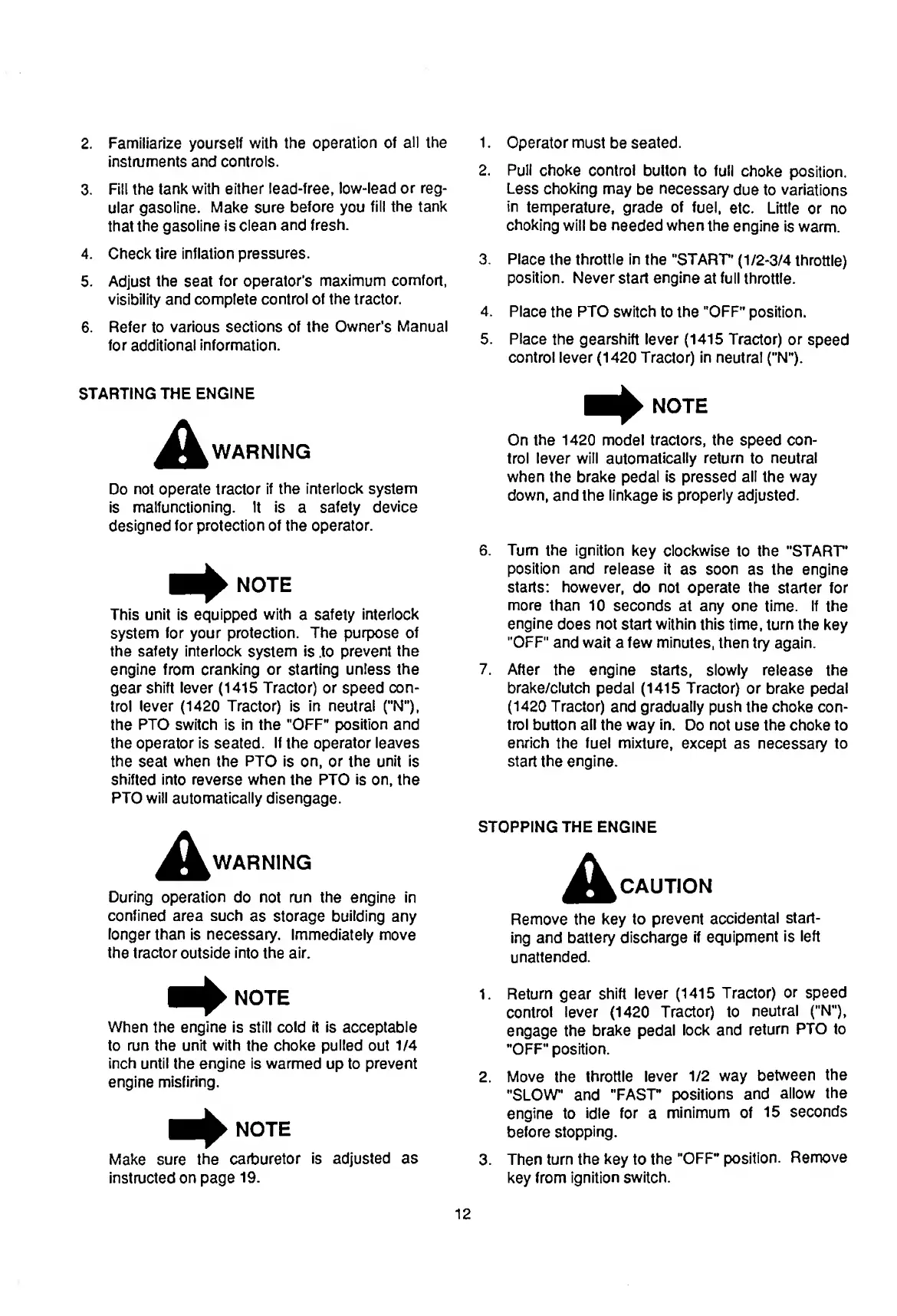

2. Familiarize yourself with the operation of all the
instruments and controls.
3. Fill the tank with either lead-free, low-lead or reg¬
ular gasoline. Make sure before you fill the tank
that the gasoline is clean and fresh.
4. Check tire inflation pressures.
5. Adjust the seat for operator’s maximum comfort,
visibility and complete control of the tractor.
6. Refer to various sections of the Owner's Manual
for additional information.
STARTING THE ENGINE
A WARNING
Do not operate tractor if the interlock system
is malfunctioning. It is a safety device
designed for protection of the operator.
NOTE
This unit is equipped with a safety interlock
system for your protection. The purpose of
the safety interlock system is .to prevent the
engine from cranking or starting unless the
gear shift lever (1415 Tractor) or speed con¬
trol lever (1420 Tractor) is in neutral ("N"),
the PTO switch is in the "OFF" position and
the operator is seated. If the operator leaves
the seat when the PTO is on, or the unit is
shifted into reverse when the PTO is on, the
PTO will automatically disengage.
A WARNING
During operation do not run the engine in
confined area such as storage building any
longer than is necessary. Immediately move
the tractor outside into the air.
NOTE
When the engine is still cold it is acceptable
to run the unit with the choke pulled out 1/4
inch until the engine is warmed up to prevent
engine misfiring.
NOTE
Make sure the carburetor is adjusted as
instructed on page 19.
1. Operator must be seated.
2. Pull choke control button to full choke position.
Less choking may be necessary due to variations
in temperature, grade of fuel, etc. Little or no
choking will be needed when the engine is warm.
3. Place the throttle in the "START' (1/2-3/4 throttle)
position. Never start engine at full throttle.
4. Place the PTO switch to the "OFF" position.
5. Place the gearshift lever (1415 Tractor) or speed
control lever (1420 Tractor) in neutral ("N").
NOTE
On the 1420 model tractors, the speed con¬
trol lever will automatically return to neutral
when the brake pedal is pressed all the way
down, and the linkage is properly adjusted.
6. Turn the ignition key clockwise to the "START*
position and release it as soon as the engine
starts: however, do not operate the starter for
more than 10 seconds at any one time. If the
engine does not start within this time, turn the key
"OFF" and wait a few minutes, then try again.
7. After the engine starts, slowly release the
brake/clutch pedal (1415 Tractor) or brake pedal
(1420 Tractor) and gradually push the choke con¬
trol button all the way in. Do not use the choke to
enrich the fuel mixture, except as necessary to
start the engine.
STOPPING THE ENGINE
A CAUTION
Remove the key to prevent accidental start¬
ing and battery discharge if equipment is left
unattended.
1. Return gear shift lever (1415 Tractor) or speed
control lever (1420 Tractor) to neutral ("N"),
engage the brake pedal lock and return PTO to
"OFF” position.
2. Move the throttle lever 1/2 way between the
"SLOW” and "FAST" positions and allow the
engine to idle for a minimum of 15 seconds
before stopping.
3. Then turn the key to the "OFF" position. Remove
key from ignition switch.
12
