Cub Cadet 1420 User Manual

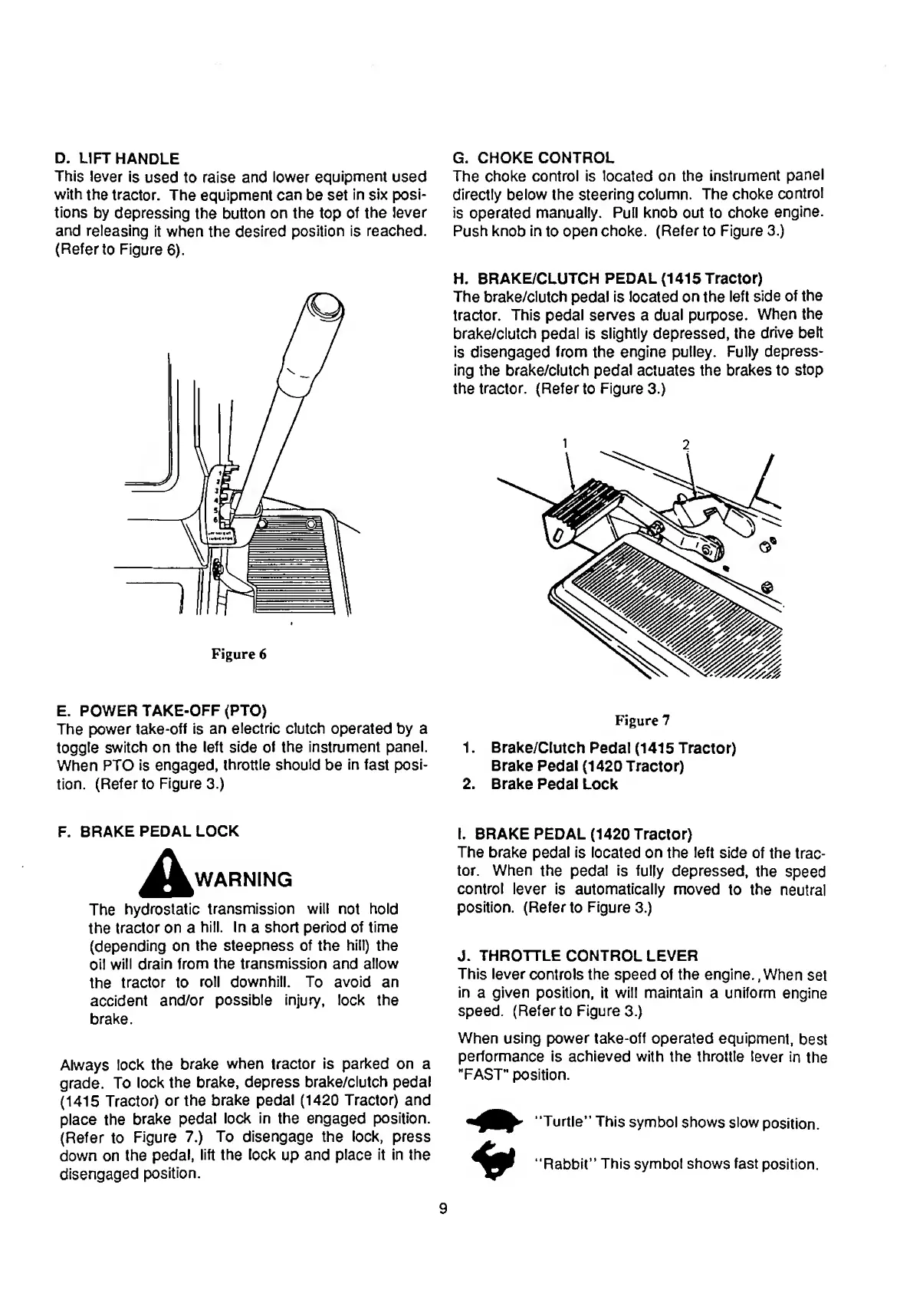

D. L IFT HANDLE
This lever is used to raise and lower equipment used
with the tractor. The equipment can be set in six posi¬
tions by depressing the button on the top of the lever
and releasing it when the desired position is reached.
(Refer to Figure 6).
E. P O WER TAKE-OFF (PTO)
The power take-off is an electric clutch operated by a
toggle switch on the left side of the instrument panel.
When PTO is engaged, throttle should be in fast posi¬
tion. (Refer to Figure 3.)
G. CHOKE CONTROL
The choke control is located on the instrument panel
directly below the steering column. The choke control
is operated manually. Pull knob out to choke engine.
Push knob in to open choke. (Refer to Figure 3.)
H. BRAKE/CLUTCH PEDAL (1415 Tractor)
The brake/clutch pedal is located on the left side of the
tractor. This pedal serves a dual purpose. When the
brake/clutch pedal is slightly depressed, the drive belt
is disengaged from the engine pulley. Fully depress¬
ing the brake/clutch pedal actuates the brakes to stop
the tractor. (Refer to Figure 3.)
i 2
1. Brake/Clutch Pedal (1415 Tractor)
Brake Pedal (1420 Tractor)
2. Brake Pedal Lock
F. B R AKE PEDAL LOCK
A WARNING
The hydrostatic transmission will not hold
the tractor on a hill. In a short period of time
(depending on the steepness of the hill) the
oil will drain from the transmission and allow
the tractor to roll downhill. To avoid an
accident and/or possible injury, lock the
brake.
Always lock the brake when tractor is parked on a
grade. To lock the brake, depress brake/clutch pedal
(1415 Tractor) or the brake pedal (1420 Tractor) and
place the brake pedal lock in the engaged position.
(Refer to Figure 7.) To disengage the lock, press
down on the pedal, lift the lock up and place it in the
disengaged position.
I. BRAKE PEDAL (1420 Tractor)
The brake pedal is located on the left side of the trac¬
tor. When the pedal is fully depressed, the speed
control lever is automatically moved to the neutral
position. (Refer to Figure 3.)
J. T HROTTLE CONTROL LEVER
This lever controls the speed of the engine., When set
in a given position, it will maintain a uniform engine
speed. (Refer to Figure 3.)
When using power take-off operated equipment, best
performance is achieved with the throttle lever in the
"FAST" position.
“Turtle” This symbol shows slow position.
“Rabbit” This symbol shows fast position.
9
