Lock cam itno this position by turning knob
clockwise.

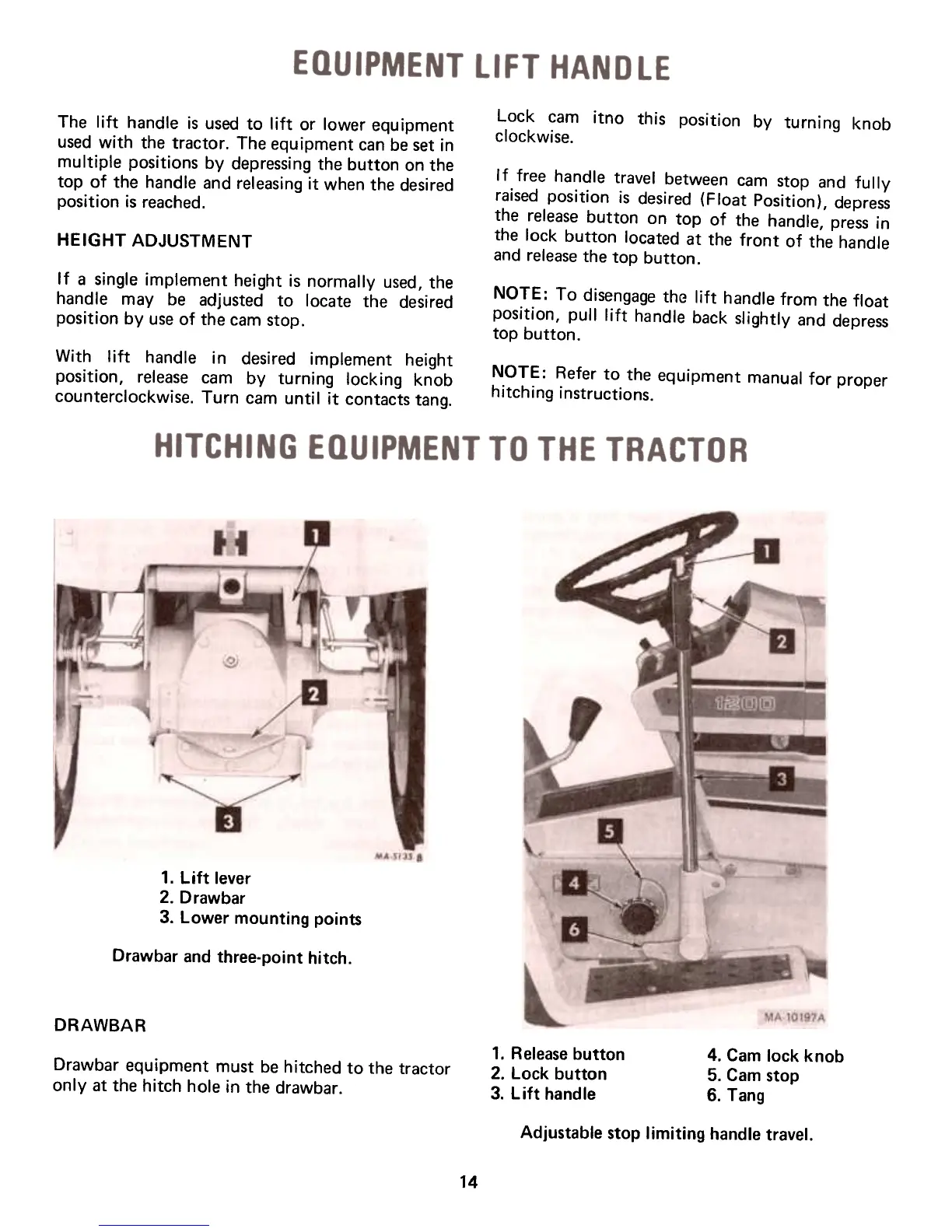

The lift handle is used to lift or lower equipment
used with the tractor. The equipment can be set in
multiple positions by depressing the button on the
top of the handle and releasing it when the desired
position is reached.
If free handle travel between cam stop and fully
raised position is desired (Float Position), depress
the release button on top of the handle, press in
the lock button located at the front of the handle
and release the top button.
HEIGHT ADJUSTMENT
If a single implement height is normally used, the
handle may be adjusted to locate the desired
position by use of the cam stop.
NOTE: To disengage the lift handle from the float
position, pull lift handle back slightly and depress
top button.
With lift handle in desired implement height
position, release cam by turning locking knob
counterclockwise. Turn cam until it contacts tang.
NOTE: Refer to the equipment manual for proper
hitching instructions.
1. Lift lever2.
Drawbar3.
Lower mounting points
Drawbar and three-point hitch.
DRAWBAR
1. Release button
2. Lock button
3. Lift handle
4. Cam lock knob
5. Cam stop
6. Tang
Drawbar equipment must be hitched to the tractor
only at the hitch hole in the drawbar.
Adjustable stop limiting handle travel.
14
