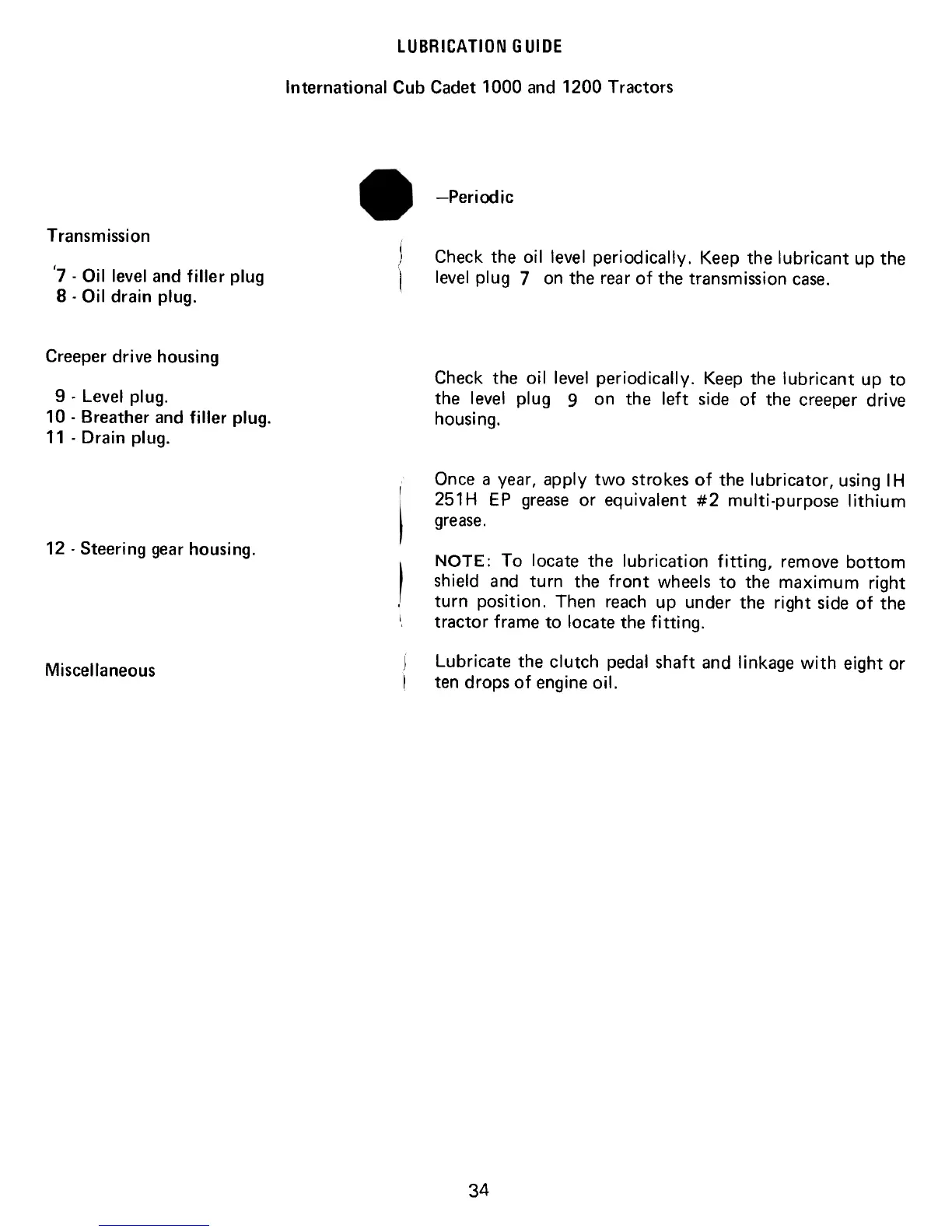

LUBRICATION GUIDE
International Cub Cadet 1000 and 1200 Tractors
-Periodic
Transmission
Check the oil level periodically. Keep the lubricant up the
level plug 7 on the rear of the transmission case.
'7 -Oil level and filler plug
8 -Oil drain plug.
Creeper drive housing
Check the oil level periodically. Keep the lubricant up to
the level plug 9 on the left side of the creeper drivehousing.
9 .Level plug.
10. Breather and filler plug.
11 .Drain plug.
Once a year, apply two strokes of the lubricator, using I H251
H EP grease or equivalent #2 multi-purpose lithium
grease.
12 -Steering gear housing.
NOTE: To locate the lubrication fitting, remove bottom
shield and turn the front wheels to the maximum right
turn position. Then reach up under the right side of the
tractor frame to locate the fitting.
Lubricate the clutch pedal shaft and linkage with eight or
ten drops of engine oil.
Miscellaneous
34

Cub Cadet 1650 Specifications

General

Engine Model	Kohler K341AQS
Horsepower	16 HP
Transmission Type	Hydrostatic
Drive	2WD
Front Tire	16x6.50-8
Rear Tire	23x10.50-12
Fuel Capacity	3.5 U.S. gallons
Height	42 in (107 cm)
Engine Type	Single cylinder, 4-stroke, air-cooled
