Cub Cadet 18.5HP Z-Force 42

16

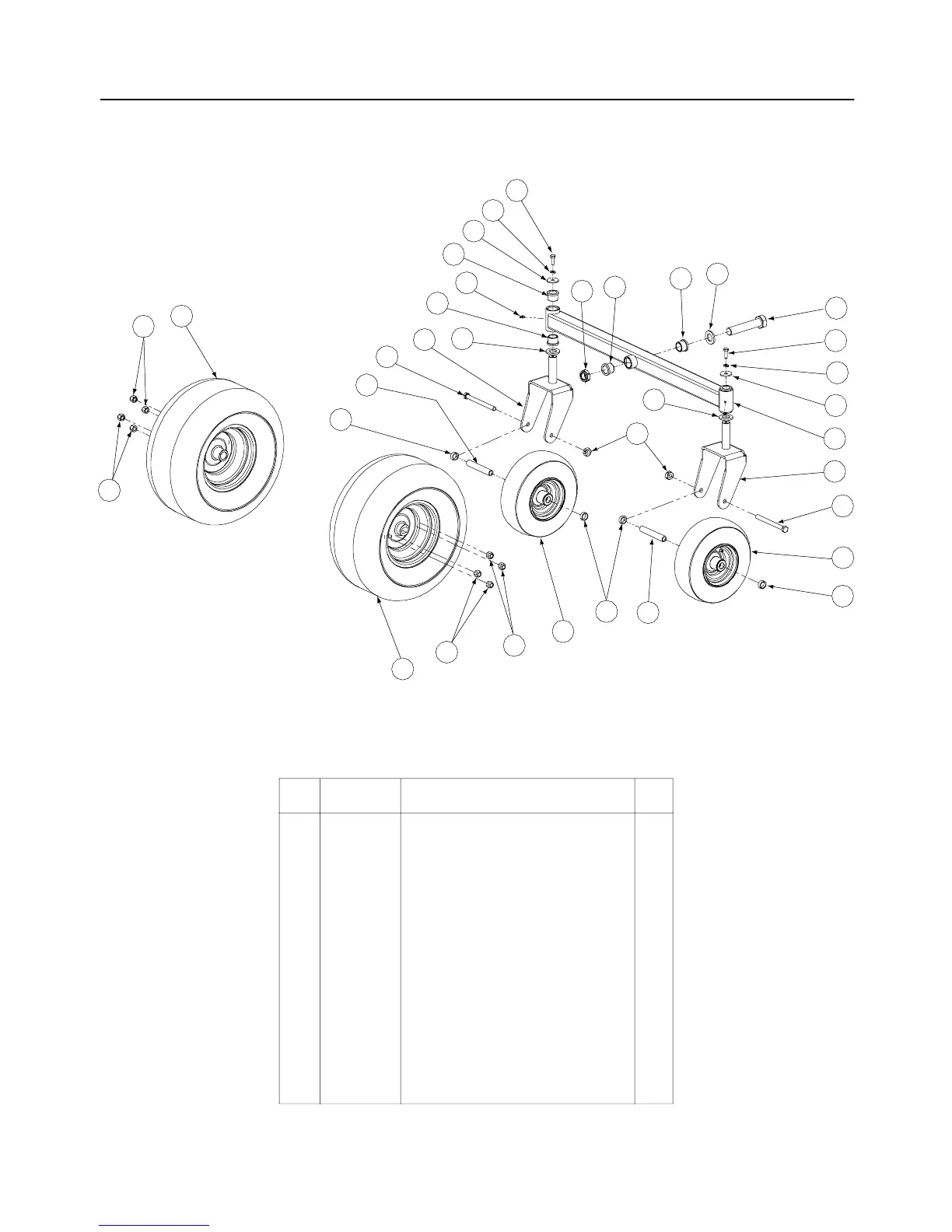

42" Front Caster & Tire Assembly
- Figure 7 and Parts List
Ref.
No. Part No. Description Qty.
1 00012157 Lock Washer, 3/8 Zinc 2
2 01000368 Hex Cap Screw, 3/8-16 x .88 2
3 00012187 Lug Nut, 1/2-20 8
4 00023822 Washer Special 3
5 00060078 Grease Fitting, 1/4-28 x 3/16 2
6 01000678 Nut Jam, 1.0-14, Nylon Insert 1
7 01000745 Hex Cap Screw, 1/2-20 x 5.50 2
8 00023287 Nut, 1/2-20, Center Lock 2
9 01006309 Hex Cap Screw, 1-14 x 5.0 1
10 01009827 Wheel Assembly, 18 x 6.5 2
11 01008405 Front Axle Assembly 1
12 634-3163 Front Wheel Assembly 2
13 01008550 Castor Wheel Mounting Bracket 2
14 731-0374 Flange Bearing, 1.0 ID 6
15 01009253 Flat Washer, .390 x 1.5 x .134 2
16 00023649 Spacer, .790 ID x .347 Lg 4
17 750-3197A Wheel Spacer 2
9
2
1
15
11
13
7
12
16
4
14
14
6
2
1
15
14
13
5
4
14
7
16
17
10
3
3
10
3
3
12
16
17
8
4
GD: 01009790-10/30/03
