PIVOT
BAR
ADJUSTMENT
BOLTS
A
CAUTION
The
tractor
must
be
checked
every
50
hours
of
tractor
operation
for
play
between
the
front
axle
and
the
pivot
bar
adjustment
bolts.
Both
adjustment
bolt
heads
must
fit
against
the
front
axle.
If
play
is
discovered,
the
pivot
bar
adjustment
bolts
must
be
adjusted.
If
play
is
discovered
between
the
front
axle
and
the
pivot
bar
adjustment
bolt
heads,
adjust
both
bolts
as
follows:
(See
Figure
29.)
1.
Loosen
jam
nut
3
to
4
turns
or
as
required.
2.
Turn
pivot
bar
adjustment
bolt
counterclockwise
until
it
hits
against
the
front
axle.
3.
Tighten
jam
nut.
4.
Repeat
the
above
steps
for
the
other
pivot
bar
adjustment
bolt.

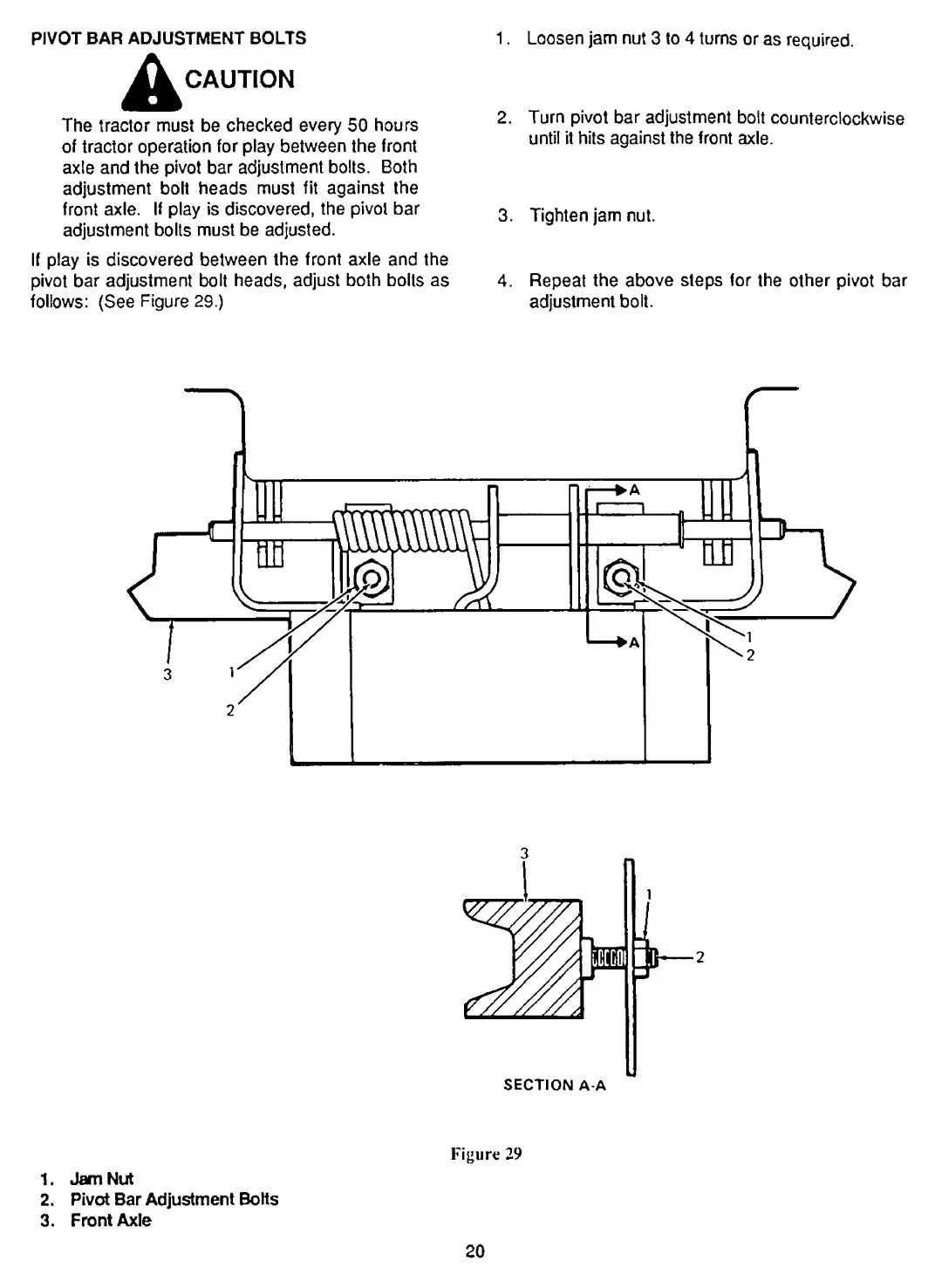

SECTION
A-A
Figure
29
1.
Jam
Nut
2.
Pivot
Bar
Adjustment
Bolts
3.
Front
Axle
20
