Cub Cadet 1864 User Manual

ADJUSTING THE POWER TAKE-OFF CLUTCH
A WARNING
To avoid possible injury, move speed control
lever into neutral, engage the brake lock and
turn the ignition "OFF" before working on the
machine.
WARNING
The clutch may be hot. Allow the engine
and clutch to cool before adjusting the
clutch.
The clutch is factory adjusted and should not require
further adjustment under normal operating conditions.
However, if the clutch fails to operate properly, check
as follows:
Using a feeler gauge, check the air gap. (See Figure
25.) Insert feeler gauge into one of three access slots
located around the outside of the brake plate. The air
gap should be .015 inch. Adjust the self-locking nuts
to obtain the proper clearance. Repeat the operation
in all three access slots.

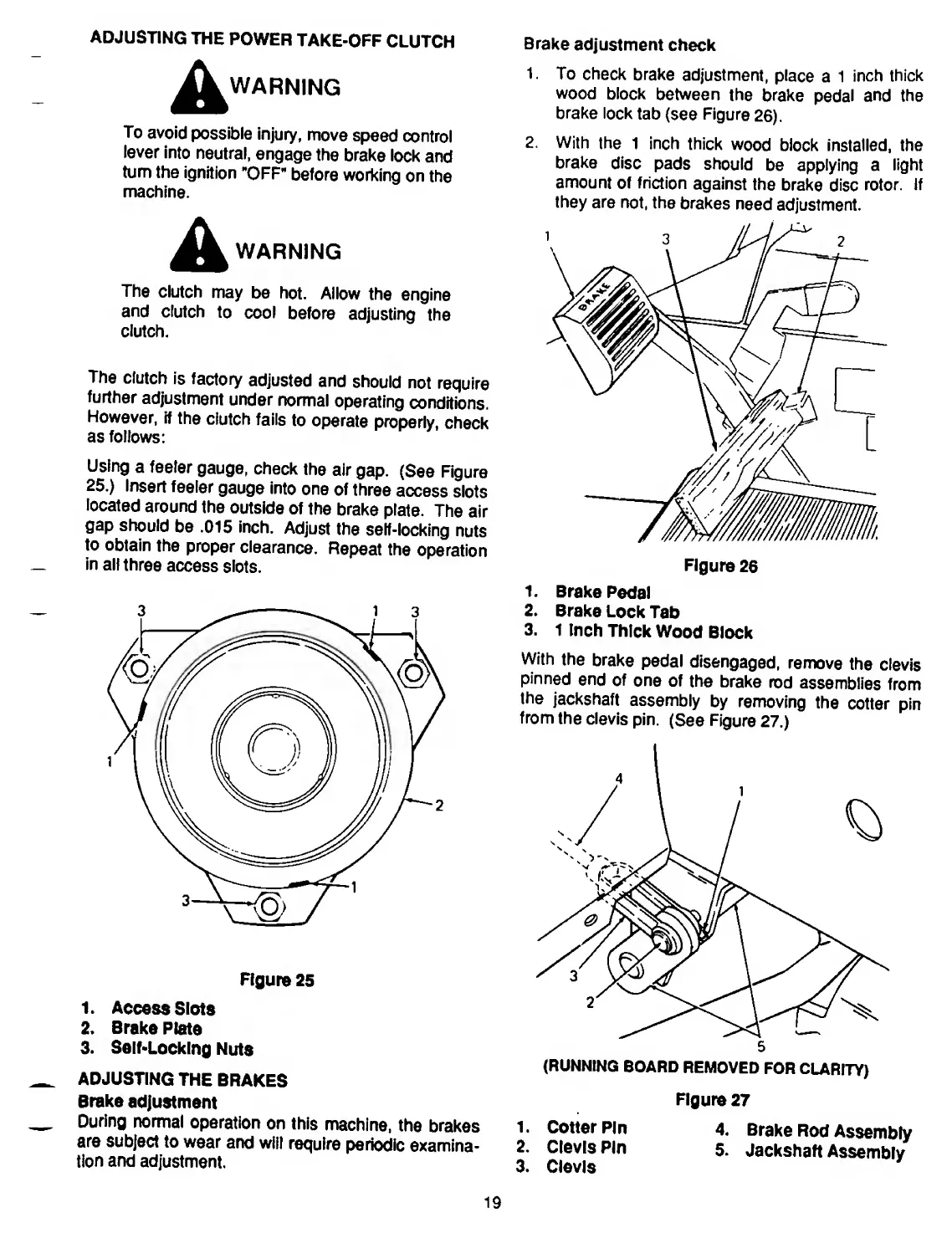

Figure 25
1. Access Slots
2. Brake Plate
3. Self-Locking Nuts
ADJUSTING THE BRAKES
Brake adjustment
During normal operation on this machine, the brakes
are subject to wear and will require periodic examina¬
tion and adjustment.
Brake adjustment check
1. To check brake adjustment, place a 1 inch thick
wood block between the brake pedal and the
brake lock tab (see Figure 26).
2. With the 1 inch thick wood block installed, the
brake disc pads should be applying a light
amount of friction against the brake disc rotor. If
they are not, the brakes need adjustment.
Figure 26
1. Brake Pedal
2. Brake Lock Tab
3. 11nch Thick Wood Block
With the brake pedal disengaged, remove the clevis
pinned end of one of the brake rod assemblies from
the jackshaft assembly by removing the cotter pin
from the clevis pin. (See Figure 27.)
Figure 27
1 . Cotter Pin 4. Brake Rod Assembly
2. Clevis Pin 5. Jackshaft Assembly
3. Clevis
19

Cub Cadet 1864 Specifications

General

Displacement	624 cc
Fuel Type	Gasoline
Transmission Type	Hydrostatic
Chassis	4x2 2WD
Drive	2WD
Steering	Manual
Front Tire Size	16x6.50-8
Rear Tire Size	23x10.50-12
Horsepower	18 hp
Wheelbase	121 cm
Width	96 cm
PTO	Independent
