Cub Cadet 1864 User Manual

CAUTION
If hydraulic fluid is to be reused, cover con*
tainer holding drained fluid to prevent con*
tamination. Contaminated hydraulic fluid
can damage your unit.
Remove the throw-away-can-type filter and replace
with a new filter after the first 10 and 50 hours of
operation, and every 100 hours of operation
thereafter. The filters can be obtained through your
Cub Cadet Dealer under Part Number 723-3014.
To remove the filter, turn the filter counterclockwise
using an automotive-type filter wrench.
Before installing the new filter, apply a coating of clean
oil on the filter gasket. Thread the new filter on by
hand until tight enough to seat the gasket. Loosen the
filter. Then turn it until the gasket contacts the base.
Tighten the filter an additional 1/2 turn. Fill rear
transmission case to proper level on dipstick with Cub
Cadet hydraulic fluid. Start engine and allow it to run
for a few minutes. Shut engine off and check for
leaks; check oil level in transmission case.
AIR CLEANER
— Servicing Foam Pre-Cleaner Element
Clean and reoil foam pre-cleaner element at 1-month
intervals or every 10 hours, whichever occurs first.

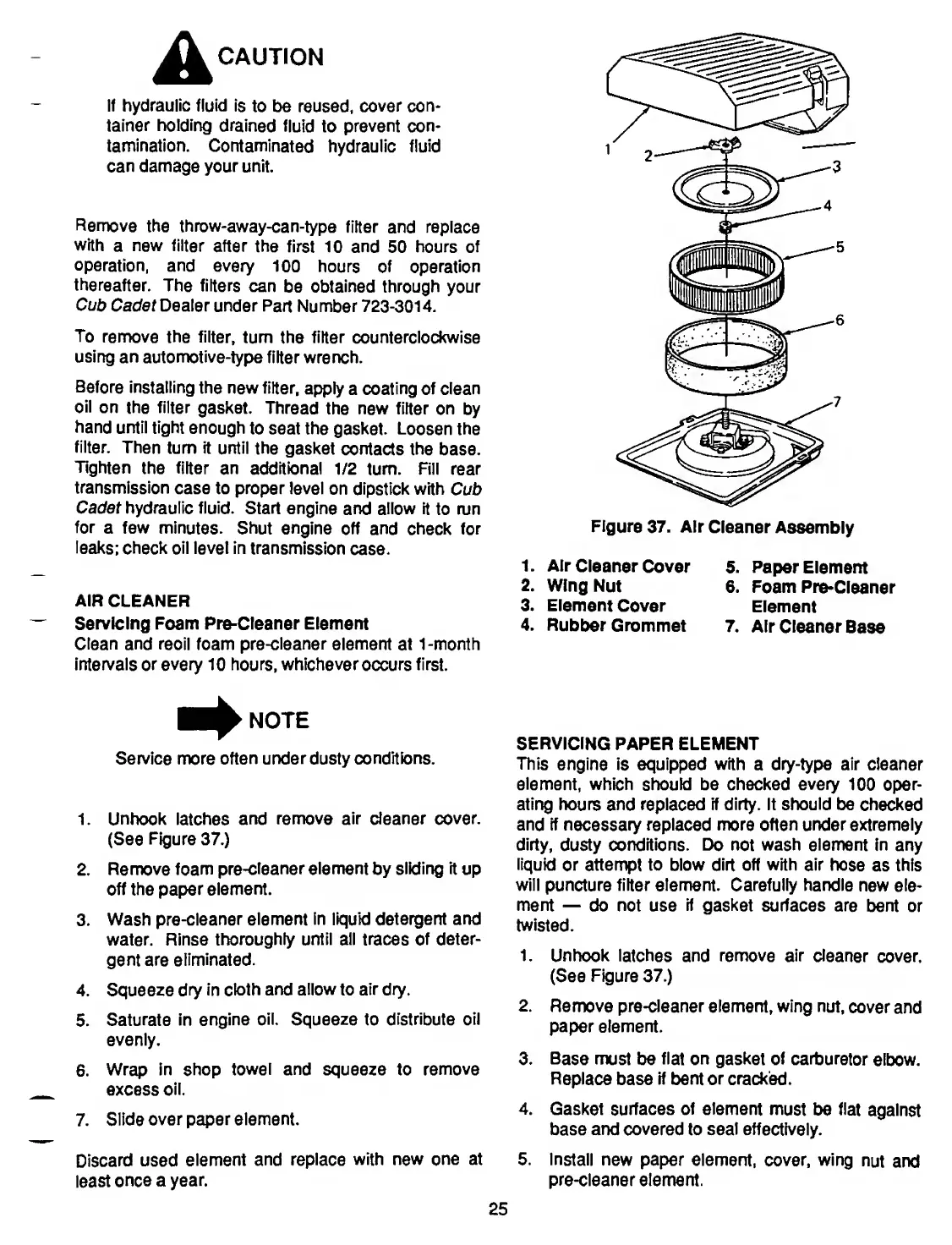

Figure 37. Air Cleaner Assembly
1. Air Cleaner Cover
2. Wing Nut
3. Element Cover
4. Rubber Grommet
5. Paper Element
6. Foam Pre-Cleaner
Element
7. Air Cleaner Base
■ ^NOTE
Service more often under dusty conditions.
1. Unhook latches and remove air cleaner cover.
(See Figure 37.)
2. Remove foam pre-cleaner element by sliding it up
off the paper element.
3. Wash pre-cleaner element in liquid detergent and
water. Rinse thoroughly until all traces of deter¬
gent are eliminated.
4. Squeeze dry in cloth and allow to air dry.
5. Saturate in engine oil. Squeeze to distribute oil
evenly.
6. Wrap in shop towel and squeeze to remove
excess oil.
7. Slide over paper element.
Discard used element and replace with new one at
least once a year.
SERVICING PAPER ELEMENT
This engine is equipped with a dry-type air cleaner
element, which should be checked every 100 oper¬
ating hours and replaced If dirty. It should be checked
and if necessary replaced more often under extremely
dirty, dusty conditions. Do not wash element in any
liquid or attempt to blow dirt off with air hose as this
will puncture filter element. Carefully handle new ele¬
ment — do not use if gasket surfaces are bent or
twisted.
1. Unhook latches and remove air cleaner cover.
(See Figure 37.)
2. Remove pre-cleaner element, wing nut, cover and
paper element.
3. Base must be flat on gasket of carburetor elbow.
Replace base if bent or cracked.
4. Gasket surfaces of element must be flat against
base and covered to seal effectively.
5. Install new paper element, cover, wing nut and
pre-cleaner element.
25

Cub Cadet 1864 Specifications

General

Displacement	624 cc
Fuel Type	Gasoline
Transmission Type	Hydrostatic
Chassis	4x2 2WD
Drive	2WD
Steering	Manual
Front Tire Size	16x6.50-8
Rear Tire Size	23x10.50-12
Horsepower	18 hp
Wheelbase	121 cm
Width	96 cm
PTO	Independent
