Cub Cadet 1864 User Manual

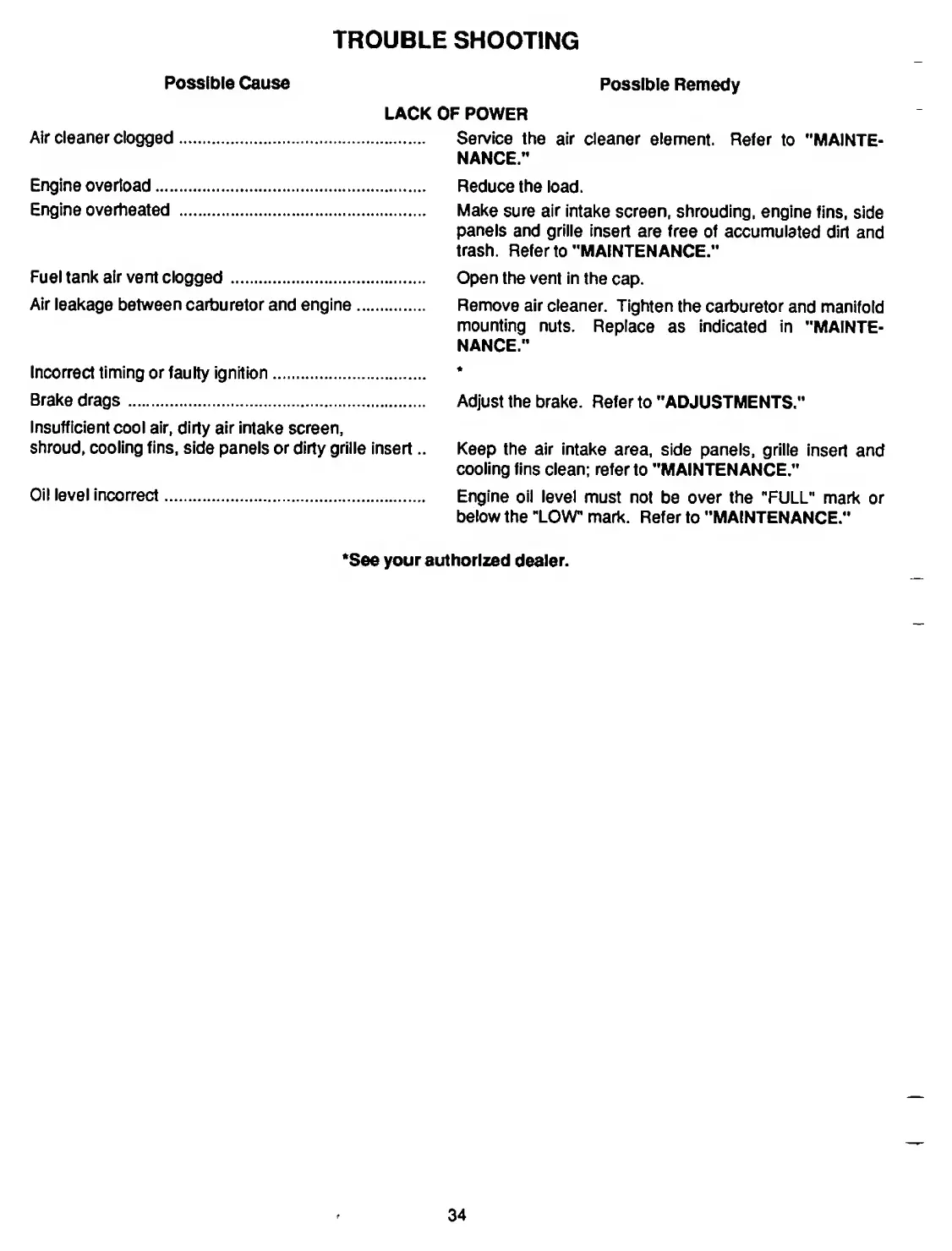

TROUBLE SHOOTING
Possible Cause Possible Remedy
LACK OF POWER
Service the air cleaner element. Refer to "MA1NTE-
Afr cleaner clogged.
Engine overload.
Engine overheated .
Fuel tank air vent clogged.
Air leakage between carburetor and engine.
Incorrect timing or faulty ignition.
Brake drags.
Insufficient cool air, dirty air intake screen,
shroud, cooling fins, side panels or dirty grille insert..
NANCE.”
Reduce the load.
Make sure air intake screen, shrouding, engine fins, side
panels and grille insert are free of accumulated dirt and
trash. Refer to "MAINTENANCE."
Open the vent in the cap.
Remove air cleaner. Tighten the carburetor and manifold
mounting nuts. Replace as indicated in "MAINTE¬
NANCE."
Adjust the brake. Refer to "ADJUSTMENTS."
Keep the air intake area, side panels, grille insert and
cooling fins clean; refer to "MAINTENANCE."
Engine oil level must not be over the "FULL” mark or
below the "LOW" mark. Refer to "MAINTENANCE."
Oil level incorrect
*See your authorized dealer.
34

Cub Cadet 1864 Specifications

General

Displacement	624 cc
Fuel Type	Gasoline
Transmission Type	Hydrostatic
Chassis	4x2 2WD
Drive	2WD
Steering	Manual
Front Tire Size	16x6.50-8
Rear Tire Size	23x10.50-12
Horsepower	18 hp
Wheelbase	121 cm
Width	96 cm
PTO	Independent
