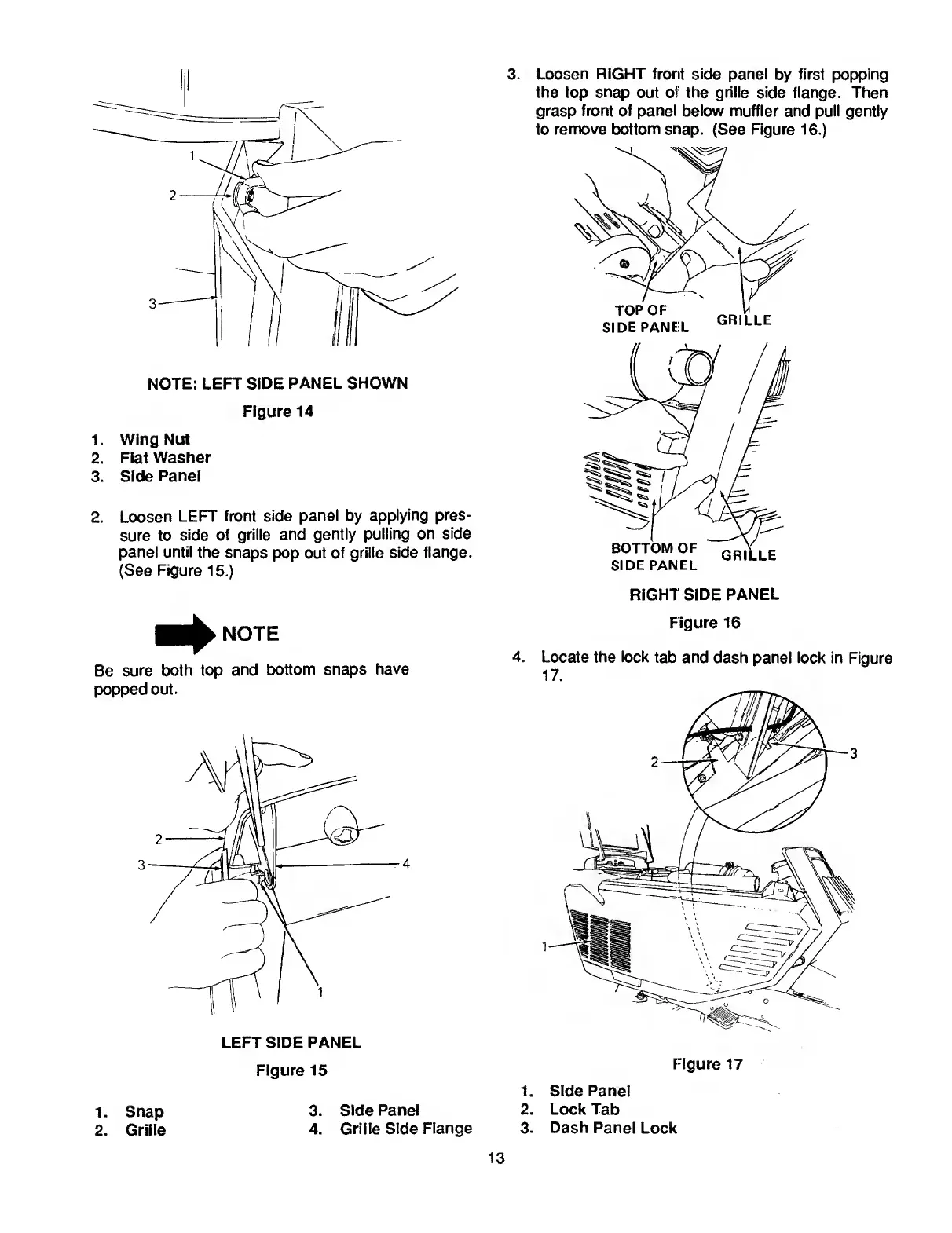

Cub Cadet 2182

NOTE: LEFT SIDE PANEL SHOWN
Figure 14
1. Wing Nut
2. Flat Washer
3. Side Panel
2. L oosen LEFT front side panel by applying pres¬
sure to side of grille and gently pulling on side
panel until the snaps pop out of grille side flange.
(See Figure 15.)
■ ^note
Be sure both top and bottom snaps have
popped out.
LEFT SIDE PANEL
Figure 15
3. Side Panel
4. Grille Side Flange
3. Loosen RIGHT front side panel by first popping
the top snap out of the grille side flange. Then
grasp front of panel below muffler and pull gently
to rerrwve bottom snap. (See Figure 16.)
RIGHT SIDE PANEL
Figure 16
4. L ocate the lock tab and dash panel lock in Figure
Figure 17
1. Snap
2. Grille
13
1. Side Panel
2. Lock Tab
3. Dash Panel Lock
