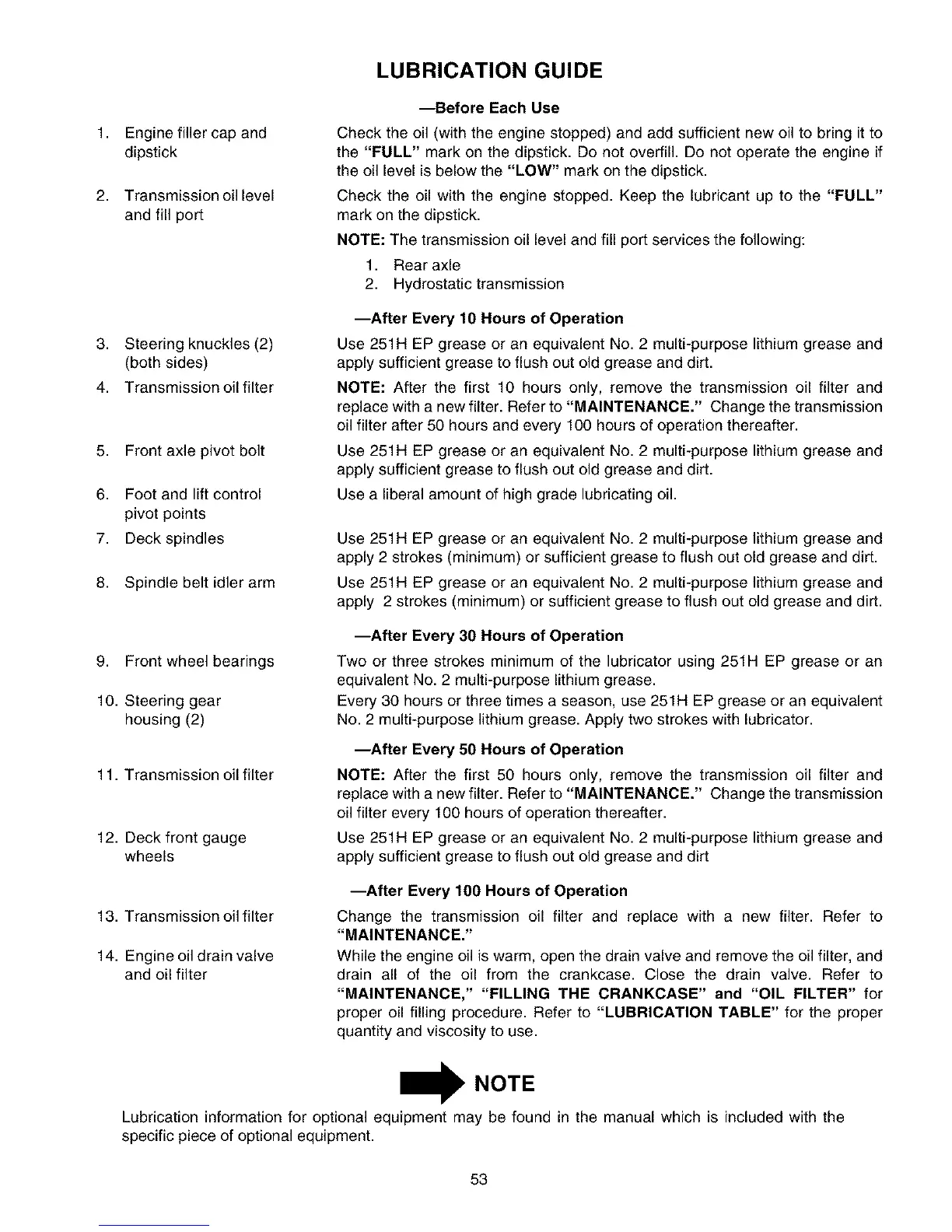

LUBRICATION GUIDE
1. Engine filler cap and
dipstick
2. Transmission oil level
and fill port
3. Steering knuckles (2)
(both sides)
4. Transmission oil filter
5. Front axle pivot bolt
6. Foot and lift control
pivot points
7. Deck spindles
8. Spindle belt idler arm
9. Front wheel bearings
10. Steering gear
housing (2)
11. Transmission oil filter
12. Deck front gauge
wheels
13. Transmission oil filter
14. Engine oil drain valve
and oil filter
--Before Each Use
Check the oil (with the engine stopped) and add sufficient new oil to bring it to
the "FULL" mark on the dipstick. Do not overfill. Do not operate the engine if
the oil level is below the "LOW" mark on the dipstick.
Check the oil with the engine stopped. Keep the lubricant up to the "FULL"
mark on the dipstick.
NOTE: The transmission oil level and fill port services the following:
1. Rear axle
2. Hydrostatic transmission
--After Every 10 Hours of Operation
Use 251H EP grease or an equivalent No. 2 multi-purpose lithium grease and
apply sufficient grease to flush out old grease and dirt.
NOTE: After the first 10 hours only, remove the transmission oil filter and
replace with a new filter. Refer to "MAINTENANCE." Change the transmission
oil filter after 50 hours and every 100 hours of operation thereafter.
Use 251H EP grease or an equivalent No. 2 multi-purpose lithium grease and
apply sufficient grease to flush out old grease and dirt.
Use a liberal amount of high grade lubricating oil.
Use 251H EP grease or an equivalent No. 2 multi-purpose lithium grease and
apply 2 strokes (minimum) or sufficient grease to flush out old grease and dirt.
Use 251H EP grease or an equivalent No. 2 multi-purpose lithium grease and
apply 2 strokes (minimum) or sufficient grease to flush out old grease and dirt.
--After Every 30 Hours of Operation
Two or three strokes minimum of the lubricator using 251H EP grease or an
equivalent No. 2 multi-purpose lithium grease.
Every 30 hours or three times a season, use 251H EP grease or an equivalent
No. 2 multi-purpose lithium grease. Apply two strokes with lubricator.
--After Every 50 Hours of Operation
NOTE: After the first 50 hours only, remove the transmission oil filter and
replace with a new filter. Refer to "MAINTENANCE." Change the transmission
oil filter every 100 hours of operation thereafter.
Use 251H EP grease or an equivalent No. 2 multi-purpose lithium grease and
apply sufficient grease to flush out old grease and dirt
--After Every 100 Hours of Operation
Change the transmission oil filter and replace with a new filter. Refer to
"MAINTENANCE."
While the engine oil is warm, open the drain valve and remove the oil filter, and
drain all of the oil from the crankcase. Close the drain valve. Refer to
"MAINTENANCE," "FILLING THE CRANKCASE" and "OIL FILTER" for
proper oil filling procedure. Refer to "LUBRICATION TABLE" for the proper
quantity and viscosity to use.
I NOTE
Lubrication information for optional equipment may be found in the manual which is included with the
specific piece of optional equipment.
