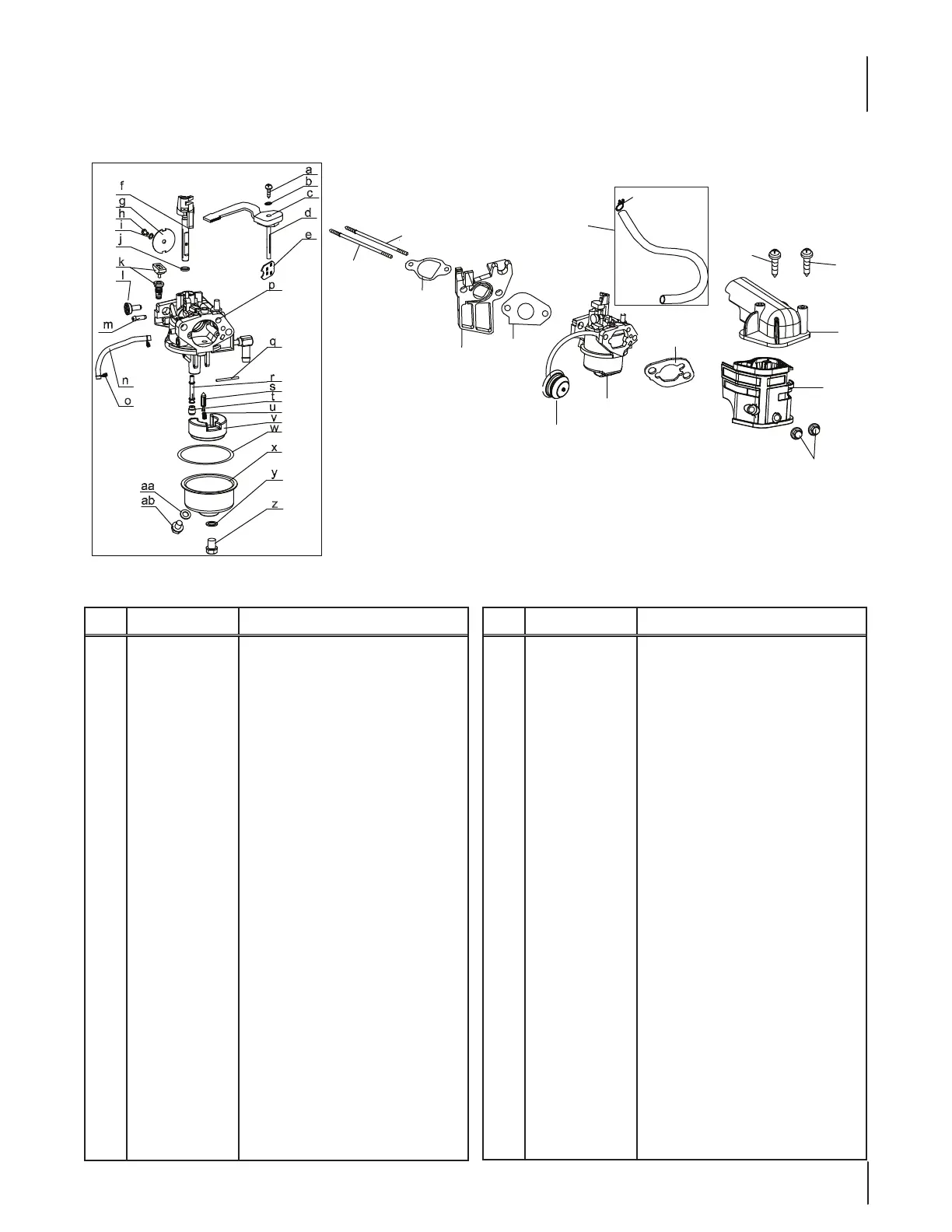

370-JU-11 Carburetor
Ref.
Part Number Description
26 710-05101 Stud M6×110
27 951-11567 Carburetor Insulator Gasket
28 951-1156 8 Carburetor Insulator
29 951-11569A Carburetor Gasket
30 951-10639A Primer Assembly
30 951-11824 Primer Bulb
31 951-12098 Carburetor Assembly
32 951-11731 Fuel Hose Clamp
33 951-12012 Fuel Line Kit
35 951-11571 Carburetor Gasket Plate
37 712-04213 Nut
38 951-10962 Air Cleaner Housing
39 951-10961 Air Cleaner Assembly
40 710-05275 Self-Tapping Bolt M4.2×16
a 710-05369 Screw M3×5
b 736-04598 Washer
c 751-12515 Control Lever,Choke
d n/a Choke Shaft
e n/a Choke Plate
f n/a Throttle Shaft
g n/a Throttle Plate
h n/a Screw M3×5
Ref.
Part Number Description
i n/a Lock Washer
j n/a Idle Jet Assembly
k n/a Gasket, Throttle Plate
l n/a Idle Speed Adjusting Screw
m n/a Mixture Screw
n 951-12019 Primer Hose
o 951-11906 Hose Clamp
p n/a Carburetor Body
q n/a Float Pin
r n/a Emulsion Tube
s n/a Needle Valve
t n/a Main Jet
u n/a Needle Valve Spring
v n/a Float
w 951-115 89 Fuel Bowl Gasket
x n/a Fuel Bowl
y 951-1134 8 Fuel Bowl Gasket
z 710-04945 Fuel Bowl Mounting Bolt
aa 951-11349 Fuel Drain Plug Gasket
ab 710-04938 Fuel Drain Plug
951-11021A Carburetor Kit - Major
(Incl.aa,j,k,l,q,r,s,t,u,v,w,y,)
