8 se c t i O n 3— as s e M b l y & se t -up

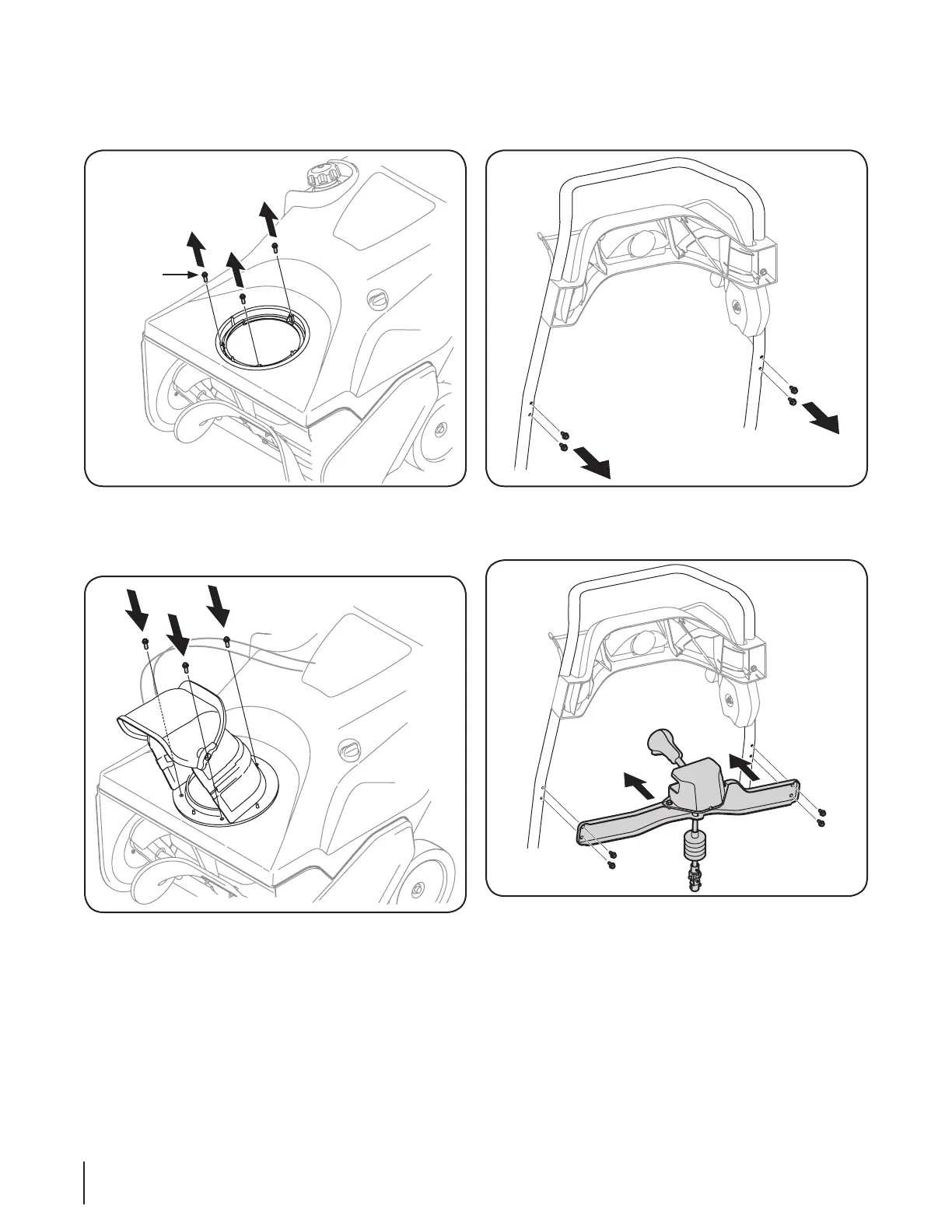

Installing the Chute Rotation Control Assembly
Remove the four hex washer screws from the back of the 1.
handle (two on each side). See Fig. 3-6.
Using the four hex washer screws, install the chute rotation 2.
control assembly. See Fig. 3-7.
Installing the Chute
Remove the hex washer screws in the chute base. See Fig. 1.
3-4.
Align the holes in the chute base with the holes in the 2.
lower chute and secure with the previously removed hex
washer screws. See Fig. 3-5.
Figure 3-4
Figure 3-5
Figure 3-7
Figure 3-6
