Cub Cadet 5234D User Manual

30

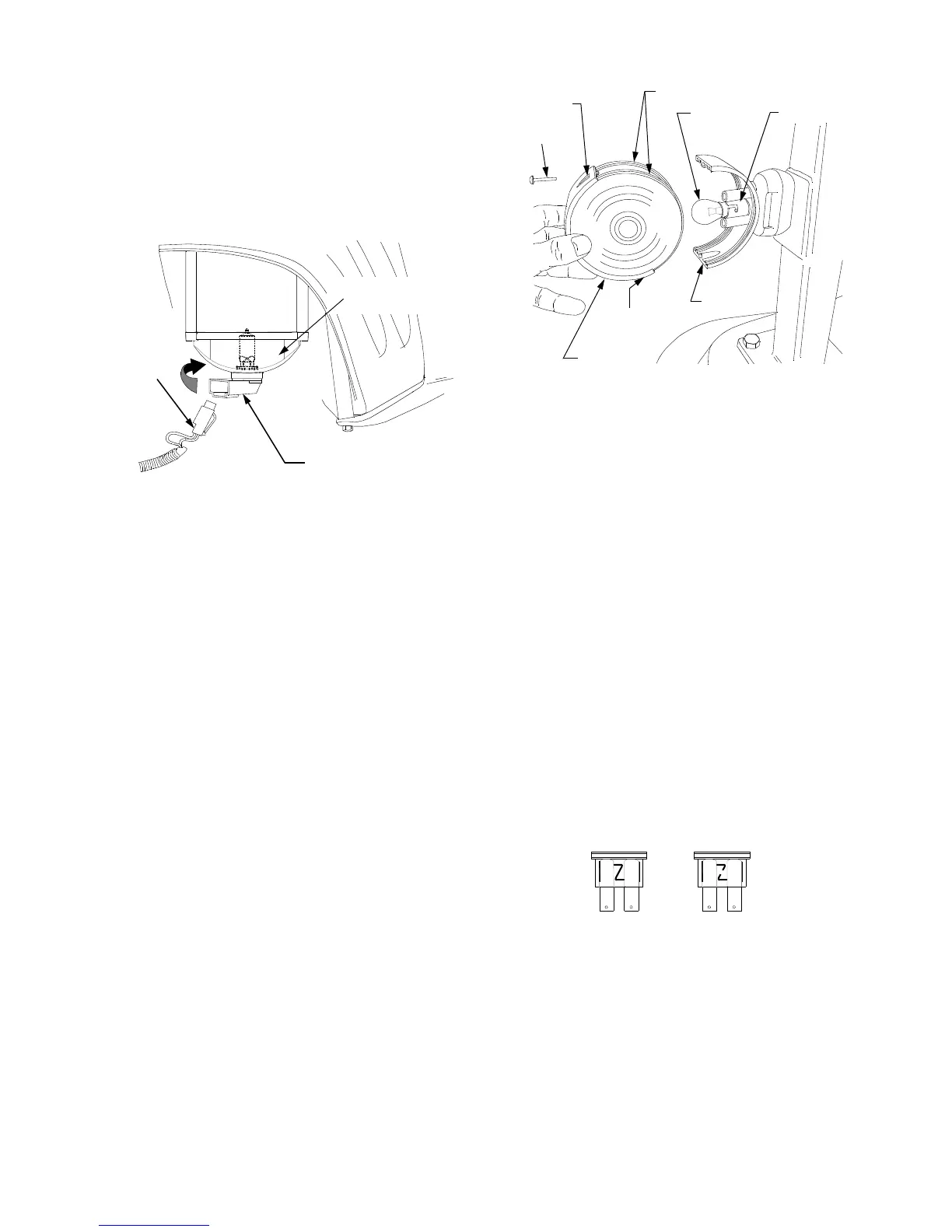

HEAD LIGHT BULB REPLACEMENT
The tractor is equipped with headlights. If one of the
bulbs should burn out, replace the bulb as follows:
• Fully raise the hood.
• Pull the wire harness plug from the bulb/socket
assembly to unplug the wire harness. See
Figure 34.
Figure 34
• Turn the bulb/socket assembly approximately a
quarter turn counterclockwise to align its tabs
with the notches of the reflector, then remove
from the reflector.
• Replace with a new bulb/socket assembly (Cub
Cadet No. 725-04084).
• Align the tabs of the new bulb/socket assembly
with the notches of the reflector and insert the
bulb.
• Turn the bulb/socket assembly clockwise to
lock in place. Push the wire harness plug fully
into the bulb socket.
HAZARD BULB REPLACEMENT
Flashing hazard lights are installed on each side of
the ROPS. Replace the bulbs as follows:
• Grasp the outer half of the light housing and
both the front and rear lenses. Accessing the
screws from the notches at the top and bottom
of the outer housing, remove the two screws
fastening the outer and inner housings
together. See Figure 35.
Figure 35
• Remove the outer housing and lenses.
• Push in on the bulb and turn counterclockwise
to remove the bulb from the light socket.
• Align the new bulb with the socket slot, push
the bulb into the socket, and turn clockwise to
lock it in the socket.
• While making certain the lenses engage the
front and rear grooves of the inner housing,
install the lenses and outer housing. Secure
with the two screws.
SERVICING ELECTRICAL SYSTEM
Fuses are installed to protect the tractor’s electrical
system from damage caused by excessive amper-
age. Always use the same capacity fuse for
replacement. If the electrical system does not func-
tion, check for blown fuses. See Figure 36
If you have a recurring problem with blown fuses,
have the tractor’s electrical system checked by your
Cub Cadet dealer.
Figure 36
BULB/SOCKET
ASSEMBLY
WIRE
HARNESS
PLUG
REFLECTOR
OUTER
HOUSING
INNER
HOUSING
BULB
LENSES
SOCKET
NOTCH
NOTCH
SCREW
GOOD
BAD

Cub Cadet 5234D Specifications

General

Brand	Cub Cadet
Model	5234D
Category	Tractor
Language	English
