9Section 3 — controlS & operation
(A)
(B)
(E)
(F)
(H)
(C)
(D)
(Q)
(I)
(J)
(K)
(N)
(L)
(M)
(O)
(P)
(G)
1
16
15
14
13
9
8
7
6
5
4
3
2
10
11
12
Q
20
19
18
17

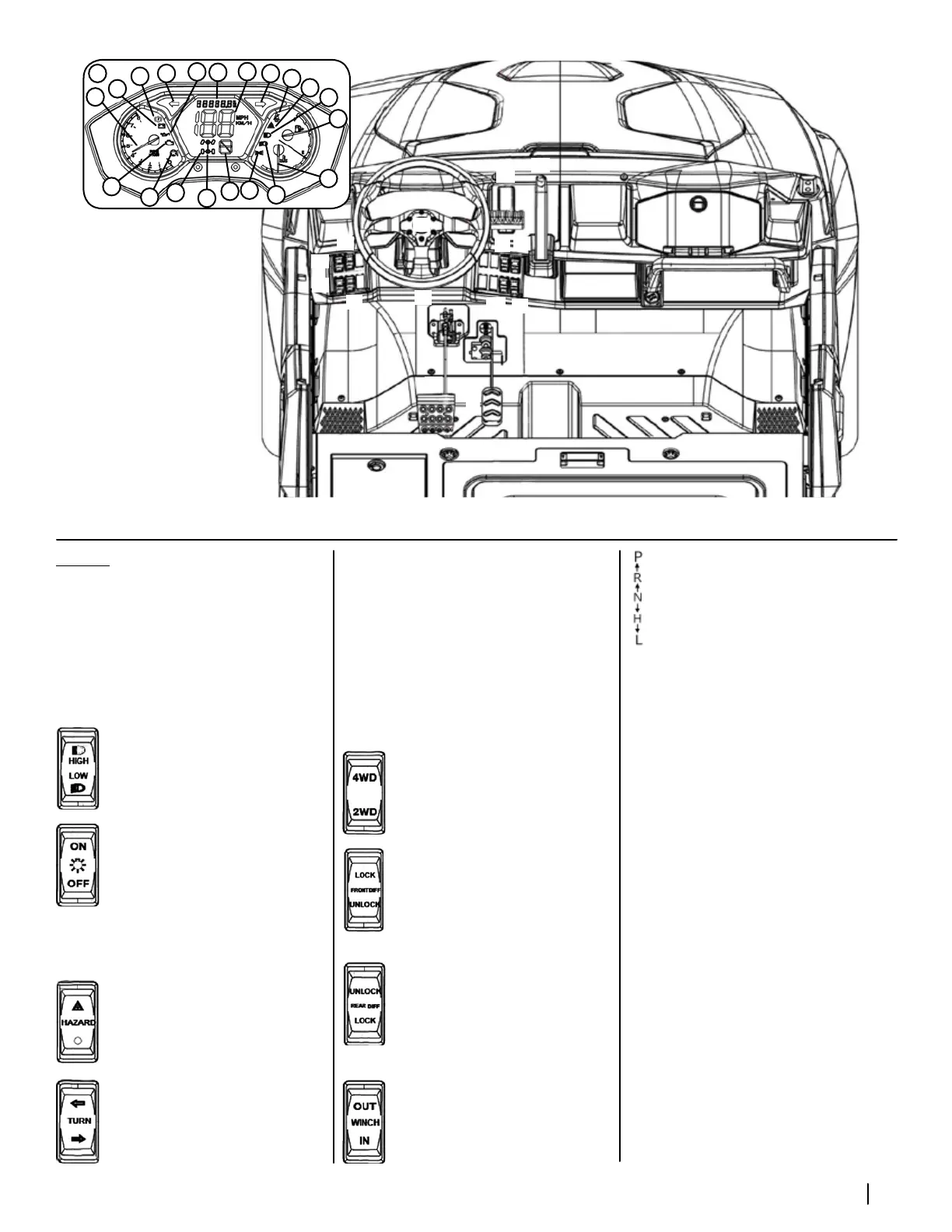

Figure 3-2
Controls
Refer to Figure 3-2 for location and information of
the controls described below.
Steering Wheel (A)
The steering wheel is used to control the direction
of the utility vehicle.
Ignition (Not shown)
The Ignition is located on the right side of the
steering column.
High Beam Switch (B)
The high beam switch is used to turn the
high beams on the headlights “ON” and
“OFF.’
Headlight/Tail light Switch (C)
The headlight/tail light switch turns the
headlights, instrument cluster lights and
tail lights “ON” and “OFF.”
Horn (D)
The horn activates the horn under the hood when
depressed.
Hazard Switch (E)
The hazard switch turns the hazards “ON”
and “OFF.”
Turn Signal Switch (F)
The turn signal switch controls the turn
signals and activates the LH or RH turn
signals.
Shift Lever (N)
The shift lever changes the gears of the utility
vehicle between park (“P”), reverse (“R”),
neutral (“N”), high (“H”) and low (“L”).
Parking Brake Lever (O)
The parking brake lever activates the utility
vehicles parking brake.
Glove Box (P)
The glove box is a small storage area in the dash on
the passenger side of the utility vehicle.
Instrument Cluster (Q)
The instrument cluster contains:
1 - Tachometer 11 - Differential Lock Indicator
2 - Parking Brake Indicator 12 - 2WD/4WD Indicator
3 - Battery Indicator 13 - Gear Indicator
4 - Oil Pressure Indicator 14 - Seat Belt Indicator
5 - Engine Indicator 15 - Hazards
6 - EPS System Fault * 16 - High Beam Indicator
7 - Left Turn Signal 17 - Fuel Gauge
8 - Right Turn Signal 18 - Coolant Temperature
9 - Hour Meter 19 - Low Beam Indicator
10 - Speedometer 20 - Light Indicator
* -- If Equipped
12V Power Outlet (G)
The 12V power outlet is used for the convenience
of plugging in accessories that require a power
source with a maximum load of 5A at 12V.
Brake Pedal (H)
The brake pedal is used to slow down/stop the
utility vehicle.
Gas Pedal (I)
The gas pedal is used to control the speed of the
utility vehicle.
2WD/4WD Switch (J)
The 2WD/4WD switch is used to switch
between 2WD and 4WD.
Front Axle Differential Switch (K)
The front axle differential switch can
“LOCK” or “UNLOCK” the front axle
differential.
Rear Axle Differential Switch (L)
The rear axle differential switch can
“LOCK” or “UNLOCK” the rear axle
differential.
Winch Control (M)
The winch control releases cable on the
winch (“OUT”) or pulls the cable in (“IN”).
