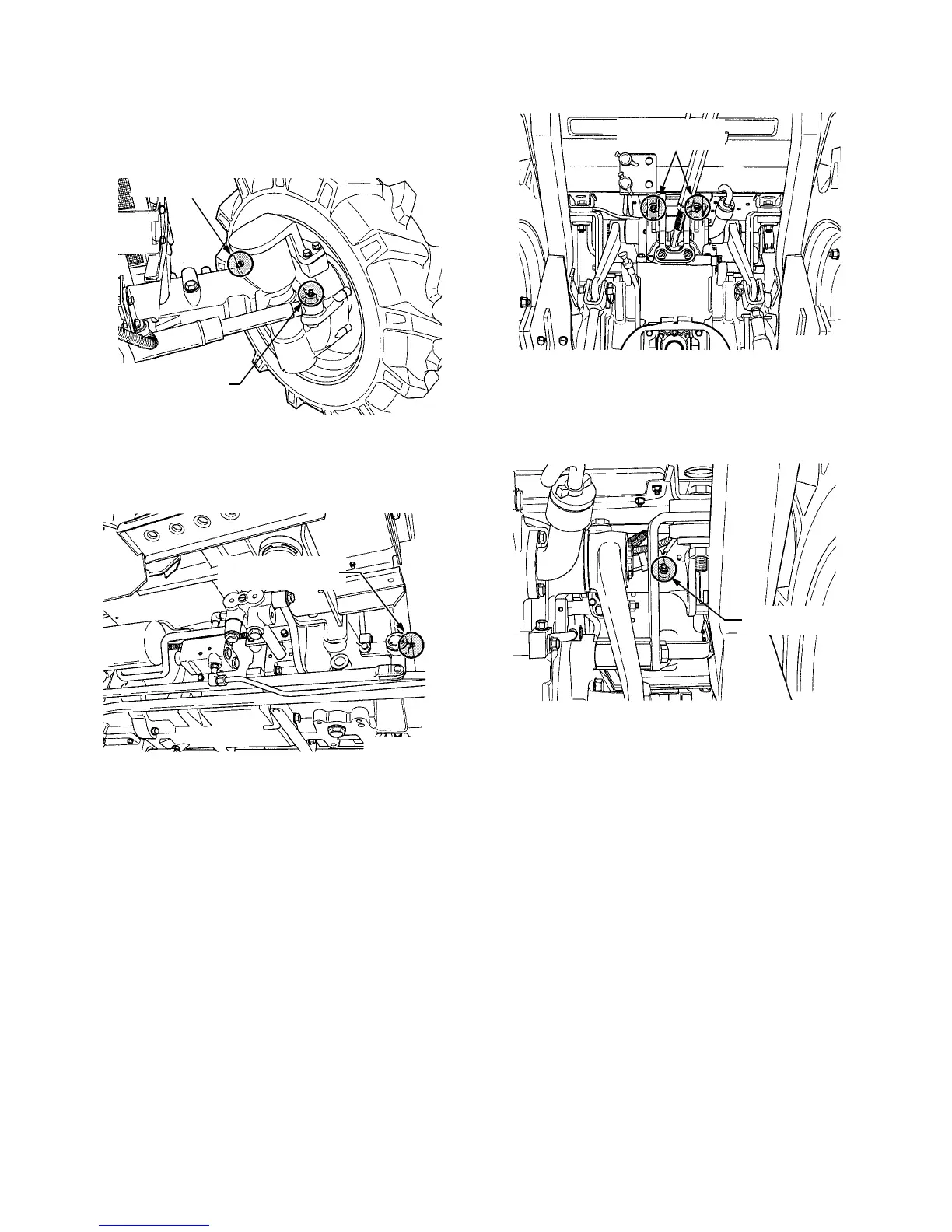

• Steering cylinders (inner and outer - both sides).
See Figure 71.
• Top of front axle final drive (each side). See
Figure 71.
Figure 71
• Brake pedal shaft (both sides). See Figure 72.
Figure 72
• 3 Point top link holder (each side). See Figure 73.
Figure 73
• Position lever support housing. See Figure 74.
Figure 74
Periodically apply grease to both seat slides and to
the threads of the right hand lift link to lubricate and
prevent rust.
Steering Cylinder
LH Outer Lube Fitting
Final Drive
Lube Fitting
Brake Pedal Shaft
Lube Fitting
Top Link Holder
Lube Fitting
Support Housing
Lube Fitting
