Chute Assembly
Loosen, but do not remove, the chute crank bracket in 1.
order to attached the chute assembly. See Fig. 3-4.
Remove lock nuts and screws securing one of the flange 2.
keepers to the chute assembly. Loosen the fasteners of the
other two flange keepers. See Figure 3-4.
Place chute assembly onto chute base as shown in Figure 3.
3-3. Make sure that the chute notches engage with the
spiral end of chute directional control, and the two flange
keepers are beneath the flange on the chute base.
Secure flange keeper removed earlier with lock nuts and 4.
screws. Tighten down nuts securing the other two flange
keepers. See Figure 3-4.
Re-tighten the hardware securing the chute crank bracket. 5.
Check that the chute cables are properly routed through 6.
the cable guide on top of engine shroud. See Figure 3-5.

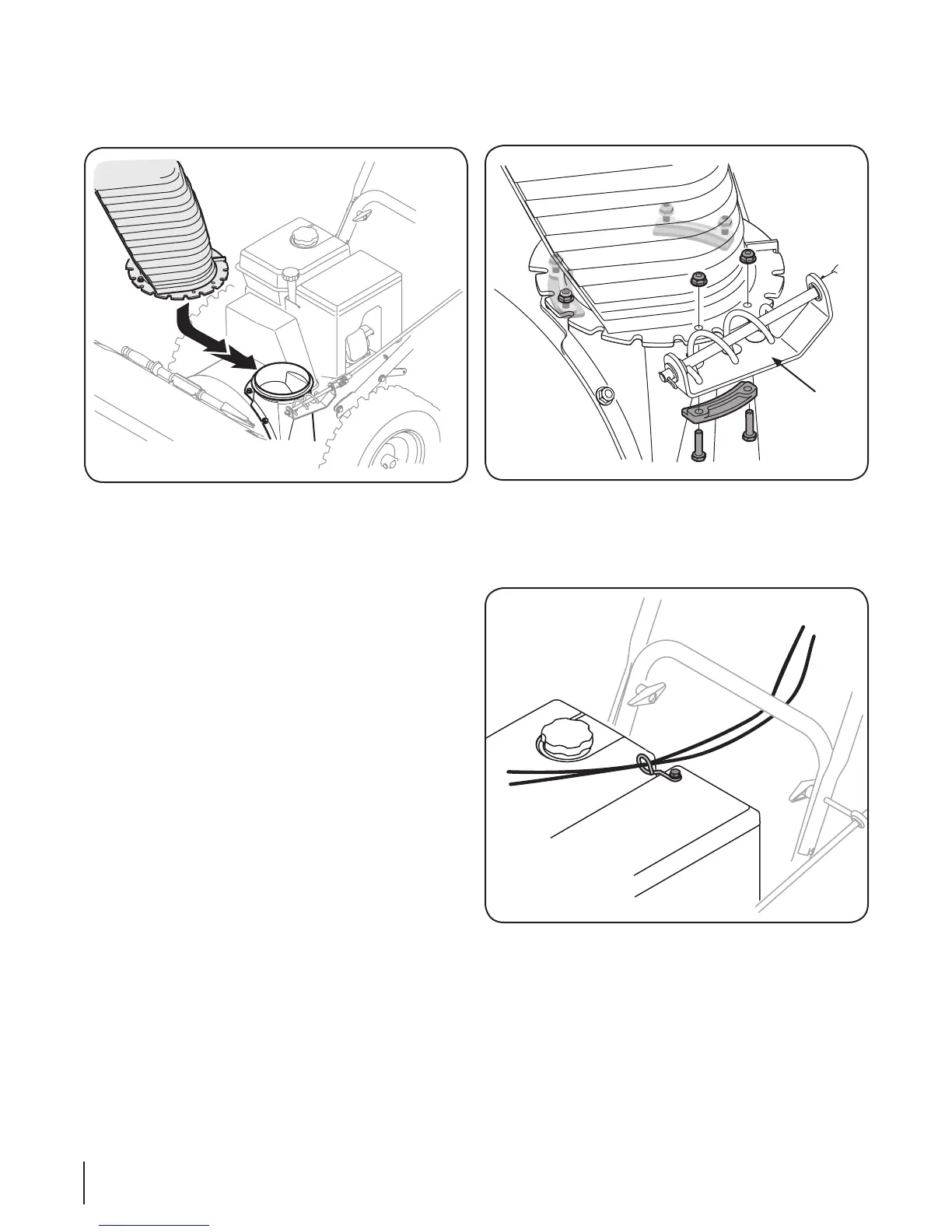

Figure 3-3
Figure 3-4
Figure 3-5
8 se c t i O n 3— as s e M b l y & se t -up
