Cub Cadet CC-1000PS - Exploded View and Parts List; Exploded Diagram; Parts Identification

ohiosteel.com/partsstore OHIO STEEL INDUSTRIES 1-800-652-2321
3 3
1
2
6 24 25
22
24
26
4
4
5
23
8
9
10
11
12
13
15
16
17
19
18
14
17
13
7
21
20
27
ITEM PART NO DESCRIPTION QTY ITEM PART NO DESCRIPTION QTY
1 311161 POLY BODY 1 15
KIT
6001663-BY
3/8-16 x 3" HEX BOLT 1
2 6000404-B2 UNDERCARRIAGE 1 16 3/8-16 x 3-1/2" HEX BOLT 2
3
KIT 6004321
5/16-18 x 1-1/2" HEX BOLT 12 17 BUSHING 2
4 5/16-18 LOCK NUT 12 18 LATCH 1
5 6000310-B2 Front Support 1 19 LATCH SPRING 2
6 300002 AXLE 1 20 SPRING LOADED HITCH 1
7
KIT
6001663-BY
WELDED DRAWBAR 1 21 3/8-16 x 3/4" HEX BOLT 1
8 SHOULDER BOLT 1 22 6002415-1-C WHEEL (BUSHINGS INC.) 2
9 SPRING WASHER 1 23
KIT
6004324
3-1/8" SPACER 1
10 SWIVEL CLEVIS 1 24 1" SAE FLAT WASHER 4
11 1/2" USS WASHER 1 25 2" SPACER 2
12 3/8" USS FLAT WASHER 1 26 HAIRPIN COTTER, 2-5/16" 2
13 3/8-16 C-LOCK NUT 5
27
KIT
6000810
REPLACEMENT BUSHINGS
(SET OF 4)
-
14 FOOT PEDAL 1

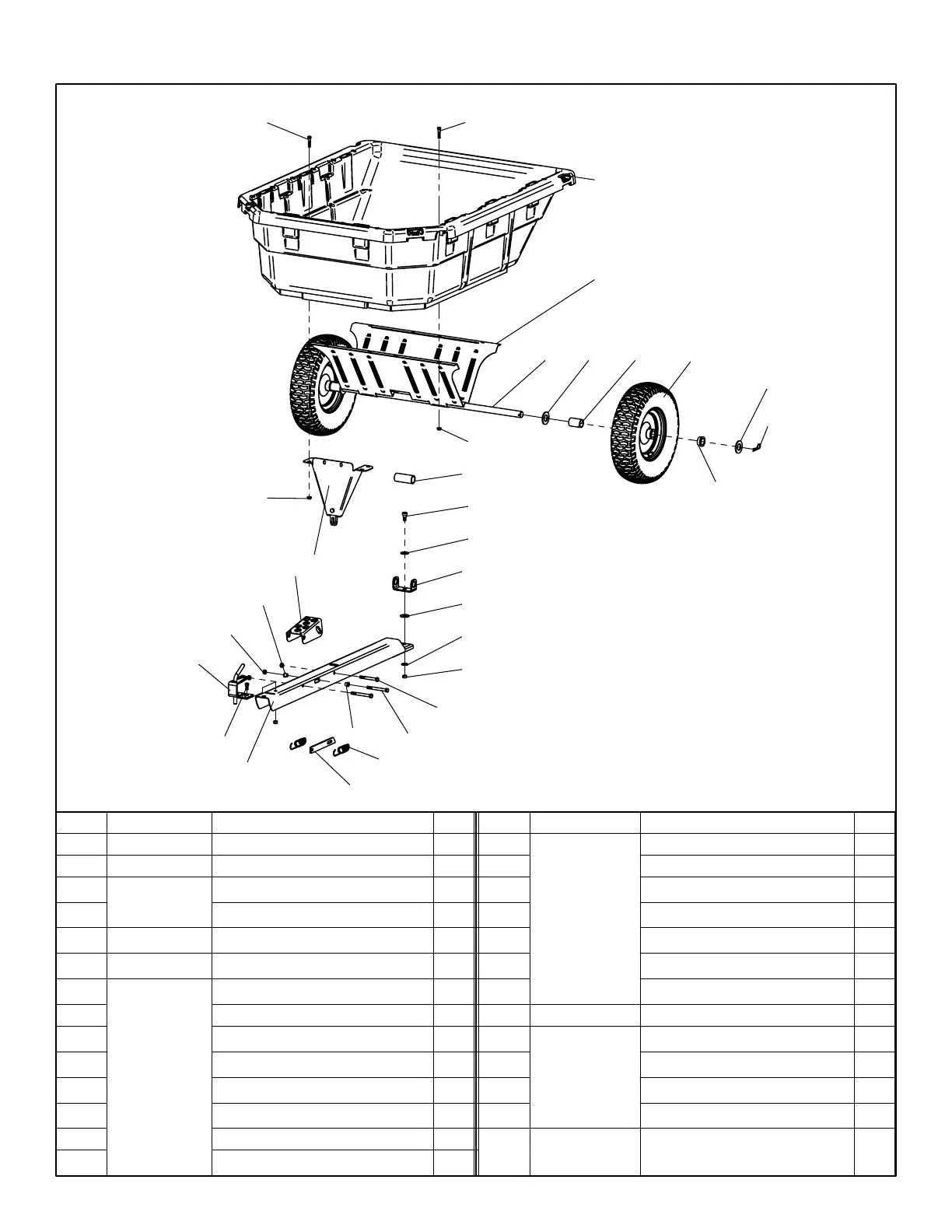

EXPLODED VIEW
9
