ASSEMBLY & INSTALLATION
NOTE: References to left, right, front and rear of the tractor are from the operator’s position, unless
otherwise stated.
• Before assembly, place the tractor on a firm, level surface, disengage the
PTO, stop the tractor engine and set the parking brake.
Assemble Mounting Brackets
1. Install 12 rubber pads (735-
05938) into adapter bracket
(789-02518) using the mounting
holes shown in Figure 3.
NOTE: Check the bumper pads after
each season for excessive wear and
replace as necessary.
Install Bracket Assembly
on Tractor
NOTE: When assembling this mounting assembly,
it is best to not fully tighten the bracket at this
time. This will facilitate the mounting process in
later steps, which will then require fully
tightening this mounting assembly.
Install mounting bracket assembly on tractor as follows:
1. Remove hitch bracket.
2. For ZT1 installation only:
Place two flat washers
(736-0117) between
hitch bracket adapter
(789-02298) and the hitch
bracket removed in Step 1.
3. Install bracket assembly to
the tractor’s lower frame
with two capscrews (710-
0376). See Figure 4.
4. Hang adapter bracket
assembly onto upper frame
square tube and connect to
hitch bracket adapter (789-
02298) with two screws
(710-0376), two cup
washers (736-0242) ,and
two flange lock nuts (710-
04063). See Figure 5.
NOTE: Make sure that the adapter
bracket is seated firmly on the
upper tube frame.
5. Tighten all of the hardware
installed at this time.
Install Vertical Support
NOTE: This manual covers various bagger configurations. Please follow the instructions
applicable to your machine.
1. Using Figure 6 and the chart below, locate the correct mounting hole location
on the mounting bracket for your tractor:
Model No. Description Position
19A70054* 42”/46” Double Bagger 4
19A70055* 50”/54” Double Bagger 3
NOTE: Hole position 2 is
currently not used.
2. Install the vertical support
bracket onto the mounting
assembly on the tractor
by hooking it over the
mounting assembly as
shown in Figure 7.
3. Secure the upright
support bracket to the
mounting assembly using
a hex bolt (710-0376)
and flange lock nut (712-
04063) from hardware
pack 689-01419. See
Figure 7.
Install Hanger Assembly
1. Install and secure the
hanger assembly onto the
upright support bracket
using two carriage bolts
(710-0276), two cup
washers (736-0242) and
two flange lock nuts (712-
04063) from hardware
pack 689-01419. See
Figure 8.
NOTE: The carriage bolts (710-0276),
from hardware pack 689-01419, go in the
top hole with the nut facing the engine.
The hex bolt (710-0376), from the same
hardware pack, goes in the bottom hole.
Install Top Bagger
Components
With the mounting brackets
assembled and in place on the
tractor, follow these steps to
assemble the remaining bagger
components.
1. If not already installed
by the factory, snap
the vent cover into the
holes found on the chute
support assembly.

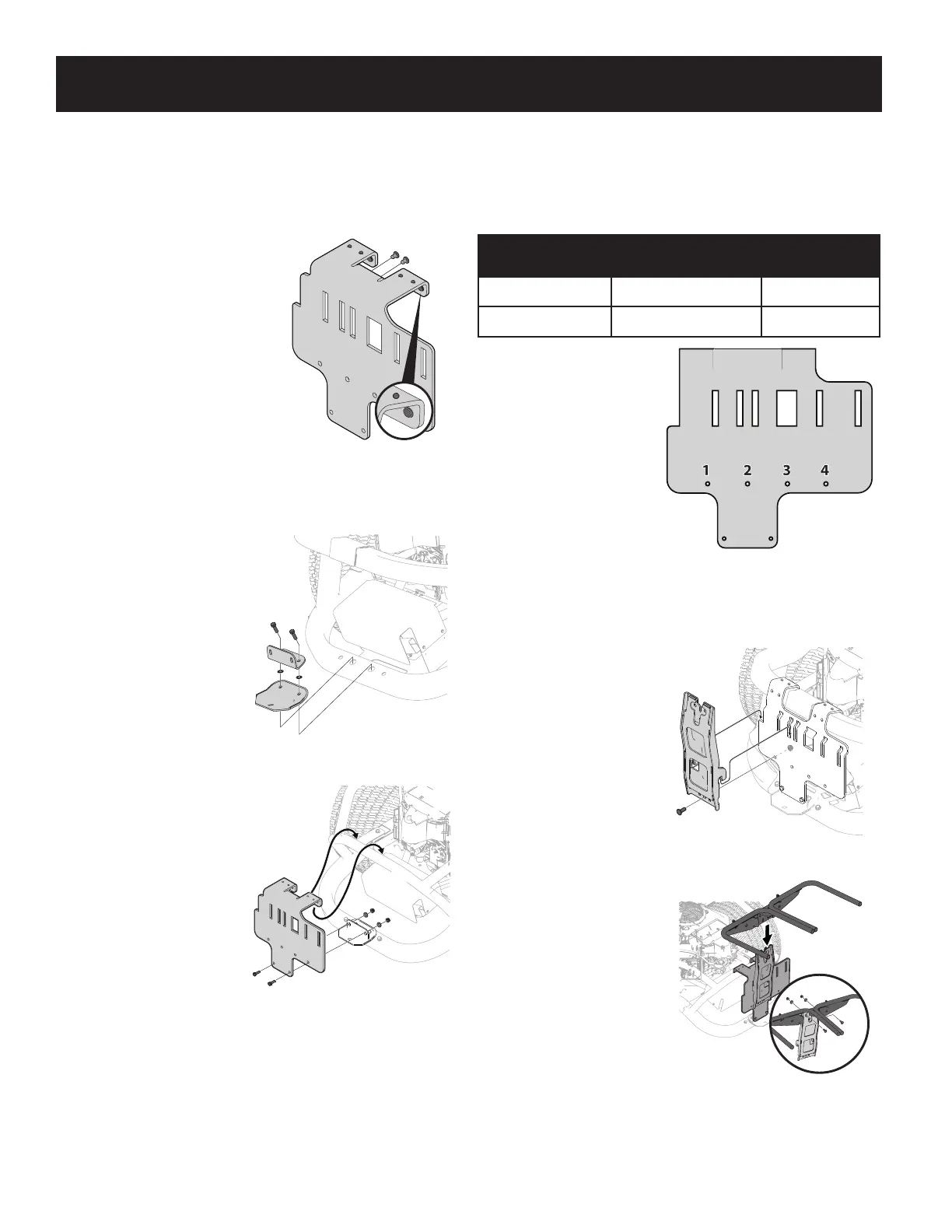

Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
