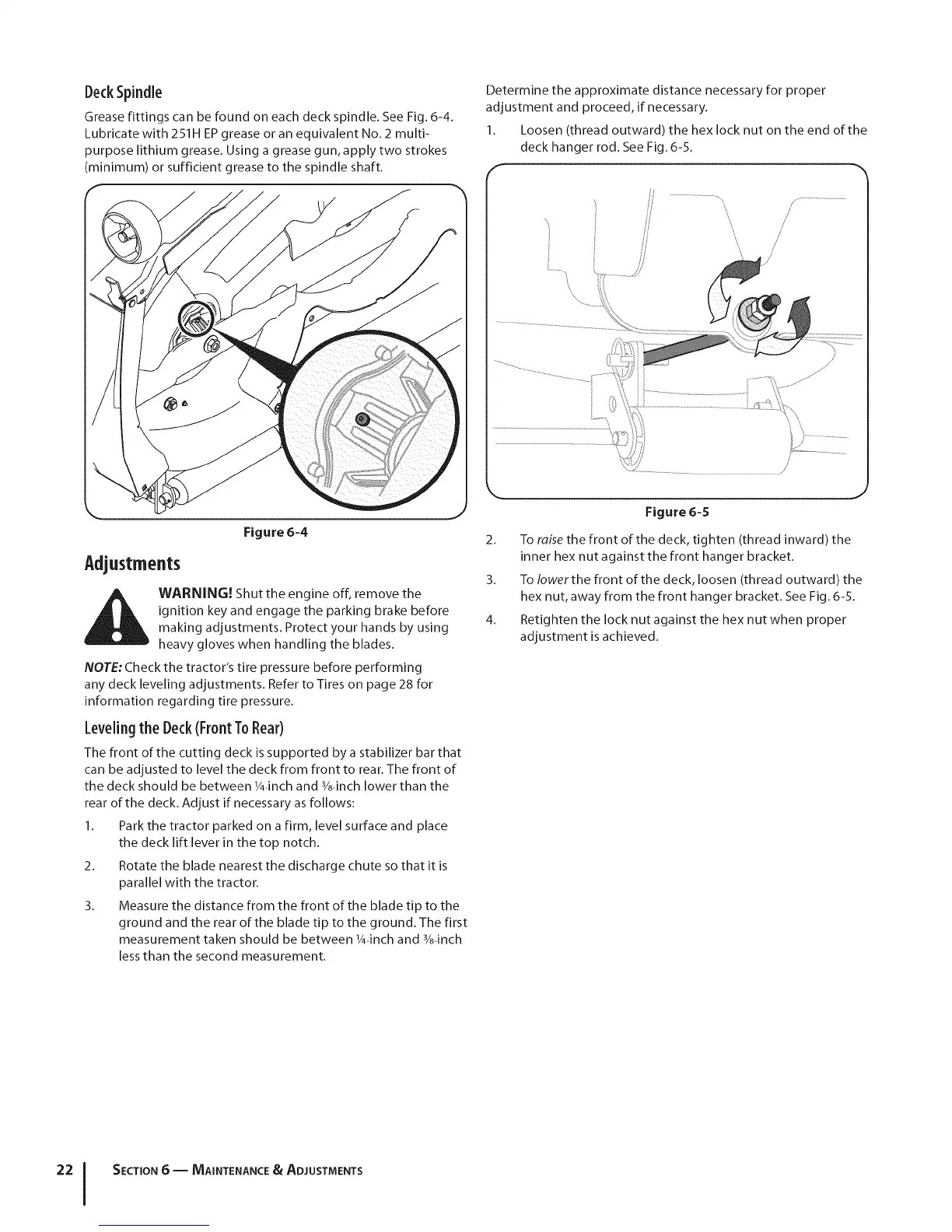

DeckSpindle
Grease fittings can be found on each deck spindle. See Fig. 6-4.
Lubricate with 251H EP grease or an equivalent No. 2 multi-
purpose lithium grease. Using a grease gun, apply two strokes
(minimum) or sufficient grease to the spindle shaft.
Figure 6-4
Adjustments
WARNING! Shut the engine off, remove the
ignition key and engage the parking brake before
making adjustments. Protect your hands by using
heavy gloves when handling the blades.
NOTE: Check the tractor's tire pressure before performing
any deck leveling adjustments. Refer to Tires on page 28 for
information regarding tire pressure.
Levelingthe Deck(FrontToRear)
The front of the cutting deck is supported by a stabilizer bar that
can be adjusted to level the deck from front to rear. The front of
the deck should be between 1/4-inch and %-inch lower than the
rear of the deck. Adjust if necessary as follows:
1. Park the tractor parked on a firm, level surface and place
the deck lift lever in the top notch.
2. Rotate the blade nearest the discharge chute so that it is
parallel with the tractor.
3. Measure the distance from the front of the blade tip to the
ground and the rear of the blade tip to the ground. The first
measurement taken should be between 1A-inch and %-inch
less than the second measurement.
Determine the approximate distance necessary for proper
adjustment and )roceed, if necessary.
Loosen (thread outward) the hex lock nut on the end of the
deck hanger rod. See Fig. 6-5.
f
/.................................
/
k_ j
Figure 6-5
2. To raise the front of the deck, tighten (thread inward) the
inner hex nut against the front hanger bracket.
3. To Iowerthe front of the deck, loosen (thread outward) the
hex nut, away from the front hanger bracket. See Fig. 6-5.
4. Retighten the lock nut against the hex nut when proper
adjustment is achieved.
SECTION 6 -- MAINTENANCE & ADJUSTMENTS
