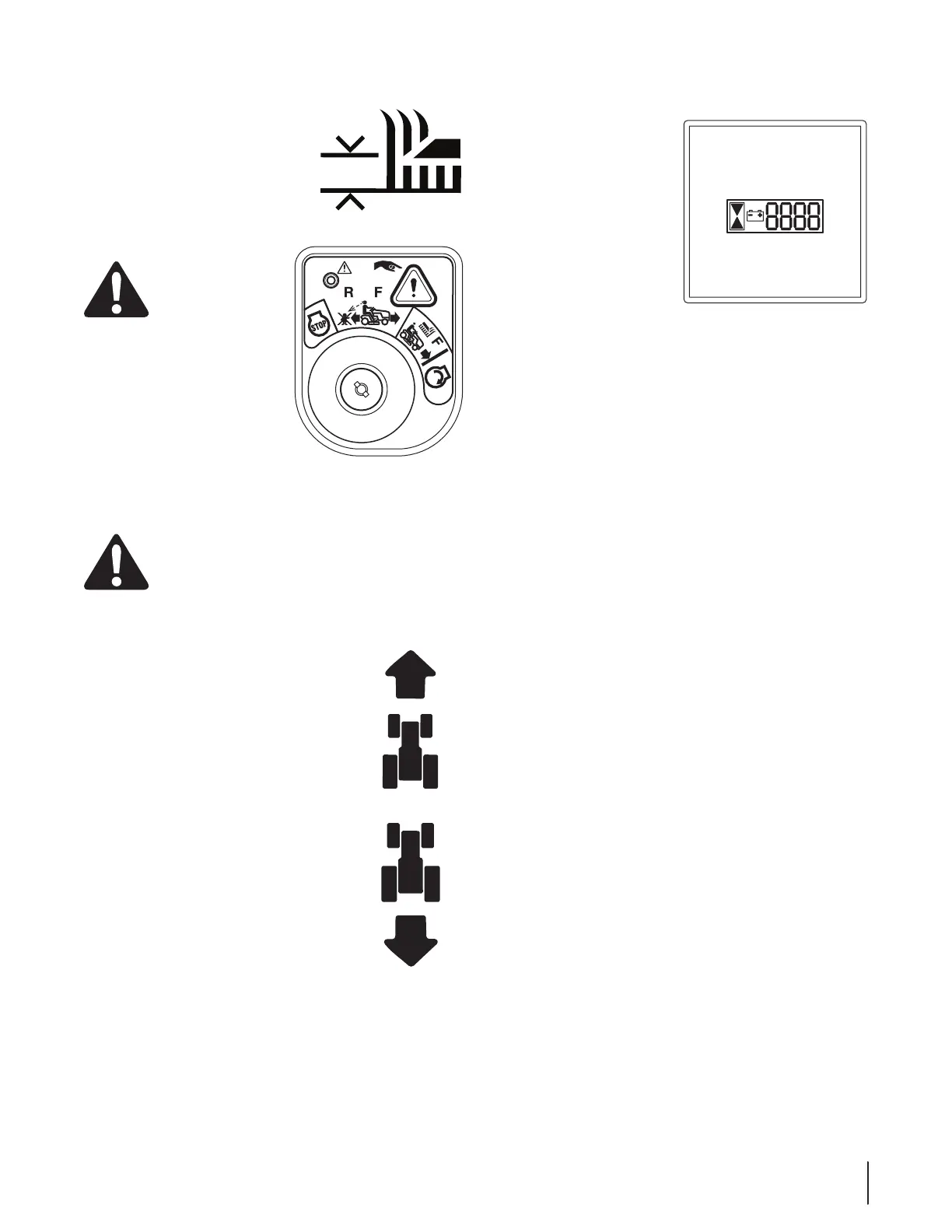

Deck Lift Lever
Found on your tractor’s right fender,
the deck lift lever is used to change
the height of the cutting deck. To
use, move the lever to the left, then
place in the notch best suited for your
application.
Ignition Switch Module
WARNING! Never
leave a running
machine unattended.
Always disengage
PTO, set parking brake, stop
engine and remove key to prevent
unintended starting.
To start the engine, insert the key
into the ignition switch and turn
clockwise to the START position.
Release the key into the NORMAL
MOWING MODE position once
the engine has fired.
To stop the engine, turn the ignition key counterclockwise to the
STOP position.
CAUTION: Prior to operating the tractor, refer to
both Safety Interlock Switches and Starting The
Engine in the Operation section of this manual for
detailed instructions regarding the Ignition Switch
Module and operating the tractor in REVERSE
CAUTION MODE.
Drive Pedal
The drive pedal is located on the right side
of the tractor, along the running board. Press
the drive pedal forward to cause the tractor
to travel forward. Ground speed is also
controlled with the drive pedal. The further
forward the pedal is pivoted, the faster the
tractor will travel. The pedal will return to its
original position when it’s not pressed.
Reverse Pedal
The reverse pedal is located on the right
side of the tractor along the running board.
Ground speed is also controlled with the
reverse pedal. The further downward the
pedal is pivoted, the faster the tractor will
travel. The pedal will return to its original
position when it’s not pressed.
Cargo Net
The cargo net is located on the lower half of the dash and can be
used for storage.
LCD Service Minder & Hour Meter
When the ignition key is rotated
out of the STOP position but
not into the START position, the
LCD Service Minder and Hour
Meter will briefly disply the
battery voltage, followed by the
tractor’s accumulated hours.
NOTE: Hours of tractor
operation are recorded any time
the ignition key is rotated out of
the STOP position, regardless of
whether the engine is started.
The LCD Service Minder will remind the operator of maintenance
intervals for changing the engine oil, air filter service, low engine
and low battery warnings.
Change Oil
on the display for 7 minutes after the meter reaches 50 hours.
This oil service minder intervall will occur every 50 hours. Before
the interval expires, change the engine oil as instructed in the
Maintenance section of this Operator’s Manual.
Low Oil
the meter’s accumulated time will indicate the tractor is low on
oil. Stop the tractor immediately and check the engine oil level as
instructed in this Owner’s Manual.
Low Battery
At startup, the battery voltage is briefly displayed then changes
battery is in need of a charge or the engine’s charging system
is not generating sufficient amperage. Charge the battery as
instructed in the Service section of this manual or have the
charging system checked by your local service dealer.
Air Filter Service
minutes after the meter reachges 25 hours. This air filter service
minder time interval will be every 25 hours. On intervalls that are
common with oil service, the oil message will be diplayed first
followed by the air filter message.
13Section 4 — controlS and FeatureS
