38
WARNING
The exhaust system is HOT. To avoid personal
injury, allow the engine and exhaust system to
cool before proceeding with the following PTO
belt removal instructions.
4. Open the tractor hood and remove the forward end
of the PTO belt from the PTO clutch pulley on the
front of the engine (Refer to Figure 43).

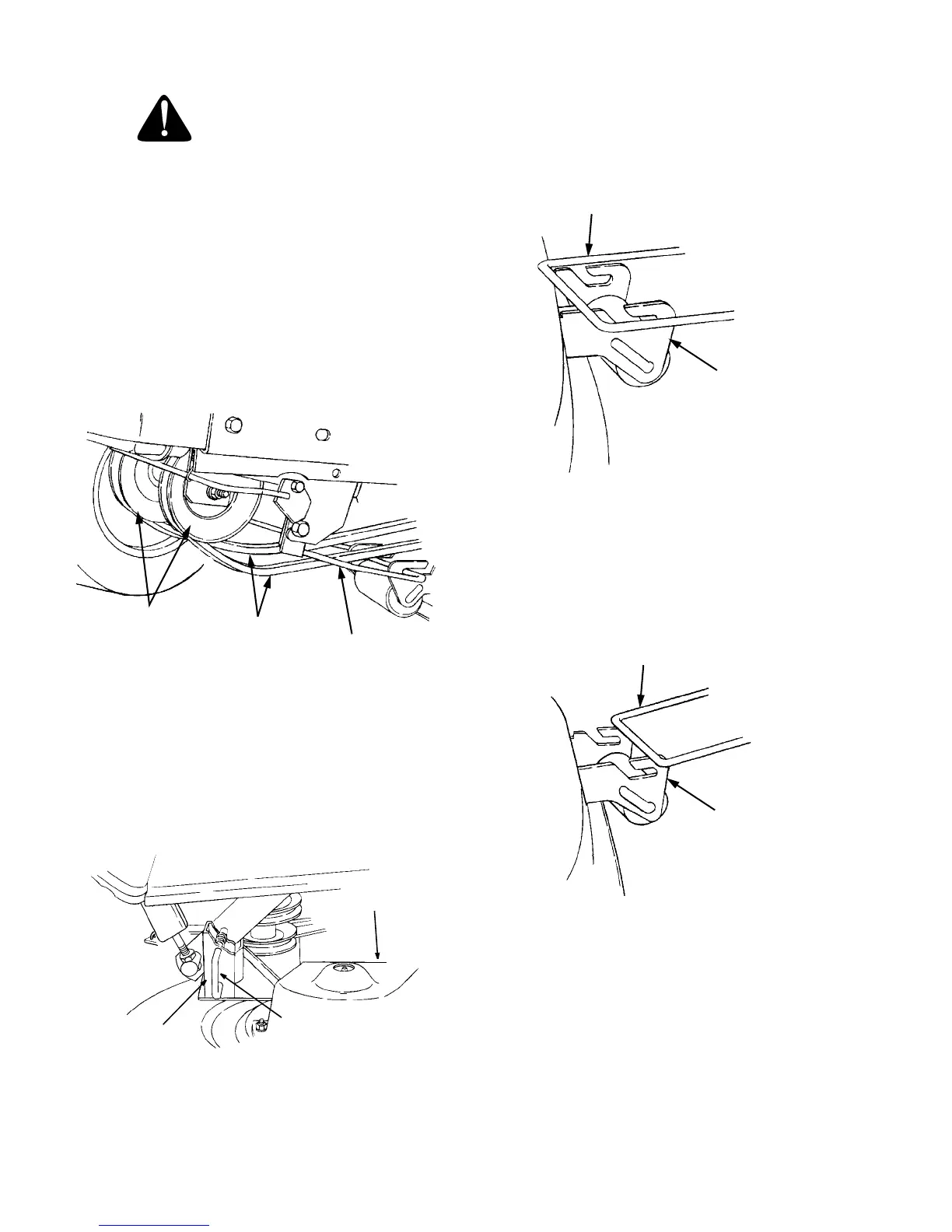

5. Pass the PTO belt downward, inside the tractor
frame, until the belt is below the two tractor front
lower pulleys and pull the belt clear of the tractor
(See Figure 44).
Figure 44
6. Pull the deck support pins outward, turn downward
and release so both spring-loaded pins are held in
the disengaged position against the outer surface
of the deck brackets (See Figure 45).
Figure 45
7. Raise the tractor implement lift handle to its
highest setting, Slide the mower deck forward, so
the front lift rod rests to the rear of, and free of, the
front roller bracket slots of the deck (See Figure
46).
Figure 46
8. Raise the front lift rod upward and slide the mower
deck rearward. Lower the front lift rod so it rests on
the front roller bracket of the deck, forward of the
slots (See Figure 47).
Figure 47
9. From the front of the tractor, push downward and
hold the tractor quick-attach rod. Pull the front lift
rod/bracket assembly forward to release the
shoulder bolts on each side of the bracket from the
left and right tractor latch receivers. Release the
tractor quick-attach rod (Refer to Figure 48).
TRACTOR FRONT
LOWER PULLEYS
PTO BELT
FRONT LIFT
ROD/BRACKET
ASSEMBLY
DECK
REAR DECK
BRACKET
DECK SUPPORT
PIN DISENGAGED
(BOTH SIDES)
FRONT LIFT ROD
FRONT
ROLLER
BRACKET
FRONT LIFT ROD
FRONT
ROLLER
BRACKET
To Next Page
