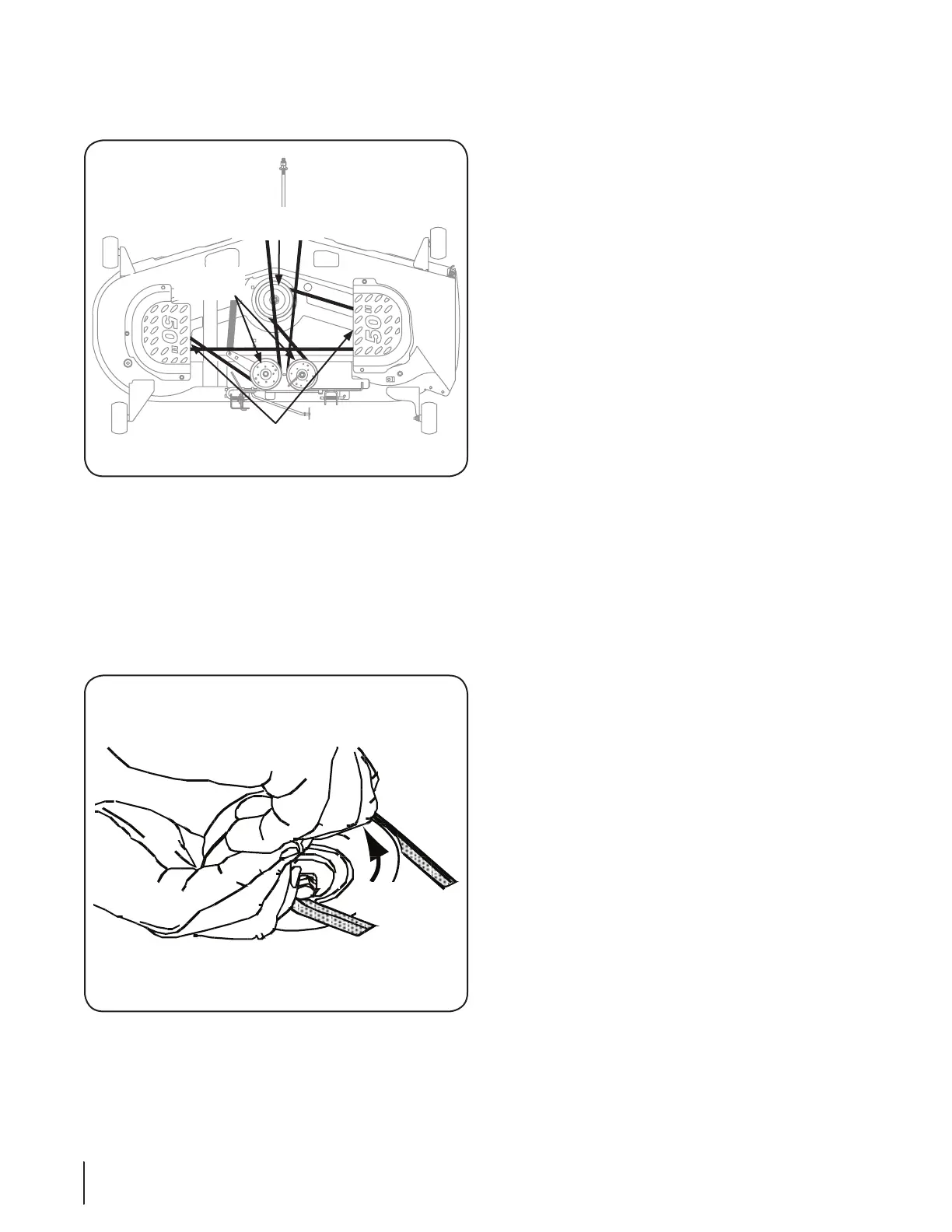

To place the new belt begin by routing the belt around the 5.
two outer spindle pulleys, then around the front spindle
pulley as shown in Fig. 7-8.
Then route the belt around the two deck idler pulleys as 6.
shown in Fig. 7-8.
Retighten the belt keeper rod loosened earlier.7.
Remount the belt guards removed earlier8.
Reinstall the deck making sure the belt remains routed 9.
around the pulleys as instructed.
While holding the belt and pulley together, rotate the
pulley to the left (See Fig. 7-9). Continue holding and
rotating the pulley and belt until the belt is fully rolled into
Outer Spindle
Pulleys
Front Spindle
Pulley
Deck Idler
Pulleys
Figure 7-8
Figure 7-9
28 se c t i O n 7— se r v i c e
