8.7. The track at the rear has also increased. Extra
brackets have been added to the frame to step
the hydro motors out. See Figure 8.7.
8.8. To enable the brake linkage to reach the reposi-
tioned hydro motor, the rear brake arm assem-
blies have been doubled-up on each side.
Instead of a single rear brake arm assembly per
side, two are used in tandem. See Figure 8.8.
8.9. The parking brake lever has been moved up to a
more convenient location.
8.10. A larger engine is required to power the larger
deck and heavier total weight of the mower. A
28 H.P. Generac Guardian engine is employed.
See Figure 8.10.

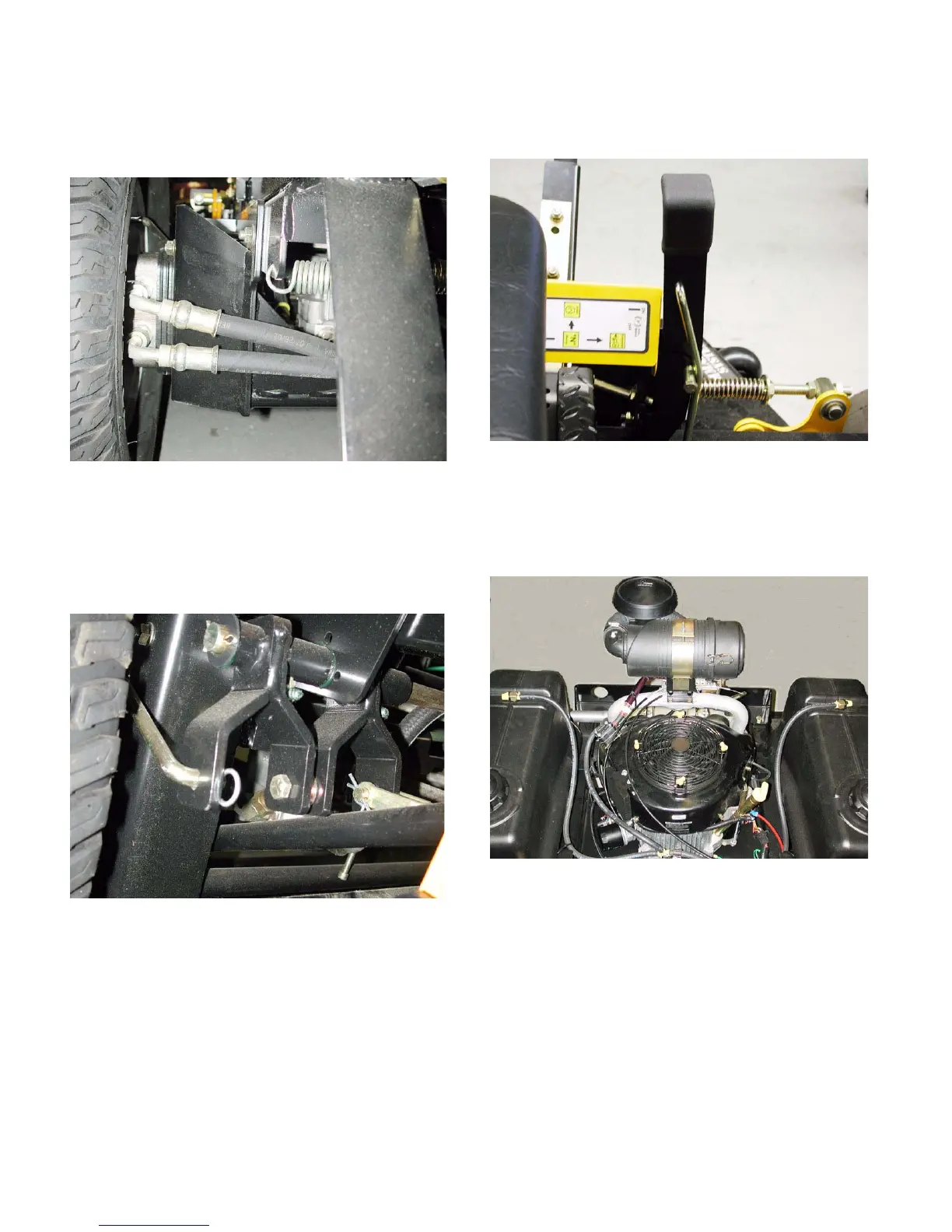

Figure 8.7
Figure 8.8
Figure 8.9
Figure 8.10
