Cub Cadet RZT 17 - TRACTOR CONTROLS AND FEATURES

9
SECTION 1: CONTROLS AND FEATURES

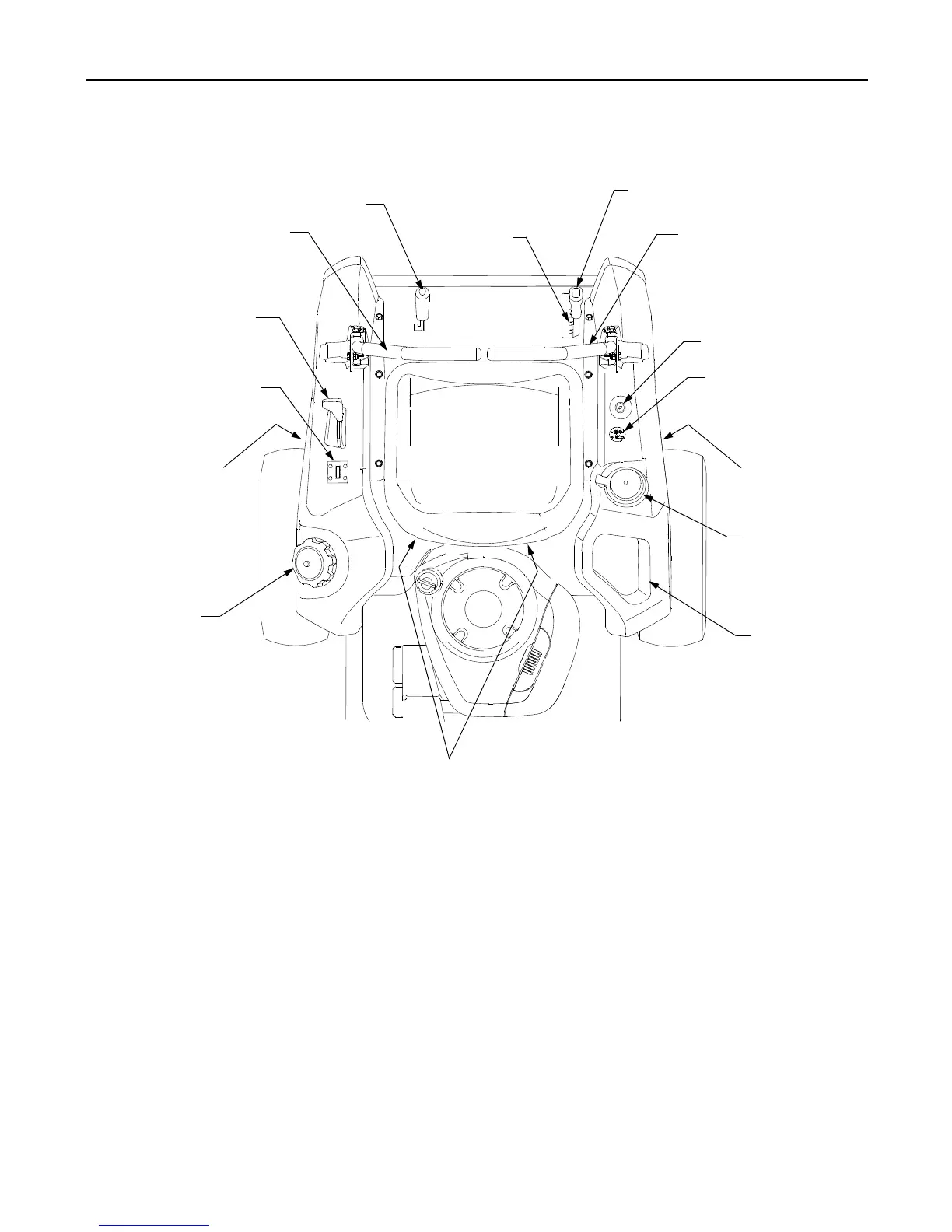

Figure 3
A
B
C
D
E
F
G
H
J
K
L
M
C
N
F
N.
M.
L.
K.
J.
A.
B.
C.
D.
E.
F.
H.Deck Height Index
RH and LH Drive Control Levers
Deck Lift Handle
Ignition Switch
PTO Switch
Transmission Bypass Rod (Not Shown)
G. Cup Holder
Storage Tray
Seat Adjustment Wing Knobs (Not Shown)
Fuel Tank Cap
Hour Meter /Indicator Panel
Throttle Control
Parking Brake Engagement Lever
