Cub Cadet S621 SS User Manual

20
Model S621 SS
27
A
A
9
13
10
14
15
7
11
8
37
26
25
4
3
6
5
34
28
5
3
35
36
30
32
38
2
39
33
38
2
31
1
12
16
24
22
19
23
20
17
21
18
Ref.
No.
Part No. Part Description

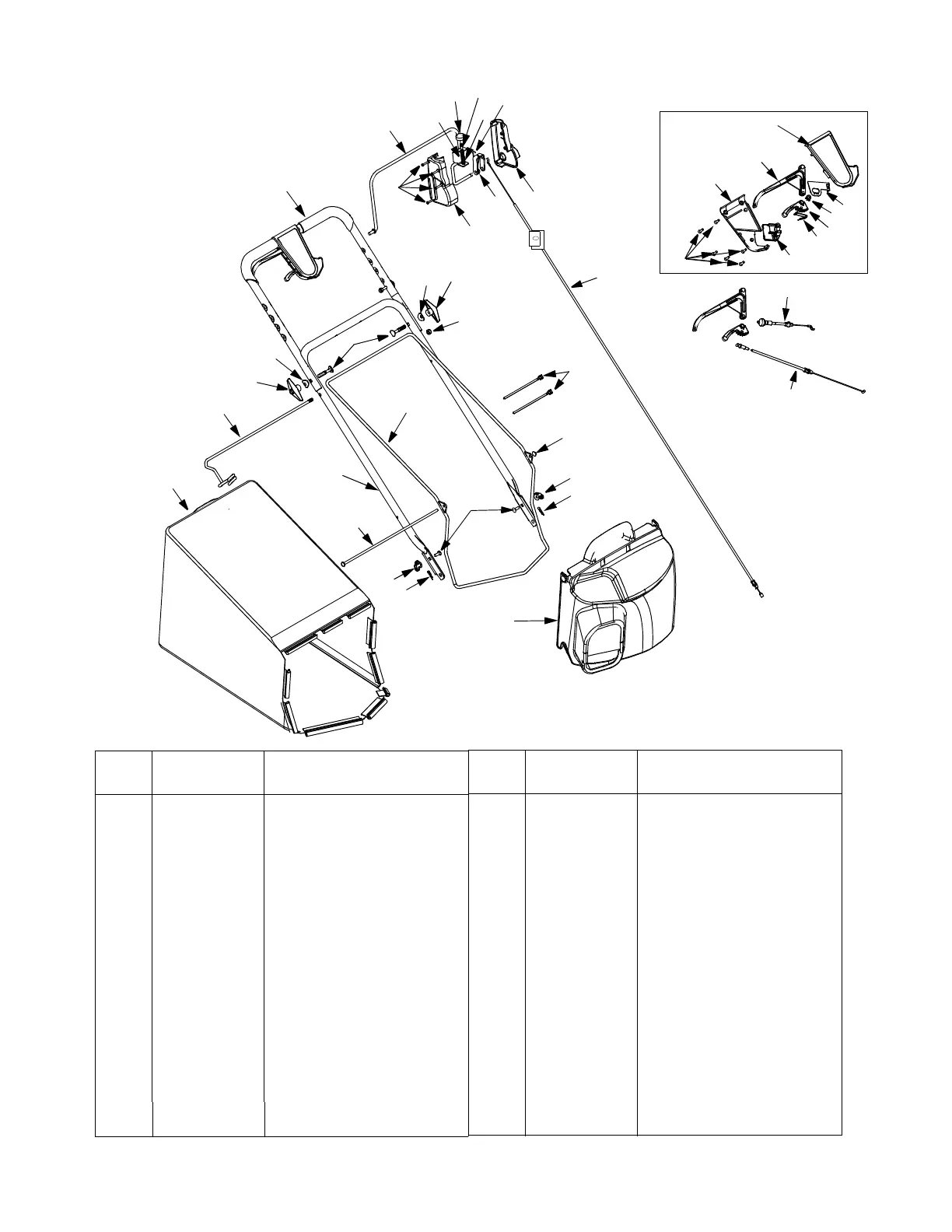

1. 710-1174 Bolt Cur. Carr. 5/16-18 x 2.0
2. 714-0104 Cotter Pin .072 x 1.12 Lg.
3. 720-0241 Knob Ass’y Wing Nut 5/16-18
4. 726-0240 Cable Tie
5. 736-0451 Wash. Sad. .320 ID x.830 OD
6. 712-0429 Hex Nut 5/16
7. 731-2532 Control Cover LH
8 731-2533 Control Cover RH
9 720-0428 Button
10 715-0168 Pin
11. 782-0156 Lever
12 710-1256 Hi-Low Screw
13. 732-1171 Compression Spring
14. 716-0209 Retention Spring
15. 732-1172 Torsion Spring
16. 731-0904A Upper Control Housing
17. 731-0924 6-Speed Shift Lever
18. 713-0397 Gear Insert
19. 710-1667A C-Sunk Tap Screw #10 x .75 L
20. 732-0627 Shift Lever Spring
21. 16864 6-Speed Rack Cable Brkt.
22. 731-0905A Lower Control Housing
23. 731-0906 Cable Mounting Cap
24. 731-0620 Control Lever
25. 746-0939 6-Speed Cable
26. 746-0711A Self-Propelled Cable
27. 647-0058 Control Handle
28. 720-0294 Foam Grip (2 Reqd.)
29. 749-1405 Upper Handle
30. 749-0907A Lower Handle
31. 631-0071 Grassbag Cover w/Label
32. 747-0939 Pivot Rod
33. 726-0106 Cap Nut
34. 747-0937 Grassbag Frame
35. 747-0940A Support Rod w/ Rope Guide
36. 664-0111 Grass Bag
37. 746-1141 Control Cable 58.25”
38. 712-0397 Wing Nut
39. 710-0703 Carriage Bolt 1/4-20
