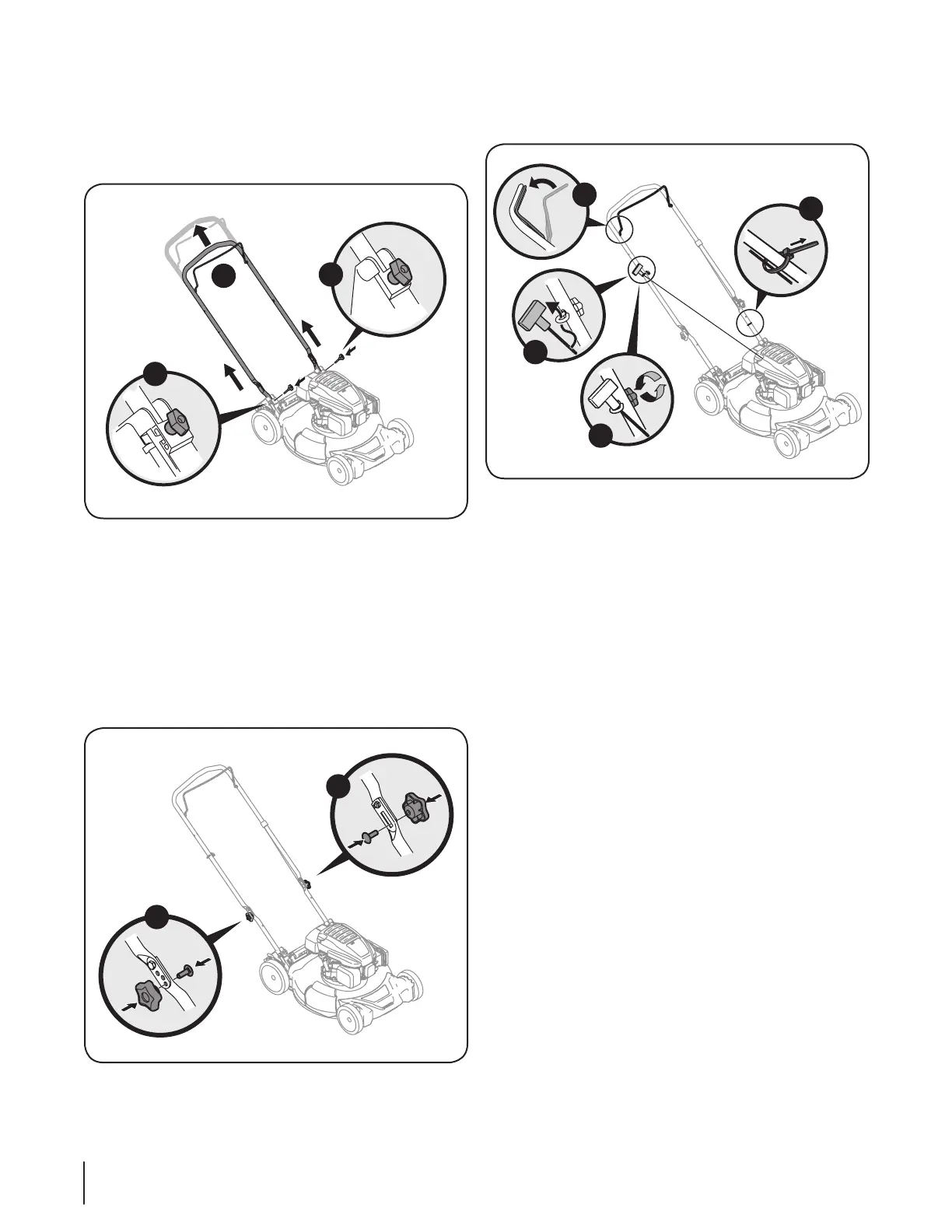

10 Section 3 — ASSembly & Set-Up
4. The rope guide is attached to the right side of the upper
handle. Loosen the wing knob which secures the rope
guide. See Figure 3-6.
A
B
C
D
Figure 3-6
a. Hold blade control against upper handle.
b. Slowly pull starter rope handle from engine and slip
starter rope into the rope guide. See Figure 3-6.
c. Tighten rope guide wing knob.
d. Use cable tie(s) to secure cable(s) to lower handle.
Grass Catcher
1. Follow steps below to assemble the grass catcher (if
needed). Make certain bag is turned right side out before
assembling (warning label will be on the outside).
a. Place bag over frame so that its black plastic side is
at the bottom.
b. Slip plastic channel of grass bag over hooks on the
frame. See Figure 3-7.
3. Follow the steps below to complete handle assembly:
a. Pull upward on the handle approximately 8 inches
until holes in lower handle (shown in Figure 3-3 deck
cutaway) line up with holes in handle bracket. See
Figure 3-4.
A
B
B
Figure 3-4
NOTE: When pulling upward on handle, make sure to not
pull handle all the way out.
b. Insert the T-bolts removed earlier through the
handle brackets and lower handle and tighten
securely to secure the handle in place. See Figure
3-4.
c. Reattach wing nuts and carriage bolts removed
earlier into lower holes of handle as shown in Figure
3-5.
C
C
Figure 3-5
