Assembly & Set-Up
3
9
Contents of Carton
• One Lawn Mower • One Grass Catcher • One Bottle of Oil
• One Lawn Mower Operator’s Manual • One Engine Operator’s Manual • One Side Discharge Chute
• One Fuse†
b
Figure 3-2
2. Remove the T-bolts from the handle brackets as shown in
Figure 3-3.
Figure 3-3
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up with gasoline and oil as instructed in the accompanying
engine manual BEFORE operating your mower.
Handle
1. Remove any packing material which may be between
upper and lower handles.

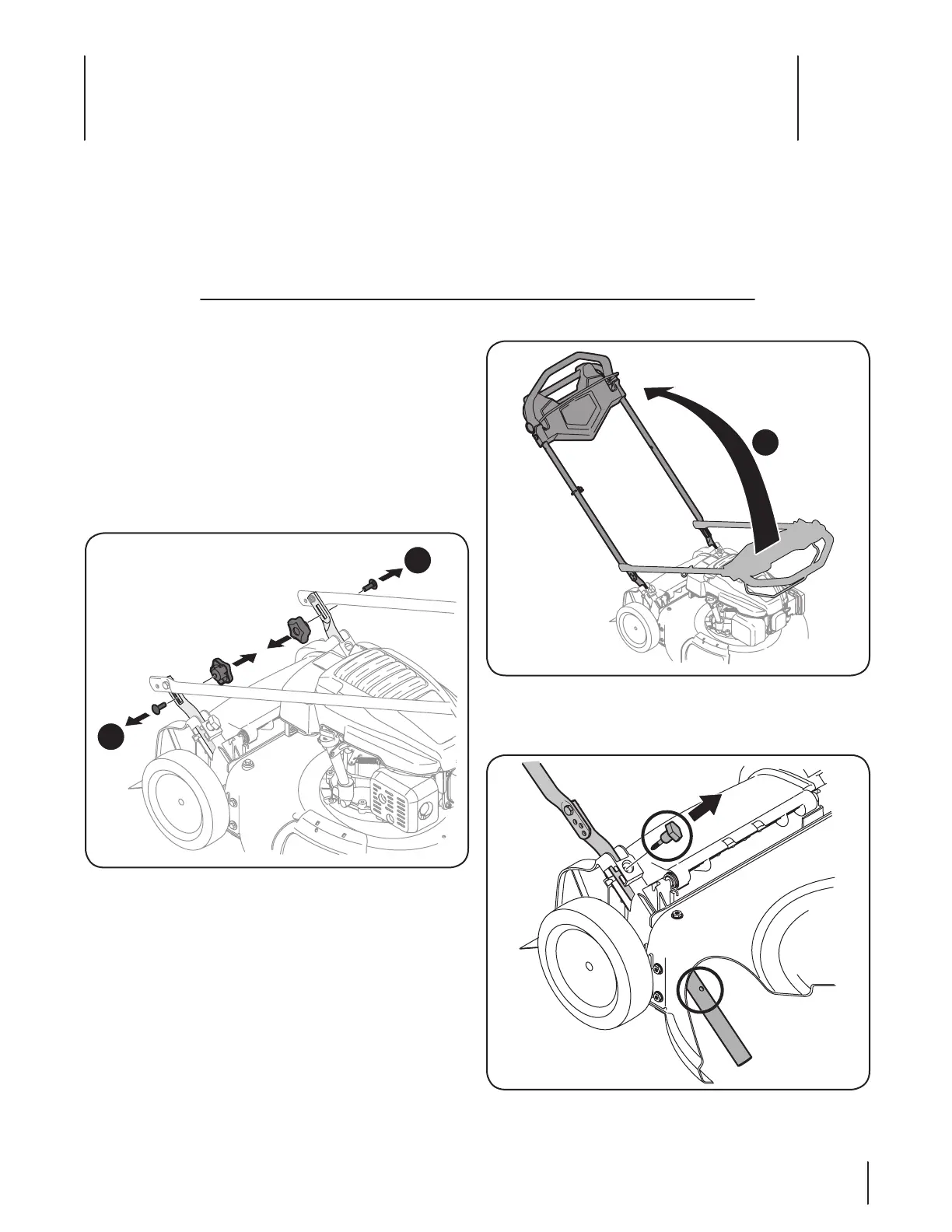

a. Remove star knobs and carriage bolts from handle
as shown in Figure 3-1. Do not loosen or remove
adjacent hex head screws.
A
A
Figure 3-1
b. While stabilizing mower so it doesn’t move, pivot
upper handle up as shown in Figure 3-2. Do not
crimp cables while lifting the handle up and make
sure they go on the outside of the handle.
† If Equipped
