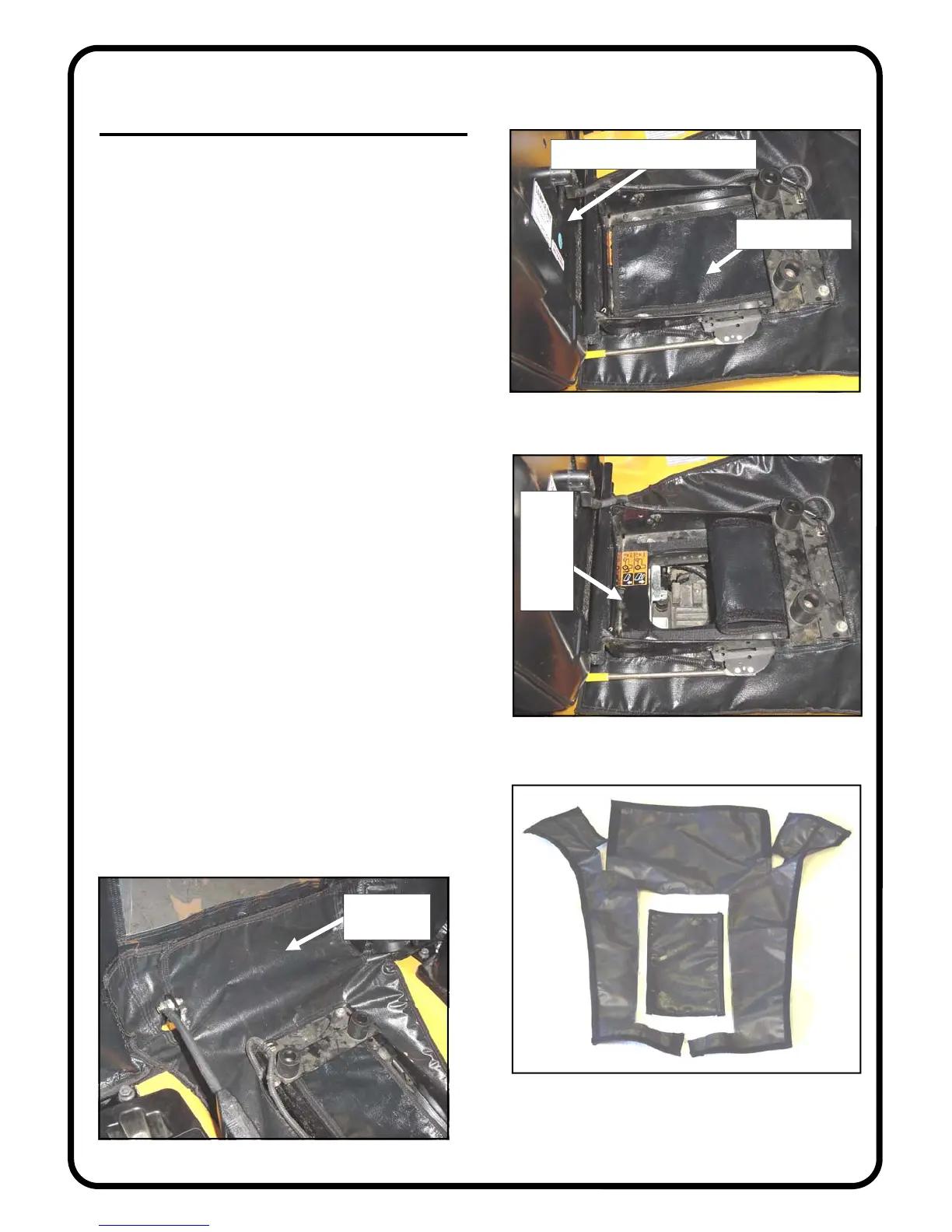

Rev. -, p. 11 of 19
Fig. 13.2 (view from left side of tractor)
do not
apply
hook
PSA
velcro
here
seat shown tilted up 90 degrees
rectangular filler
Fig. 13.1 (view from left side of tractor)
Fig. 13.3.1 (view from right side of tractor w/ seat up)
large under-
seat filler
13. VINYL FILLERS (qty.: 4)
13.1 Per fig. 13.1, raise the seat and install the smaller
of the two rectangular vinyl fillers as shown. Note: the
slightly larger rectangular filler is for the air intake
shield.
13.2 Fig. 13.2 shows the filler temporarily peeled back
to show the application of the narrow 5/8” wide PSA
(pressure sensitive adhesive) hook velcro. Only three (3)
edges of the rectangle will receive mating velcro. As
shown, do not install the velcro underneath the forward
most edge of the filler so the decal will not be obstructed
and this will allow easier grasping and opening of the
filler for servicing. Note: make sure the surfaces of the
tractor are clean, dry, and at room temperature for best
adhesion of the velcro.
13.3 Per figures 13.3 through 13.3.4, install the larger
underseat filler. Photos continued on the next page. Dry
fit the filler in place to determine where all the flaps fit
best then install the narrow 5/8” wide PSA hook velcro
onto the mating velcro on the filler. Peel back the protec-
tive strip and adhere on to the tractor to suit. Reminder:
make sure the surfaces of the tractor are clean, dry, and at
room temperature for best adhesion of the velcro.
Fig. 13.3 (underseat vinyl fillers)
