Rev. -, p. 12 of 19

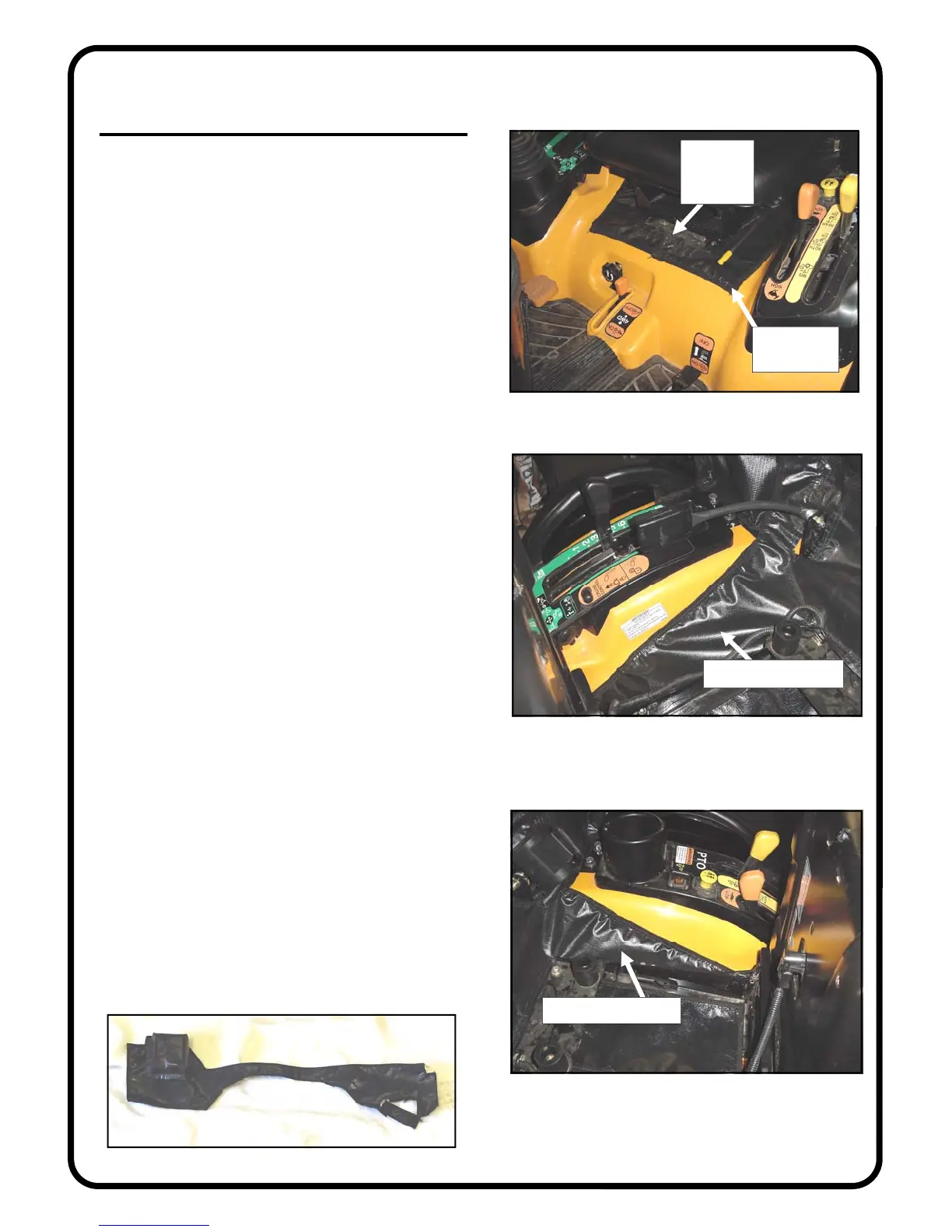

Fig. 13.3.3 (view from left side of tractor)
large under-
seat filler
Fig. 13.3.2 (view from left side of tractor)
13. VINYL FILLERS (cont’d.)
13.4 Install the filler to suit. Note: the narrow front por-
tion pointed out in fig. 13.3.2 has mating velcro strips for
connection onto each other for closure. Note: the rear
portion of this filler will either connect to the bottom of a
soft rear curtain or an optional hard rear panel as the in-
stallation continues.
13.5 Per fig. 13.5 and the photos on the next page, in-
stall this vinyl filler shown to the very bottom of the air
intake shield.
Fig. 13.3.4 (view from right side of tractor)
large underseat filler
large underseat filler
velcro the
left onto
the right
Fig. 13.5 (lower filler for air intake shield)
To Next Page
