Rev. -, p. 8 of 19

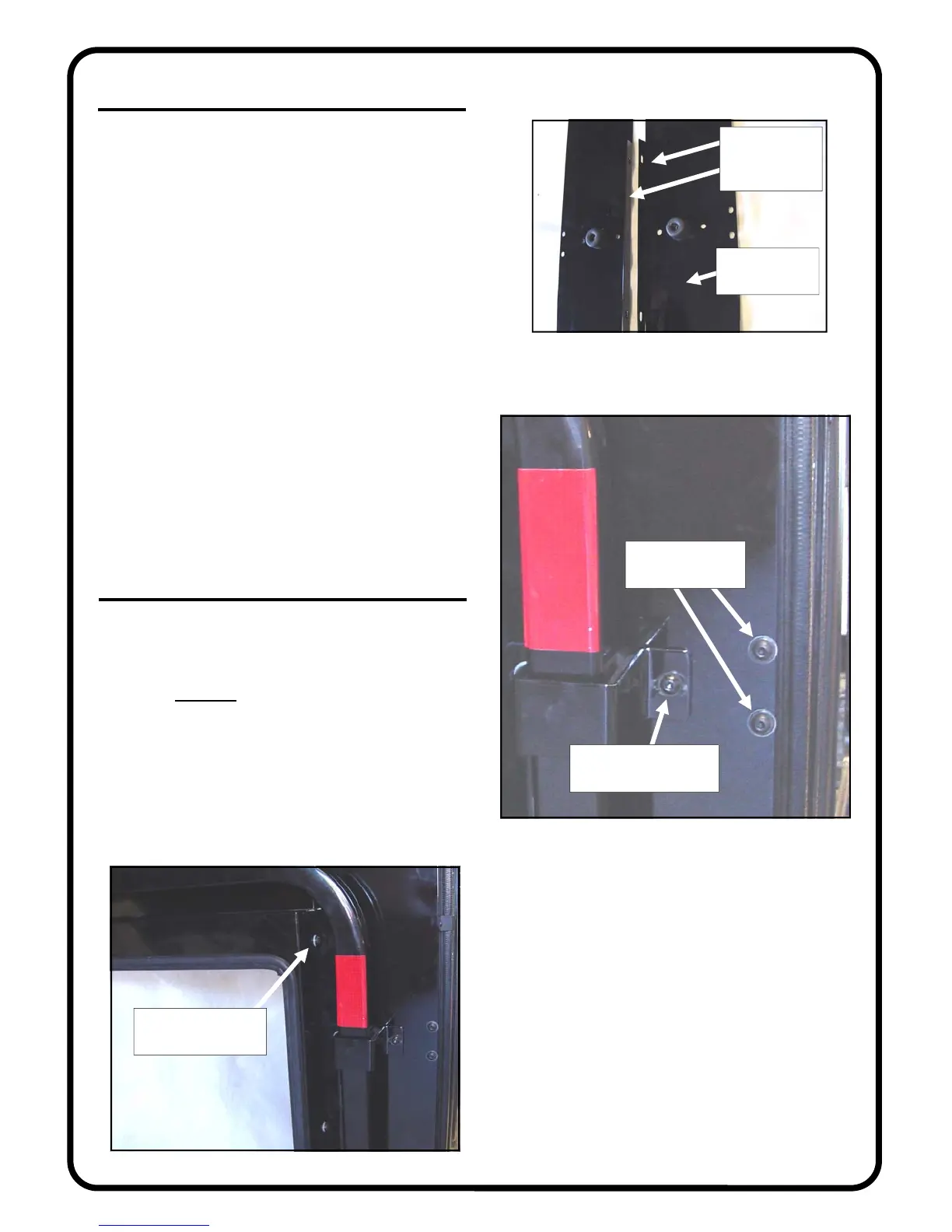

Fig. 7.1 (rear legs)
bent flanges
are shown
up in this view
this is the right
side rear leg
Fig. 7.2 (view from right rear side)
step 7.2
(side frame bolts)
step 7.3
(roll bar bracket bolts)
Fig. 8.1 (view from right rear side of tractor)
head of bolt, plastic
and steel washers
7. OPTIONAL REAR LEGS
7.1 Per fig. 7.1, install the supplied rubber vibration
mount to the rear leg using the following hardware: 1/4-
20 x 1” long button head bolt, one steel washer, and one
locknut. The head of the bolt is to be inside the recess in
the rubber. The washer is to be used on the locknut side.
The vibration mount is to be on the same side as the bent
flange as shown. Repeat for the other rear leg. Tighten
these bolts.
7.2 Per fig. 7.2, install the right side rear leg (see fig–
ure 7.1) to the back of the side frame oriented so the rub-
ber vibration mount is up against the front face of the
ROPS tubing and the long bent flange is inboard and
pointing towards the rear. Use the following hardware
per side: six 5/16-18 x 3/4” long button head bolts, six
plastic washers, and six steel washers. These thread into
factory installed threaded inserts. Leave bolts loose. Re-
peat for opposite side.
7.3 Per fig. 7.2, attach the roll bar bracket to the rear
leg using the following hardware per side: two 5/16-18 x
1” long button head bolts, two plastic washers, four steel
washers, and two locknuts. The heads of the bolts to be
outboard towards the rear of the tractor. Leave bolts
loose. Repeat for opposite side.
8. OPTIONAL HARD REAR PANEL
8.1 Per fig. 8.1, attach the hard rear panel to the rear
legs oriented so the large window is down and the upper
bent flange is pointing towards the front of the tractor.
Position the hard rear panel so the left and right bent
flanges are outboard
of the rear leg bent flanges. Use the
following hardware per side: three 5/16-18 x 3/4” long
button head bolts, 6 steel washers, 3 plastic washers, and
3 locknuts. Locknuts to be on the inside surface. Repeat
for opposite side. Leave bolts loose.
