Cub Cadet SLT1550

IdlerPulley

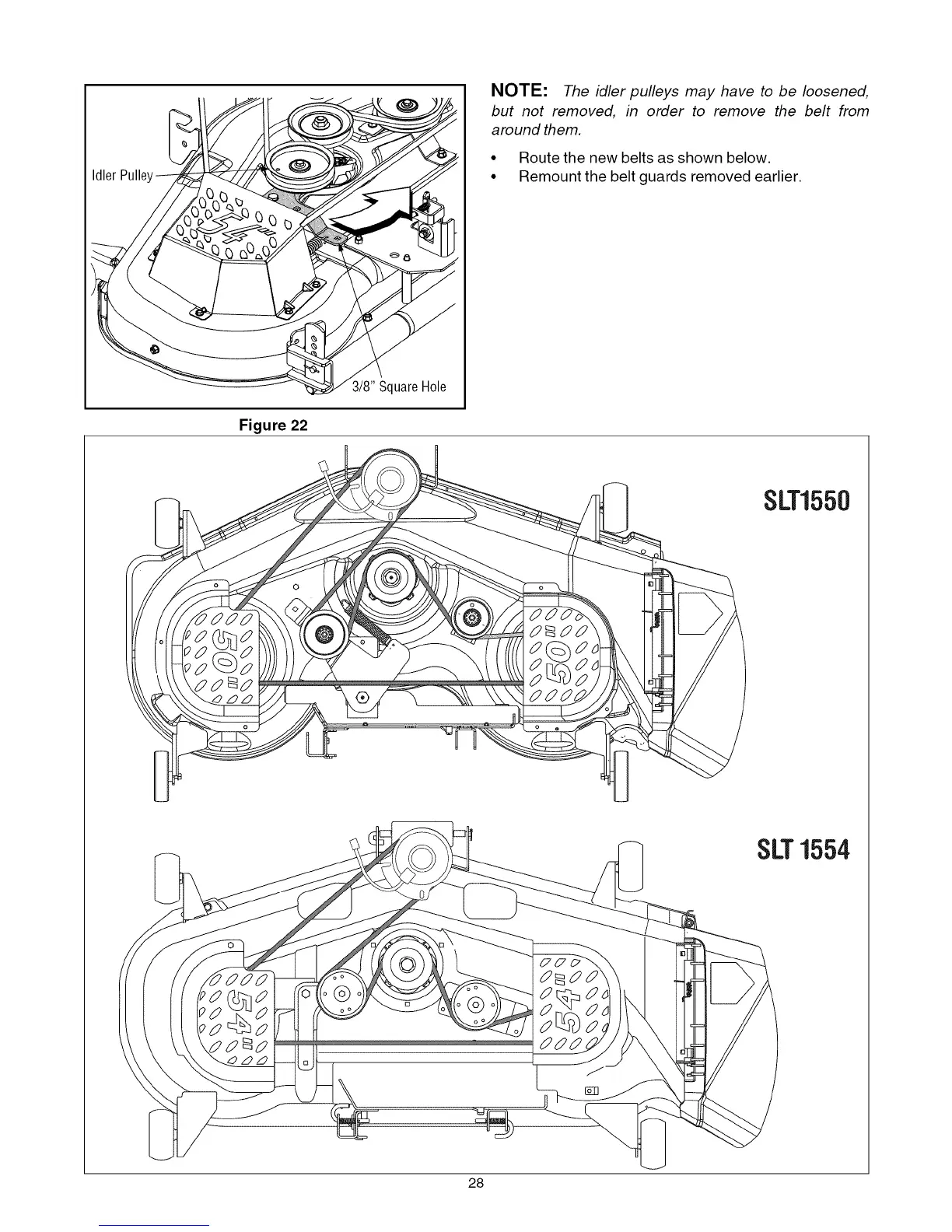

Figure 22
3/8" Square Hole
NOTE: The idler pulleys may have to be loosened,
but not removed, in order to remove the belt from
around them.
• Route the new belts as shown below.
• Remount the belt guards removed earlier.
SLT1550
SLT1554
28
